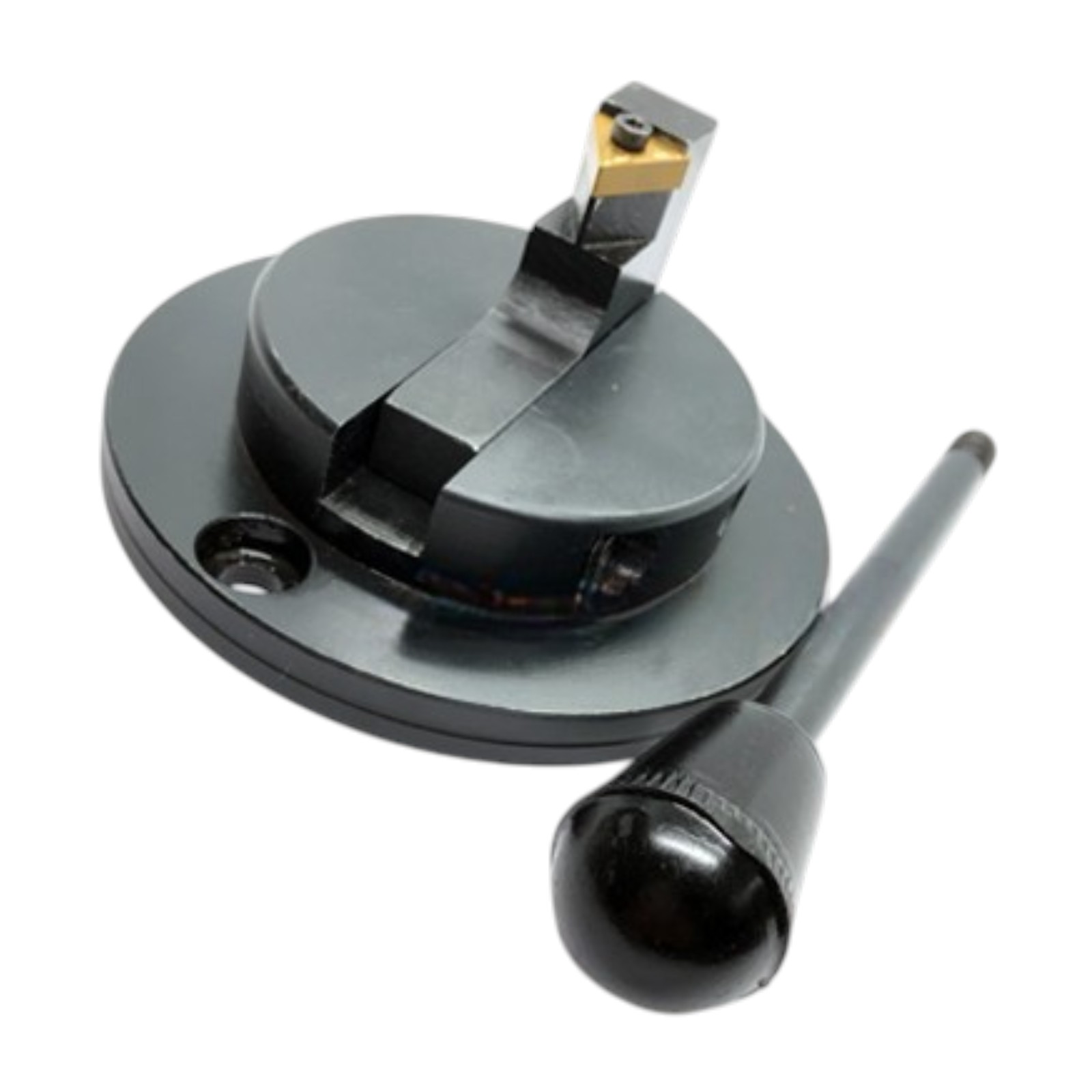

Ball Turning Attachment

Ball Turning Attachment

• It is Designed for Lathes have Center Height 3-1/2″
• This fits straight onto the cross slide of your lathe machine for Quick Turning of Cones and Balls.
• Comes with a 1 Indexable TNMG16 Insert for best turning finish and results.
• Maximum Ball Diameter possible is 38mm
• The Head can be adjusted for different Ball Sizes
• For Myford Seven Series lathes, including ML7 and Super 7.

• Using a ball turning attachment

  It is an easy way of making a round shape. Its main limitation is there is a very distinct limit as to the diameter of the work piece as well as the angle of the surface that can be made. It is really just a mechanism that cause the cutting edge to follow a circular path which is the outside of the ball being cut.There are two different ways this can be done. The cutting edge can turn in the horizontal plane or it can turn in a vertical plane lying along the axis of the lathe..
