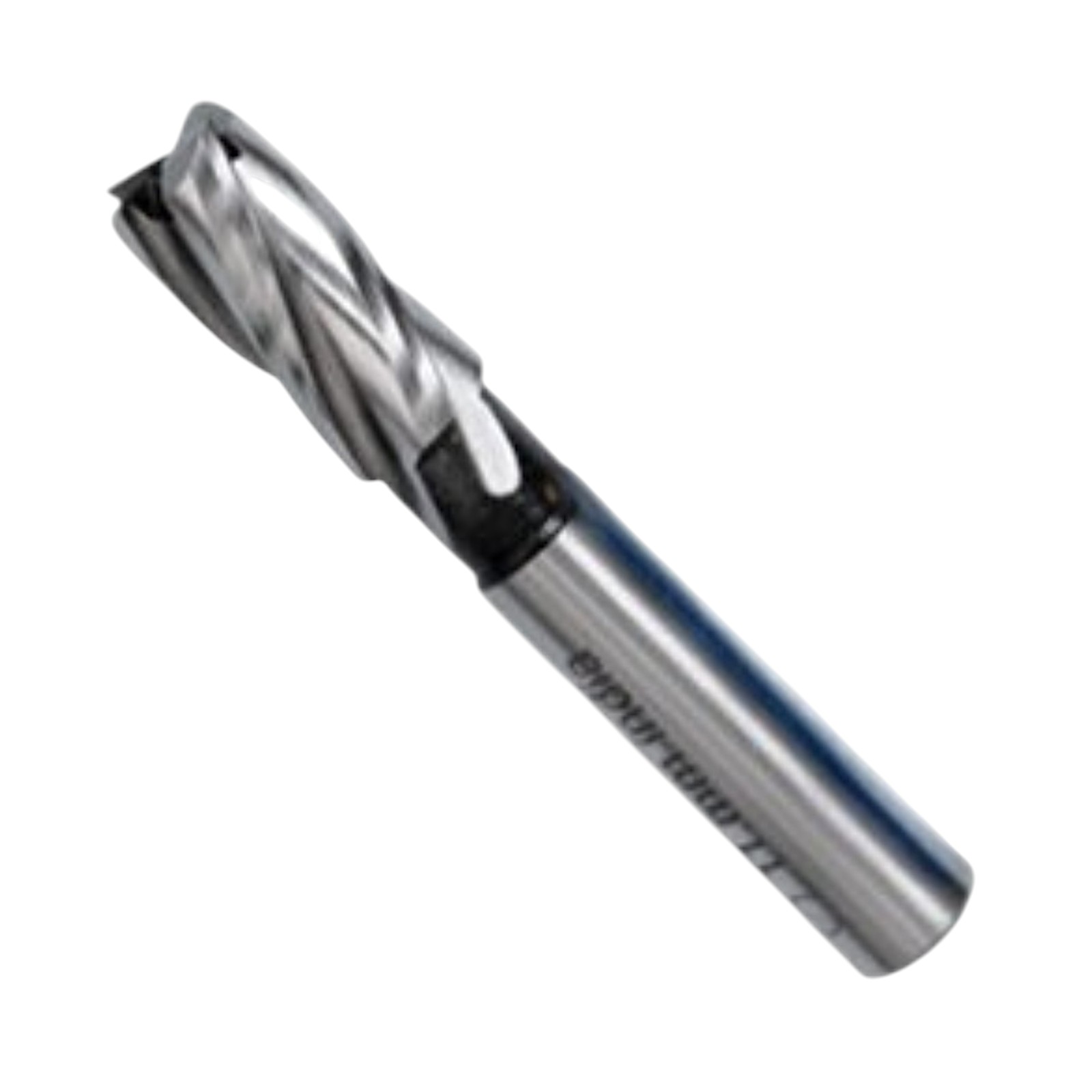

End Mill Cutters – Single Ended (Multiples Flutes)
Description
End mills use?
End mills (single ended-multiple flutes) is a type of milling cutter , a cutting tool used in industrial milling operations.
While a drill bit can cut in only axial diretion,a milling bit can cut generally in all the directions though some cannot cut axially.End Mill cutters cut material on both the periphery and end simultaneously creating stress since the tool is held only at the spindle.
Whether the job requires an end milling cutting to the center or non center cutting,we have tools in extensive range of sizes. Milling bit are used in Milling applications such as profile milling,tracer milling,face milling ,plunging. r
Simran tools international has been providing specialty HSS end mills and cutting tools to the metalworking industry around the globe .
Product specification
- Multiple Flutes (4,6 & 8).
- End Mill Cutters (Single End) made from High Speed Steel (M2).
- With Centre cutting and Without Centre cutting.
- Also available in M. M. Sizes.
- Also Available in The Material H.S.S M35 (5% Cobalt)
& H.S.S. M42 (8% Cobalt)
| ITEM NO. | SIZE | SHANK DIA. | FLUTE LENGTH | OVERALL LENGTH |
|---|---|---|---|---|
| SMC-2141 | 1/8" | 3/8" | 3/8" | 3-1/16" |
| SMC-2142 | 5/32" | 3/8" | 7/16" | 3-1/8" |
| SMC-2143 | 3/16" | 3/8" | 1/2" | 3-1/4" |
| SMC-2144 | 7/32" | 3/8" | 9/16" | 3-1/4" |
| SMC-2145 | 1/4" | 3/8" | 5/8" | 3-3/8" |
| SMC-2146 | 9/32" | 3/8" | 11/16" | 3-3/8" |
| SMC-2147 | 5/16" | 3/8" | 3/4" | 3-1/2" |
| SMC-2148 | 11/32" | 3/8" | 3/4" | 3-1/2" |
| SMC-2149 | 3/8" | 3/8" | 3/4" | 3-1/2" |
| SMC-2150 | 13/32" | 1/2" | 1" | 4-1/8" |
| SMC-2151 | 7/16" | 1/2" | 1" | 4-1/8" |
| SMC-2152 | 15/32" | 1/2" | 1" | 4-1/8" |
| SMC-2153 | 1/2" | 1/2" | 1" | 4-1/8" |
| SMC-2154 | 9/16" | 5/8" | 1-3/8" | 5" |
| SMC-2155 | 5/8" | 5/8" | 1-3/8" | 5" |
| SMC-2156 | 11/16" | 3/4" | 1-5/8" | 5-5/8" |
| SMC-2157 | 3/4" | 3/4" | 1-5/8" | 5-5/8" |
| SMC-2158 | 13/16" | 7/8" | 1-7/8" | 6-1/8" |
| SMC-2159 | 7/8" | 7/8" | 1-7/8" | 6-1/8" |
| SMC-2160 | 15/16" | 1" | 1-7/8" | 6-3/8" |
| SMC-2161 | 1" | 1" | 1-7/8" | 6-3/8" |
