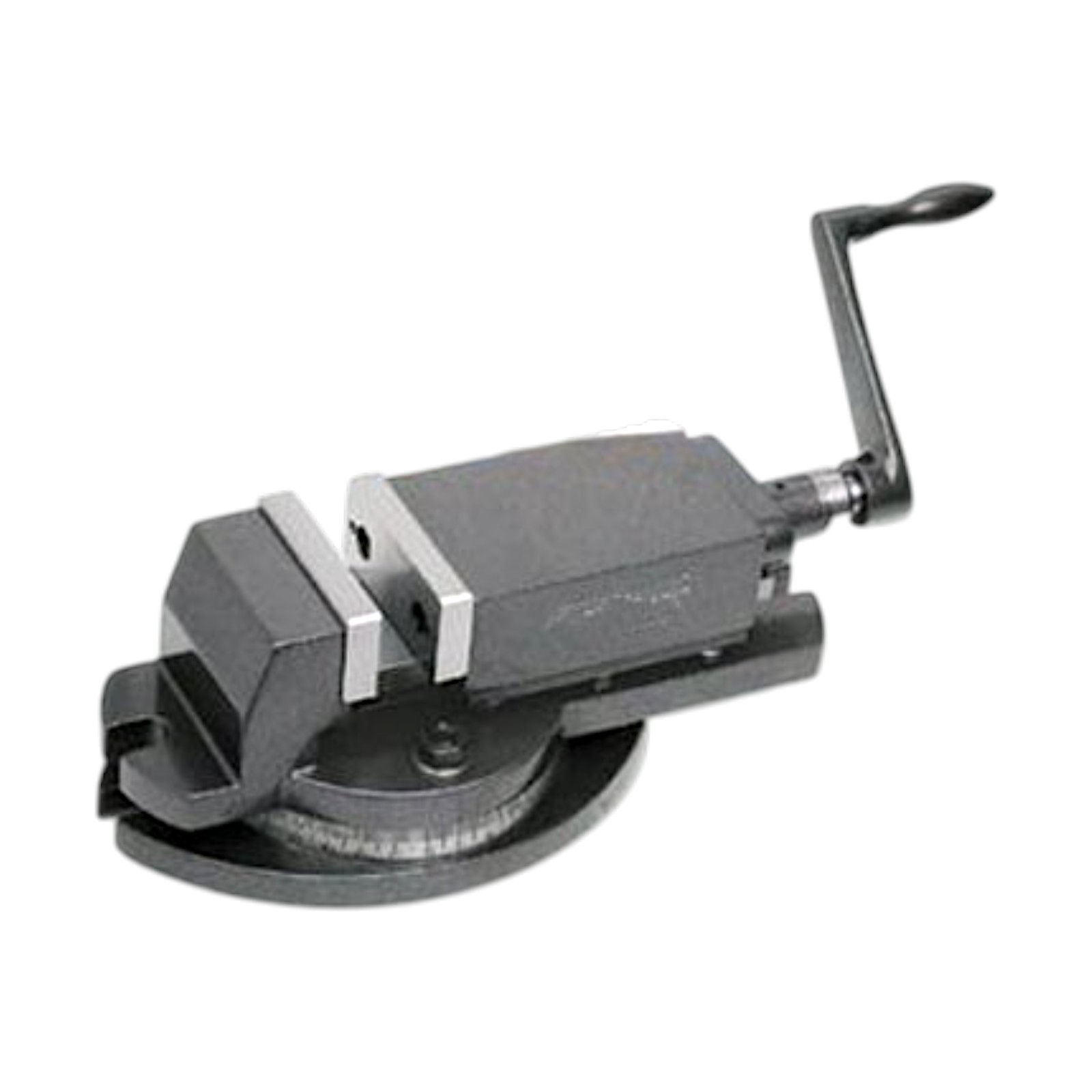

Milling Machine Vice (Heavy Duty)
Description
Description
- Vice body of High Tensile, Closed Grain Cast Iron.
- Hardened and Ground Jaw Plates.
- Swivel base graduated 360° for horizontal indexing.
- Totally enclosed acme screw.
- Low base design for use on Drilling, Milling and Shaping Machine.
| ITEM NO. | SIZES | JAW WIDTH | JAW DEPTH | JAW OPENING | ||||
|---|---|---|---|---|---|---|---|---|
| SVB-2870 | 3" | 70 mm | 3" | 75 mm | 2" | 50 mm | 3-3/8" | 85 mm |
| SVB-2871 | 4" | 100 mm | 4" | 100 mm | 2-1/4" | 55 mm | 5-1/8" | 130 mm |
| SVB-2872 | 5" | 125 mm | 5" | 125 mm | 2-7/8" | 70 mm | 5-7/8" | 145 mm |
| SVB-2873 | 6" | 150 mm | 6" | 150 mm | 3-1/8" | 80 mm | 6-3/8" | 160 mm |
| SVB-2874 | 8" | 200 mm | 8" | 200 mm | 4" | 100 mm | 8-1/4" | 210 mm |
