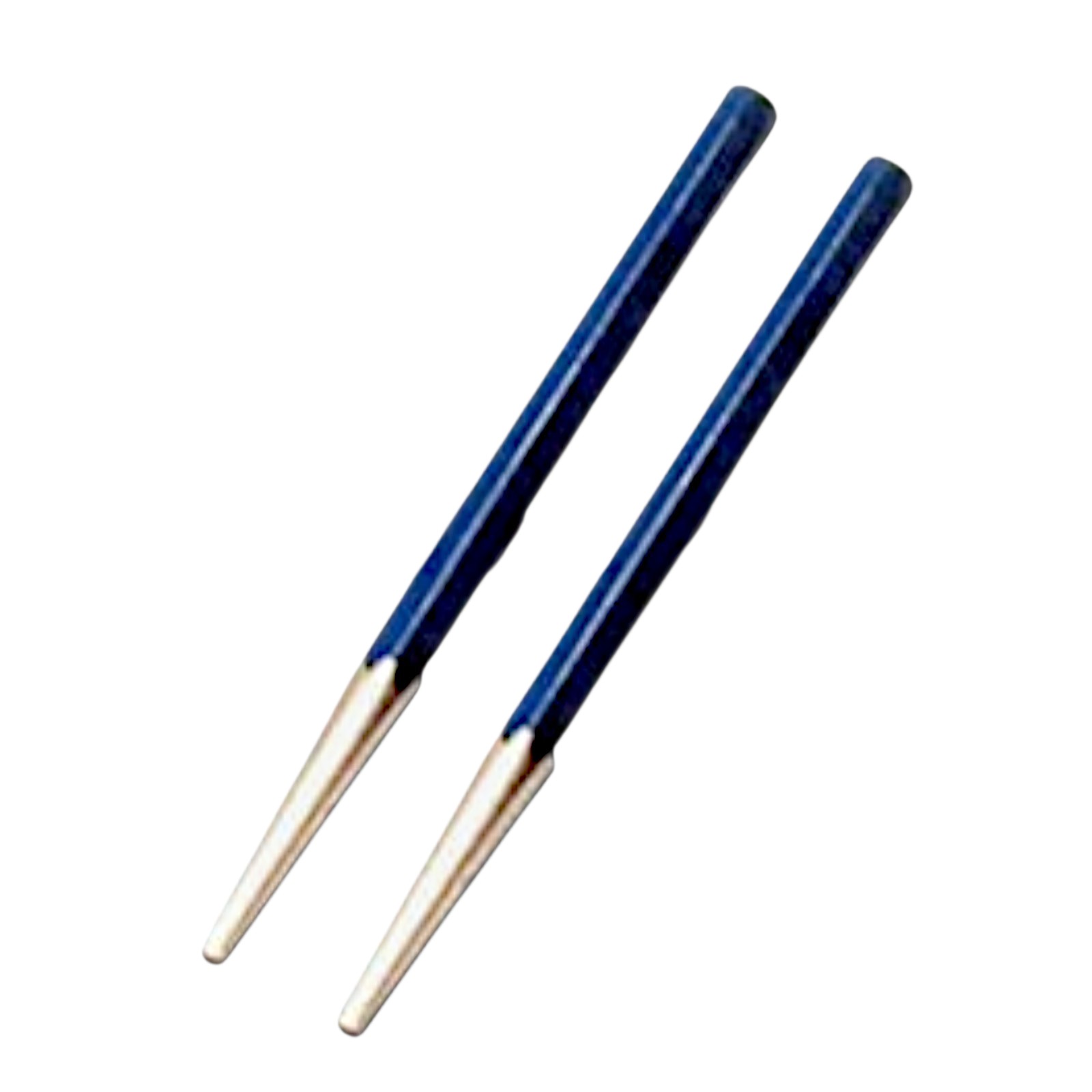

Prick Punches – Heavy
Description
Description
A prick punch is similar to a center punch but used for marking out. It has a sharper angled tip to produce a narrower and deeper indentation. The indentation can then be enlarged with a center punch for drilling.
Product specification
- Prick punch, made from High Quality Carbon Steel.
- Accurately Ground and Tempered.
- Enamel painted body with polished working ends.
- Used for marking along scribed lines in layout work, piercing holes in light metals and aligning holes in two or more metal sheets marking intersecting centre lines, hole locations and drill starting points.
| ITEM NO. | TIP DIA. | |
|---|---|---|
| SDL-3361 | 1/16" | 1.6 mm |
| SDL-3362 | 3/32" | 2.4 mm |
| SDL-3363 | 1/8" | 3.2 mm |
| SDL-3364 | 5/32" | 4.0 mm |
| SDL-3365 | 3/16" | 4.8 mm |
| SDL-3366 | 7/32" | 5.5 mm |
| SDL-3367 | 1/4" | 6.3 mm |
| SDL-3368 | 5/16" | 8.0 mm |
| SDL-3370 | Set of 4 Drive Pin Punches in a pouch consisting of 1/16", 3/32", 1/8" & 5/32" |
|
| SDL-3372 | Set of 8 Drive Pin Punches in a pouch consisting above said eight sizes |
|
