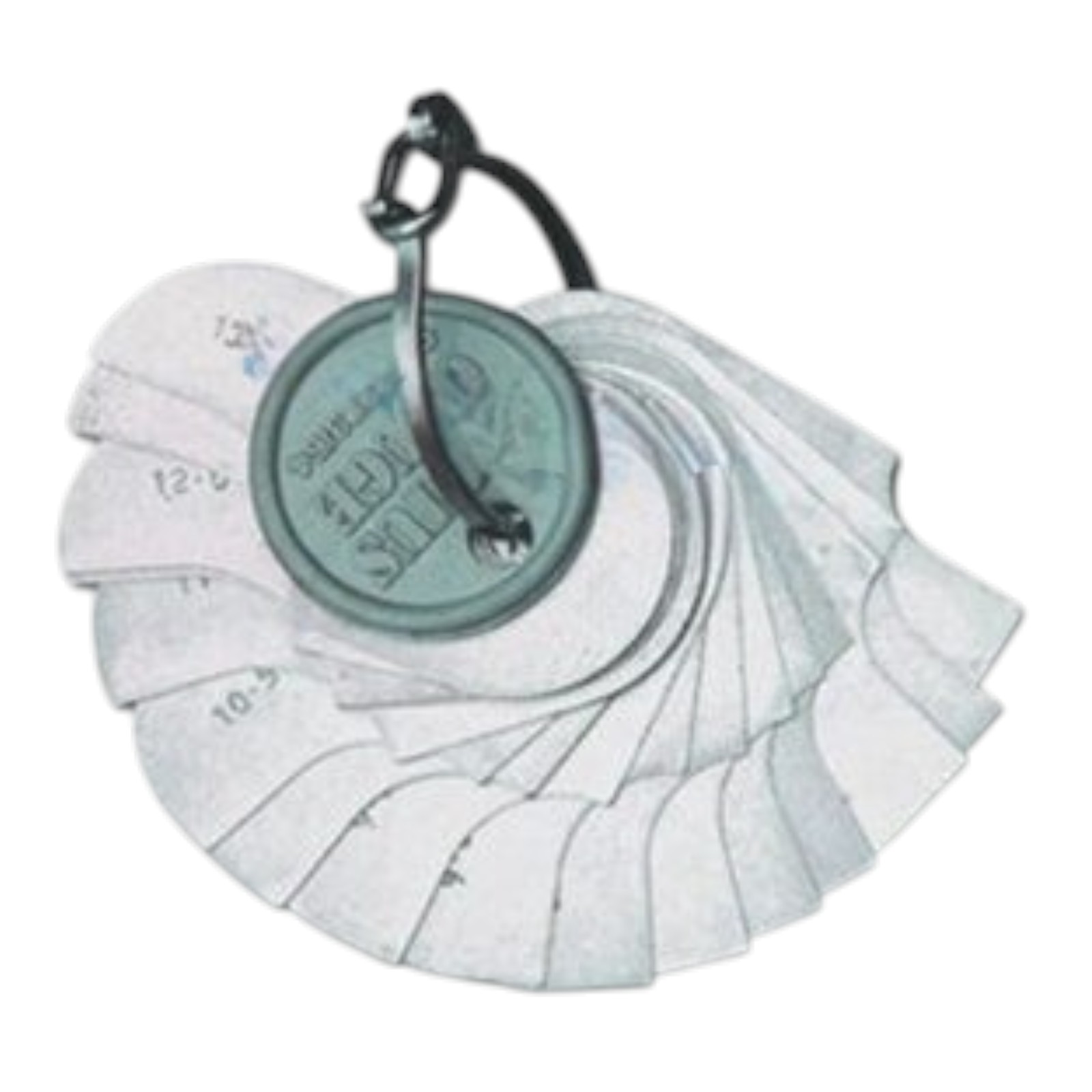

Radius Gauge – Ring Type
- Handy device for checking radii of tools and dies easier and faster.
- Gauge features leaves for measuring both concave and convex radii.
- Each leaf is clearly stamped with the radius size.
|ITEM NO.||RANGE||NO. OF LEAVES
|SRG-1721||1/32 to 17/65 by 1/64"||16
|SRG-1722||9/32 to 33/64 by 1/64"||16
|SRG-1723||0.75 to 5 by 0.25 mm||18
|SRG-1724||5.5 to 13 by 0.5 mm||16
