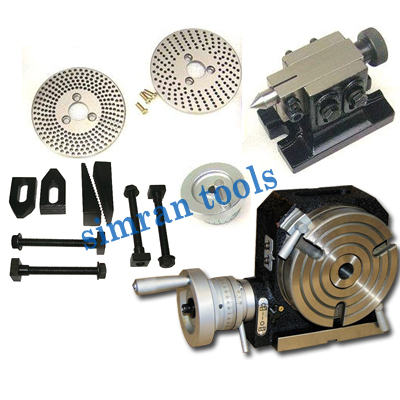

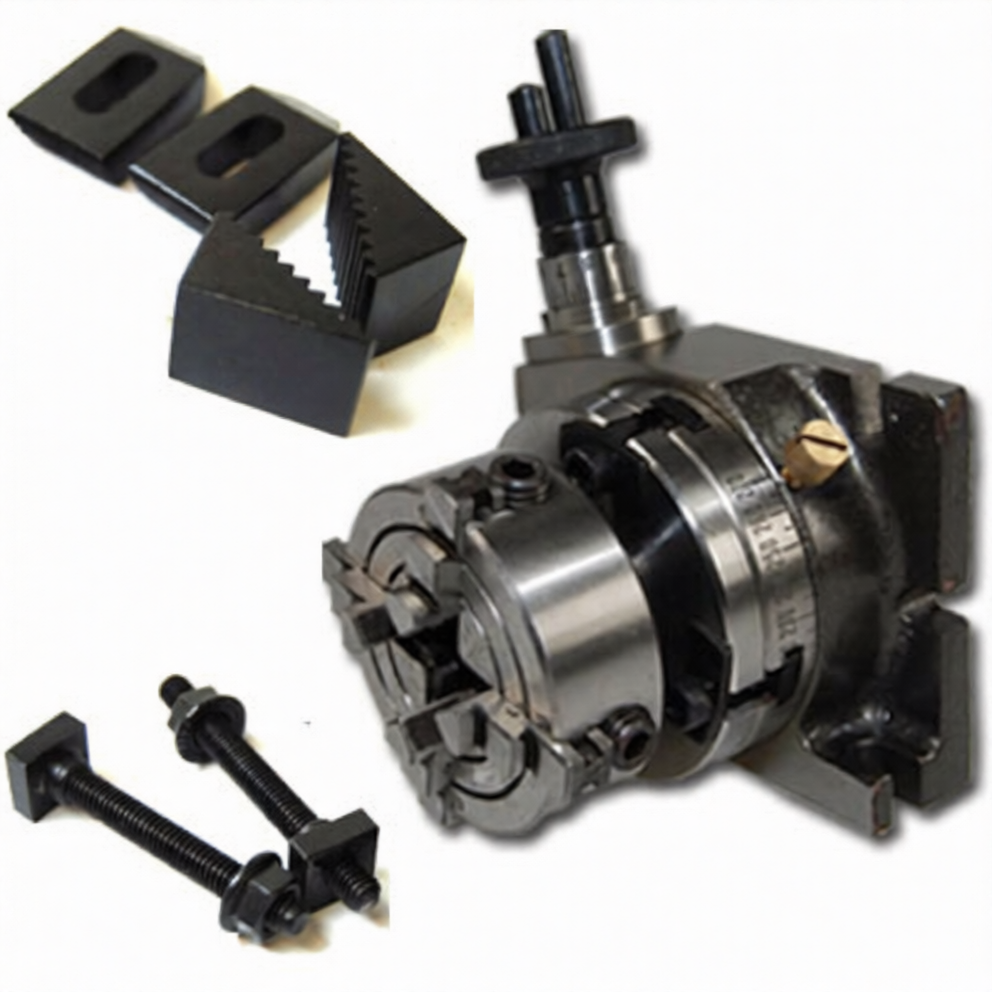

Rotary Table 4″ (100mm) with 3 Jaws or 4 Jaws Chuck
Description
Description
Rotary Tables 4″ (100 mm) with 3 Jaws or 4 Jaws Chucks
- Chuck Diameter 4″ (100 mm)
- Vertical Center Height 2-1/16″ (Approx. 51 mm)
- Hand Wheel can be set to zero
- Hand Wheel graduated in 10 min divisions
- Caliberated in 5 min increment around the rim
- 36 : 1 ratio
- Can be used both Horizontally & Vertically.

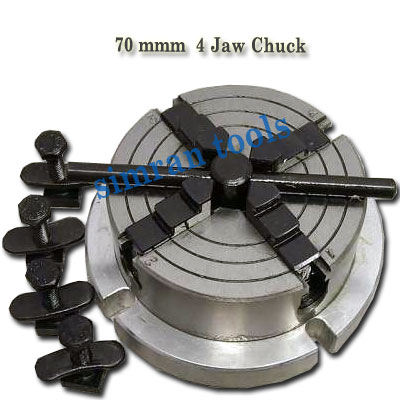

Lathe Chuck (70mm) 3 Jaws or 4 Jaws
- Mounts smoothly over the backplate (provided)
Clamping Kit (M6)
- A set of suitable T Nuts, Studs and Clamps
- 2 x Slotted Clamps (40 mm x 20 mm)
- 2 x 6 mm Studs 50 mm long with nuts
- 2 x Step Clamps 25 x 15 mm
While placing order please mention with 3 Jaws Chuck / 4 Jaws Chuck
| ITEM | NO. |
|---|---|
| SRT-6547 |
