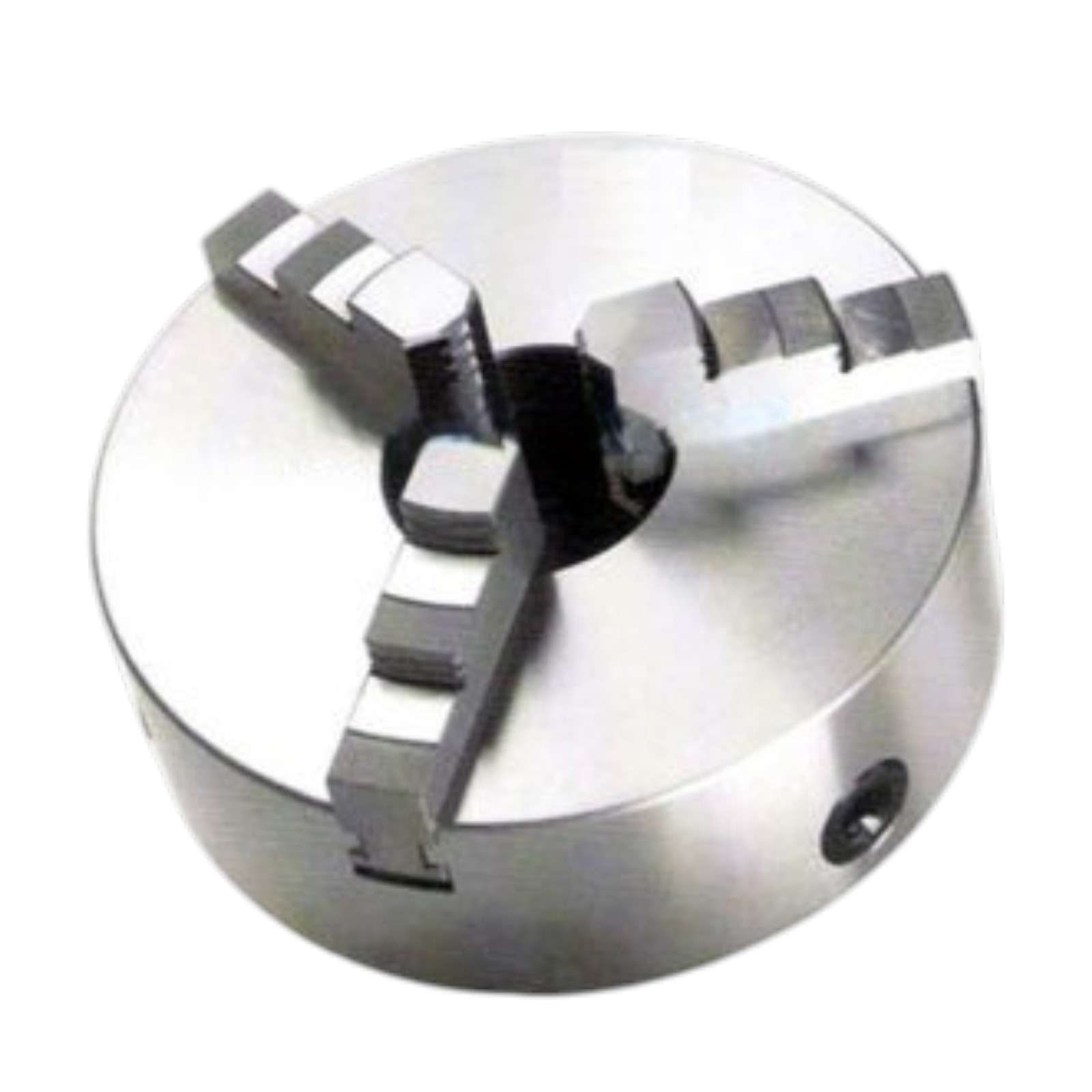

Self Centering Lathe Chucks- 3 Jaws Chuck
Description
Description
A self centering lathe chuck also known as scroll chuck is a specialized type of clamp used to hold an object with radial symmetry, especially a cylinder. In drills and mills it holds the rotating tool whereas in lathes it holds the rotating workpiece. On a lathe the chuck is mounted on the spindle which rotates within the headstock.
 There are also independent-jaw (non-self centering lathe chuck )with three jaws, but they offer few advantages and are very rare.
- Lathe chuck jaws Also known as true chuck
- Used for universal application.
- Scrolls are forged balanced and hardened.
- All supplied with two sets of solid jaws internal and external stepped.
- Available in 3 jaw chuck and 4 jaw chuck.
| STRAIGHT TAIL ITEM NO. | BENT TAIL ITEM NO. | CAPACITY | |
|---|---|---|---|
| SLR-0510 | SLR-0530 | 1/4" | 6 mm |
| SLR-0511 | SLR-0531 | 3/8" | 10 mm |
| SLR-0512 | SLR-0532 | 1/2" | 13 mm |
| SLR-0513 | SLR-0533 | 3/4" | 20 mm |
| SLR-0514 | SLR-0534 | 1" | 25 mm |
| SLR-0515 | SLR-0535 | 1-1/4" | 32 mm |
| SLR-0516 | SLR-0536 | 1-1/2" | 40 mm |
| SLR-0517 | SLR-0537 | 1-3/4" | 45 mm |
| SLR-0518 | SLR-0538 | 2" | 50 mm |
| SLR-0519 | SLR-0539 | 2-1/4" | 55 mm |
| SLR-0520 | SLR-0540 | 2-1/2" | 65 mm |
| SLR-0521 | SLR-0541 | 2-3/4" | 70 mm |
| SLR-0522 | SLR-0542 | 3" | 75 mm |
| SLR-0523 | SLR-0543 | 3-1/4" | 80 mm |
| SLR-0524 | SLR-0544 | 3-1/2" | 90 mm |
| SLR-0525 | SLR-0545 | 4" | 100 mm |
| SLR-0526 | SLR-0546 | 4-1/2" | 115 mm |
| SLR-0527 | SLR-0547 | 5" | 125 mm |
| SLR-0528 | SLR-0548 | 6" | 150 mm |
