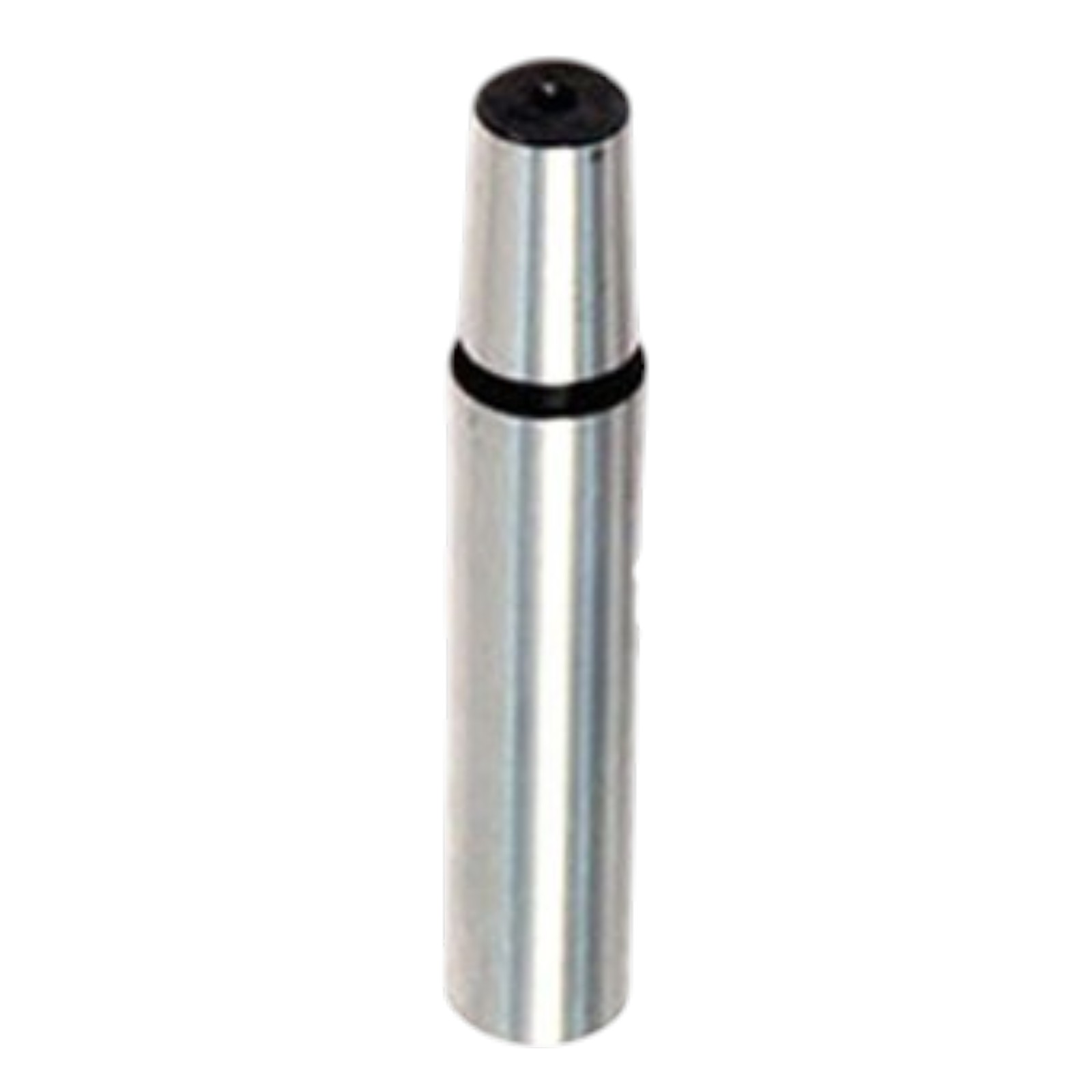

Straight Shank Arbors- Drill Chuck Arbors
Description
Description
Straight shank Drill Chuck Arbors ,mainly used in drilling machine and lathe machne.
- Drill chuck arbors have one end which is the taper of the machine. The most common are Morse Tapers.
- For mounting in a drill press spindle or lathe, or NT tapers for mounting in milling machines.
- The other end of the arbor, a short taper called a Jacobs Taper driven into the taper in the chuck body. The JT taper or Jacobs Taper , the most commonly used taper for mounting a drill chuck.Â
| ITEM NO. | SHANK DIAMETER | SHANK LENGTH | JACOB TAPER |
|---|---|---|---|
| SSA-0095 | 3/8" | 2-1/2" | 0 |
| SSA-0096 | 3/8" | 2-1/2" | 1 |
| SSA-0097 | 3/8" | 2-1/2" | 2 |
| SSA-0098 | 1/2" | 2-1/2" | 0 |
| SSA-0099 | 1/2" | 2-1/2" | 1 |
| SSA-0100 | 1/2" | 2-1/2" | 2 |
| SSA-0101 | 1/2" | 2-1/2" | 3 |
| SSA-0102 | 1/2" | 2-1/2" | 4 |
| SSA-0103 | 1/2" | 2-1/2" | 6 |
| SSA-0104 | 1/2" | 2-1/2" | 33 |
| SSA-0105 | 5/8" | 2-1/2" | 0 |
| SSA-0106 | 5/8" | 2-1/2" | 1 |
| SSA-0107 | 5/8" | 2-1/2" | 2 |
| SSA-0108 | 5/8" | 2-1/2" | 3 |
| SSA-0109 | 5/8" | 2-1/2" | 4 |
| SSA-0110 | 5/8" | 2-1/2" | 6 |
| SSA-0111 | 5/8" | 2-1/2" | 33 |
| SSA-0112 | 3/4" | 3" | 0 |
| SSA-0113 | 3/4" | 3" | 1 |
| SSA-0114 | 3/4" | 3" | 2 |
| SSA-0115 | 3/4" | 3" | 3 |
| SSA-0116 | 3/4" | 3" | 4 |
| SSA-0117 | 3/4" | 3" | 6 |
| SSA-0118 | 3/4" | 3" | 33 |
| SSA-0119 | 1" | 3" | 0 |
| SSA-0120 | 1" | 3" | 1 |
| SSA-0121 | 1" | 3" | 2 |
| SSA-0122 | 1" | 3" | 3 |
| SSA-0123 | 1" | 3" | 4 |
| SSA-0124 | 1" | 3" | 5 |
| SSA-0125 | 1" | 3" | 6 |
| SSA-0126 | 1" | 3" | 33 |
| SSA-0127 | 1-1/2" | 4" | 3 |
| SSA-0128 | 1-1/2" | 4" | 4 |
| SSA-0129 | 1-3/4" | 4" | 3 |
| SSA-0130 | 1-3/4" | 4" | 4 |
