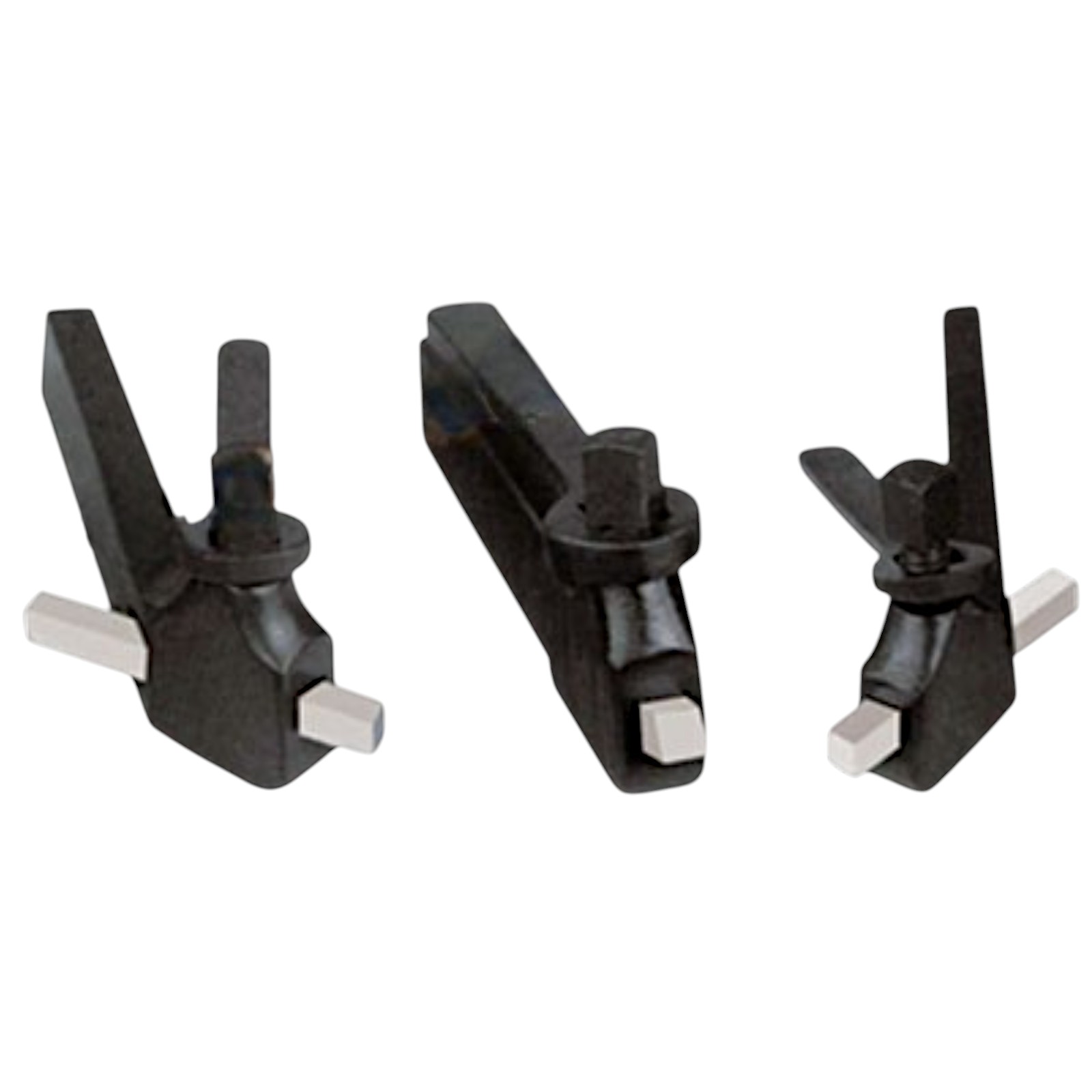

Turning Tool Holders – American Pattern
|
Description
Description
Use Of Turning Tool Holder?
Turning tool holders(also known as lathe tool holders) , manufactured from high grade steel.These tool holders are accurately machined and ground.
The cutting edge gets maximum support by holding the tool bits parallel and straight to the shank. Also Set screws ,made from heat treated alloy steel with hardened points for increased resistance to wear.
Also Turning Tool holders available with straight shank, right handed and left handed offset shank. Each holder comes complete with an allen key but without tool bit.
Product Specification
- Accurately Machined. Heat Treated & Hardened.
- Provided with one wrench. Supplied without Tool Bits.
- Available in ST (Straight), LT (Left) and RT (Right) hand shanks.
| ITEM NO. | SIZE OF HOLDER | SIZE OF CUTTER |
|---|---|---|
| SAP-0760 | 5/16" x 3/4" x 4-1/2" | 3/16" |
| SAP-0761 | 3/8" x 7/8" x 5" | 1/4" |
| SAP-0762 | 1/2" x 1-1/8" x 6" | 5/16" |
| SAP-0763 | 5/8" x 1-3/8" x 7" | 3/8" |
| SAP-0764 | 3/4" x 1-5/8" x 8" | 7/16" |
| SAP-0765 | 7/8" x 1-3/4" x 9" | 1/2" |
| SAP-0766 | 1" x 2" x 11" | 5/8" |
| SAP-0767 | 1-1/4" x 2-1/4" 13" | 3/4" |
| While Placing Order Please Mention ST, LT, or RT Hand Shanks | ||
