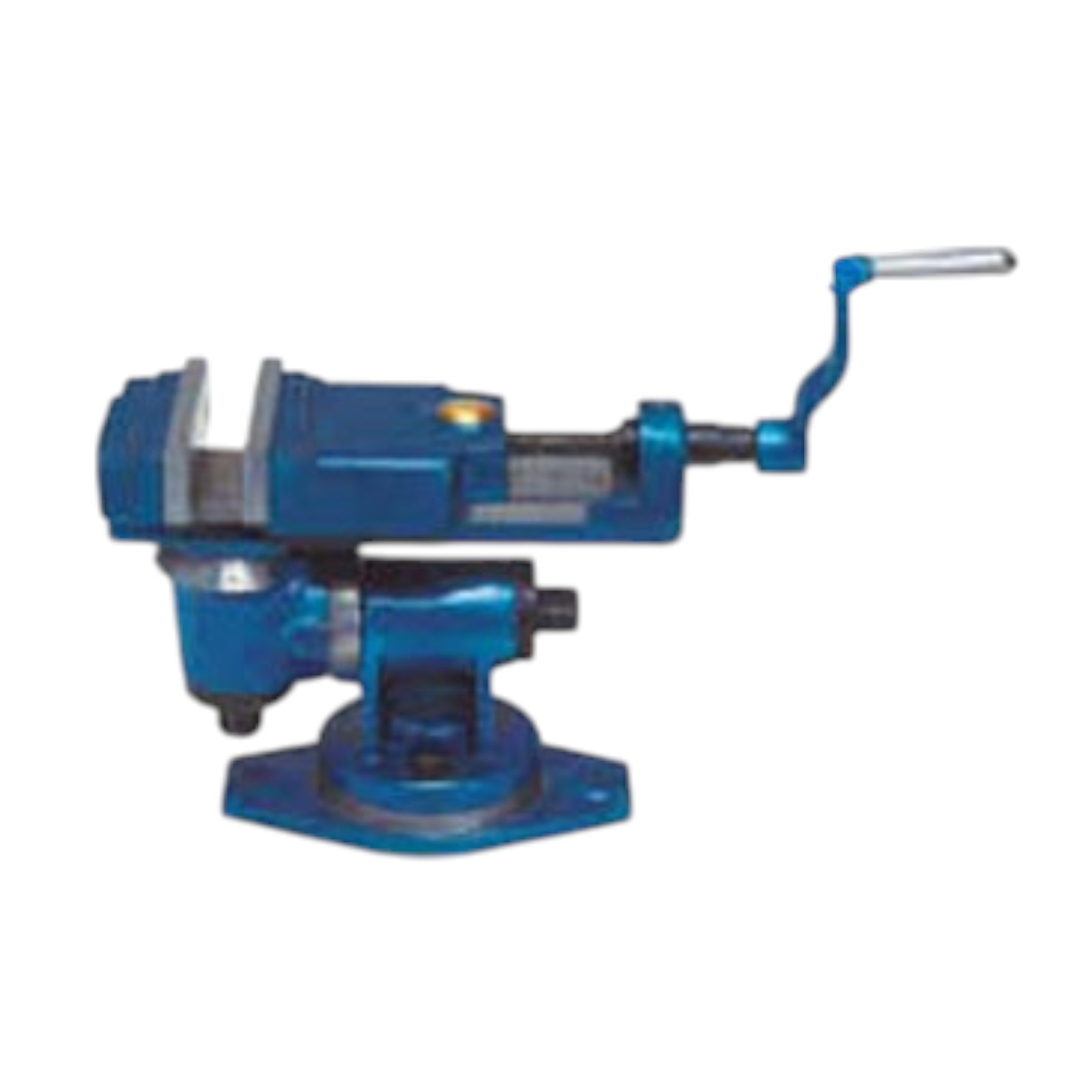

Universal Vice
Description
Description
- Vice Body made of High Grade Casting.
- Specially designed for Surface Grinders and Universal Tool and Cutter Grinders.
- Workpiece can be positively locked on hardened Jaws, at any Compound Angle.
- Indexing can be done through three different graduated axis.
| ITEM NO. | SIZES | JAW WIDTH | JAW DEPTH | JAW OPENING | ||||
|---|---|---|---|---|---|---|---|---|
| SVB-2862 | 3" | 70 mm | 3" | 75 mm | 2" | 50 mm | 3-3/8" | 85 mm |
| SVB-2864 | 4" | 100 mm | 4" | 100 mm | 2-1/4" | 55 mm | 5-1/8" | 130 mm |
| SVB-2866 | 5" | 125 mm | 5" | 125 mm | 2-7/8" | 70 mm | 5-7/8" | 145 mm |
| SVB-2867 | 6" | 150 mm | 6" | 150 mm | 3-1/8" | 80 mm | 6-3/8" | 160 mm |
| SVB-2868 | 8" | 200 mm | 8" | 200 mm | 4" | 100 mm | 8-1/4" | 210 mm |
