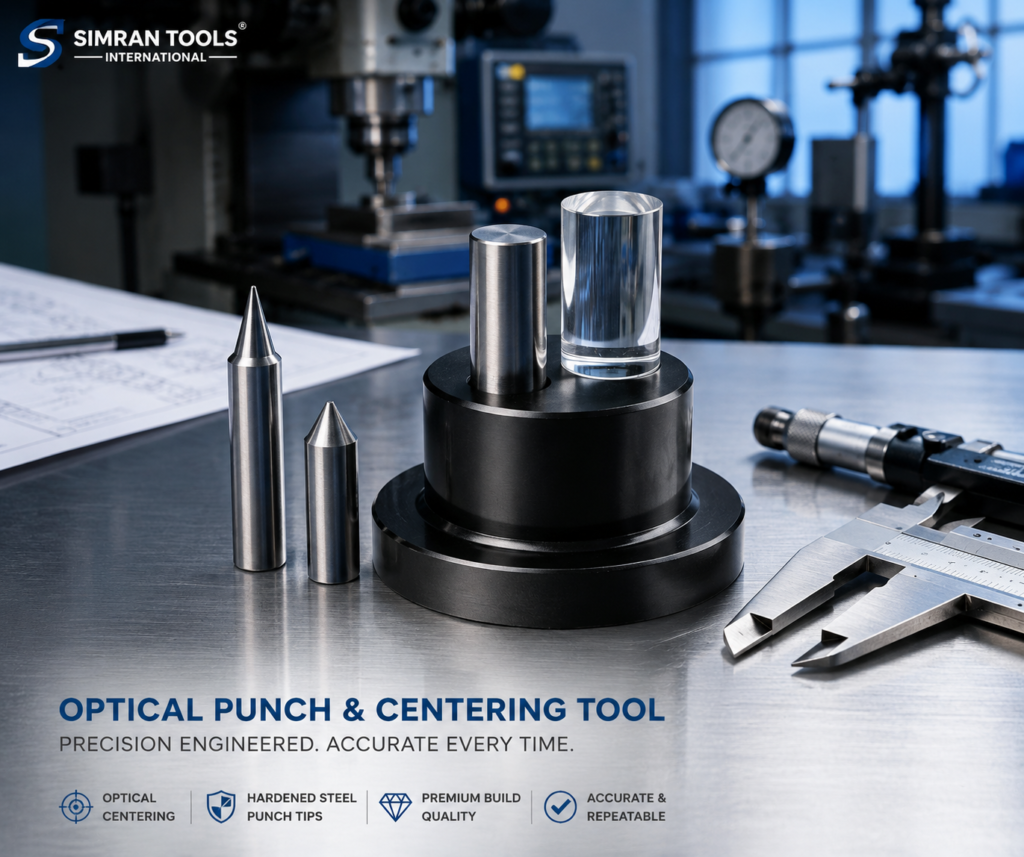

Optical Punch & Centering Tool – Clear Acrylic Lens Marking Set

Precision Center Marking Made Simple with SIMRAN TOOLS INTERNATIONAL

In machining, fabrication, woodworking, and engineering applications, accuracy starts long before the drill bit touches the material. A perfectly centered mark is essential for achieving precise holes, maintaining dimensional accuracy, and avoiding costly mistakes. Even a slight deviation during marking can lead to misaligned holes, poor fitment, wasted material, and additional machining time.

The SIMRAN TOOLS INTERNATIONAL Optical Punch & Centering Tool is designed to eliminate guesswork from center marking. By combining a precision optical lens with hardened steel punch tips, this tool enables users to visually locate the exact center of a workpiece and transfer that location accurately for drilling or machining operations.

Whether you’re a professional machinist, toolmaker, engineer, fabricator, or woodworking enthusiast, this optical punch set helps deliver consistent and repeatable results with exceptional accuracy.

What Is an Optical Punch & Centering Tool?

An optical punch is a specialized layout and marking tool that uses a transparent lens with engraved crosshairs to accurately locate the center of an existing hole, circular feature, layout mark, or reference point.

Unlike conventional center punches that depend heavily on visual estimation, an optical punch allows the user to see the exact center before marking. Once aligned, the optical lens is replaced with a hardened steel punch, ensuring the mark is transferred precisely to the intended location.

This simple yet effective system significantly improves accuracy while reducing setup errors and material wastage.

How It Works – Three Simple Steps

The optical punch system is designed to be fast, intuitive, and highly accurate.

Step 1 – Align and Focus

Place the optical body over the desired location and view the workpiece through the clear acrylic lens. Using the engraved crosshair, align the center exactly with the target point.

The transparent lens provides a direct overhead view, allowing precise positioning without distortion.

Benefits:

✔ Accurate visual centering
✔ Easy alignment of existing holes and marks
✔ Eliminates estimation errors
✔ Suitable for precision layout work

Step 2 – Replace the Lens with the Punch

Once alignment is complete, carefully remove the optical lens and insert the hardened steel punch through the guide body. The punch occupies the exact same position established during alignment, ensuring perfect center transfer.

Depending on the application, different punch point angles may be used for various materials and marking requirements.

Step 3 – Tap to Create the Center Mark

After inserting the punch, apply a light hammer strike to create a clean center indentation on the workpiece. This mark provides an accurate starting point for drilling operations and prevents drill bit wandering.

The result is a sharp and reliable reference point that improves drilling precision and overall machining quality.

Benefits:

✔ Clean and precise center marks
✔ Improved drilling accuracy
✔ Reduced drill walking
✔ Faster setup and production

Precision Optical Alignment Technology

The key feature of this tool is its optical centering capability. The clear acrylic lens incorporates engraved crosshair markings that allow users to visually identify the exact center before marking.

This system dramatically improves layout accuracy and reduces the likelihood of drilling errors, especially when working with critical dimensions and tight tolerances.

Advantages of Optical Alignment

✔ Direct visual confirmation of center position
✔ Reduced setup mistakes
✔ Improved repeatability
✔ Faster layout operations
✔ Better overall machining accuracy

Durable Hardened Steel Construction

The punch components are manufactured from hardened steel to withstand repeated workshop use. The robust construction resists wear and deformation while maintaining consistent marking performance over extended service life.

This durable design makes the tool suitable for both professional industrial environments and home workshops.

Features

✔ Hardened steel punch body
✔ Long-lasting performance
✔ Excellent impact resistance
✔ Reliable marking accuracy
✔ Professional-grade durability

Applications of the Optical Punch Tool

The Optical Punch & Centering Tool is ideal for a wide range of professional and workshop applications.

• Machining & Toolmaking

Accurately locate drill centers, fixture positions, and machining reference points.

• Metal Fabrication

Transfer hole locations precisely during fabrication and assembly operations.

• Woodworking

Create accurate drilling locations for joinery, hardware installation, and layout work.

• Engineering Workshops

Improve setup precision and reduce alignment errors during manufacturing processes.

• Maintenance & Repair Work

Quickly locate and transfer center points during repair and modification jobs.

Why Choose SIMRAN TOOLS INTERNATIONAL?

SIMRAN TOOLS INTERNATIONAL is committed to manufacturing reliable precision tools designed for professional performance. The Optical Punch & Centering Tool combines accuracy, durability, and ease of use in one compact solution, helping users achieve professional-quality marking results every time.

Key Advantages

✔ Precision optical alignment system
✔ Clear acrylic lens with engraved crosshair
✔ Hardened steel punch construction
✔ Accurate and repeatable center marking
✔ Quick three-step operation
✔ Suitable for metal, wood, plastic, and composite materials
✔ Ideal for professional and workshop use

Conclusion

The SIMRAN TOOLS INTERNATIONAL Optical Punch & Centering Tool – Clear Acrylic Lens Marking Set offers a simple yet highly effective solution for accurate center marking. Its optical alignment system allows users to locate the exact center visually, while the hardened steel punch transfers that location with exceptional precision.

From machining and fabrication to woodworking and engineering projects, this versatile tool helps improve accuracy, reduce errors, and ensure professional-quality drilling results every time. By eliminating guesswork and enhancing repeatability, it becomes an indispensable addition to any workshop or manufacturing environment.
