How to Use a Large Adjustable Trammel Head Set for Accurate Layout & Marking Work

Precision layout tools are essential for achieving clean curves, perfect circles, and accurate measurements in woodworking, metal fabrication, drafting, and workshop projects. While ordinary compasses work well for small circles, they become limited when larger layouts are required. That’s where the SIMRAN TOOL Large Adjustable Trammel Head Set Beam Compass becomes the ideal solution.

Designed for professional precision and heavy-duty performance, this adjustable beam compass system allows users to create large-radius circles, arcs, and curved markings with smooth accuracy and excellent control.

What Is a Trammel Head Set?

A trammel head set is a precision marking tool that converts a straight beam, ruler, or wooden strip into a large-capacity compass. By adjusting the distance between the trammel heads, users can create circles and arcs far larger than those possible with standard compasses.

The SIMRAN TOOL set includes:

• 2 Adjustable Trammel Heads
• Hardened Steel Divider Points
• Pencil Holders
• Secure Locking Screws

This combination provides flexibility for both visible pencil marking and sharp precision scribing.

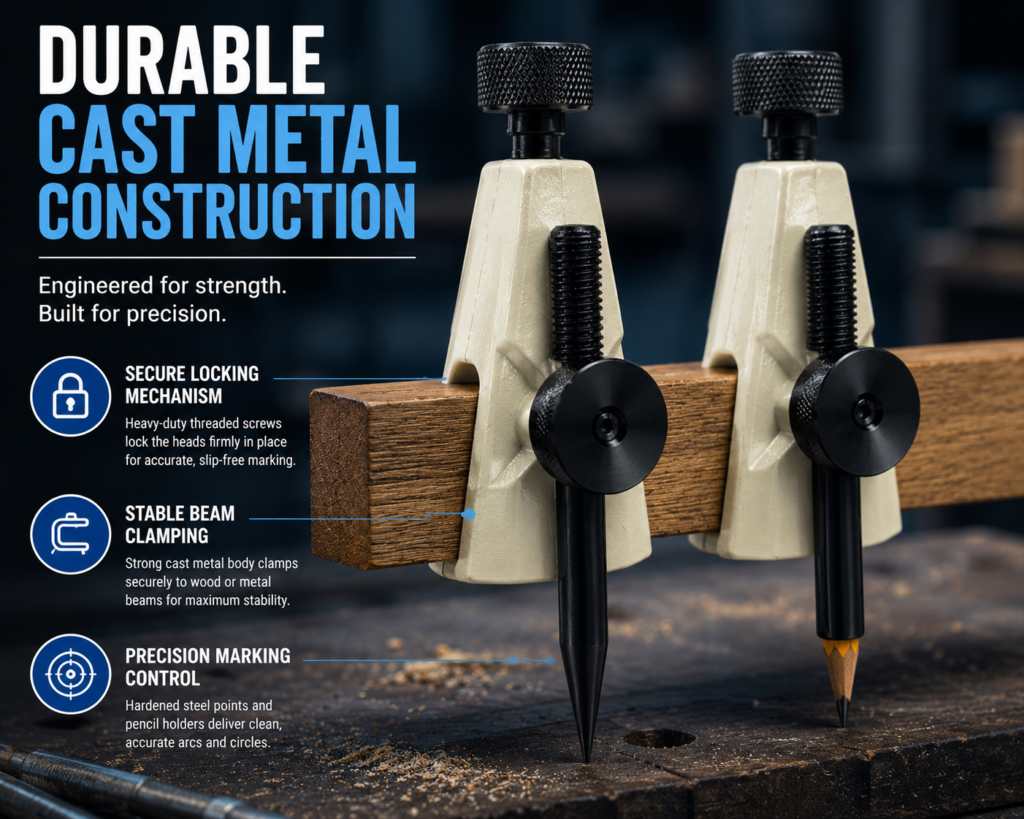

Heavy-Duty Construction for Long-Term Accuracy

Manufactured from rugged cast metal, the trammel heads are built for durability and long service life. The strong clamping system ensures secure positioning during marking operations, preventing unwanted movement and maintaining precise measurements.

Unlike lightweight plastic layout tools, these trammel heads are designed for workshop environments where stability and repeatable accuracy matter most.

The hardened steel divider points create sharp, clean markings on wood, metal, plastic, and composite surfaces, while the pencil holders provide highly visible layout lines for cutting and shaping operations.

How to Use the Trammel Head Set

Using the trammel head set is simple and efficient once assembled properly.

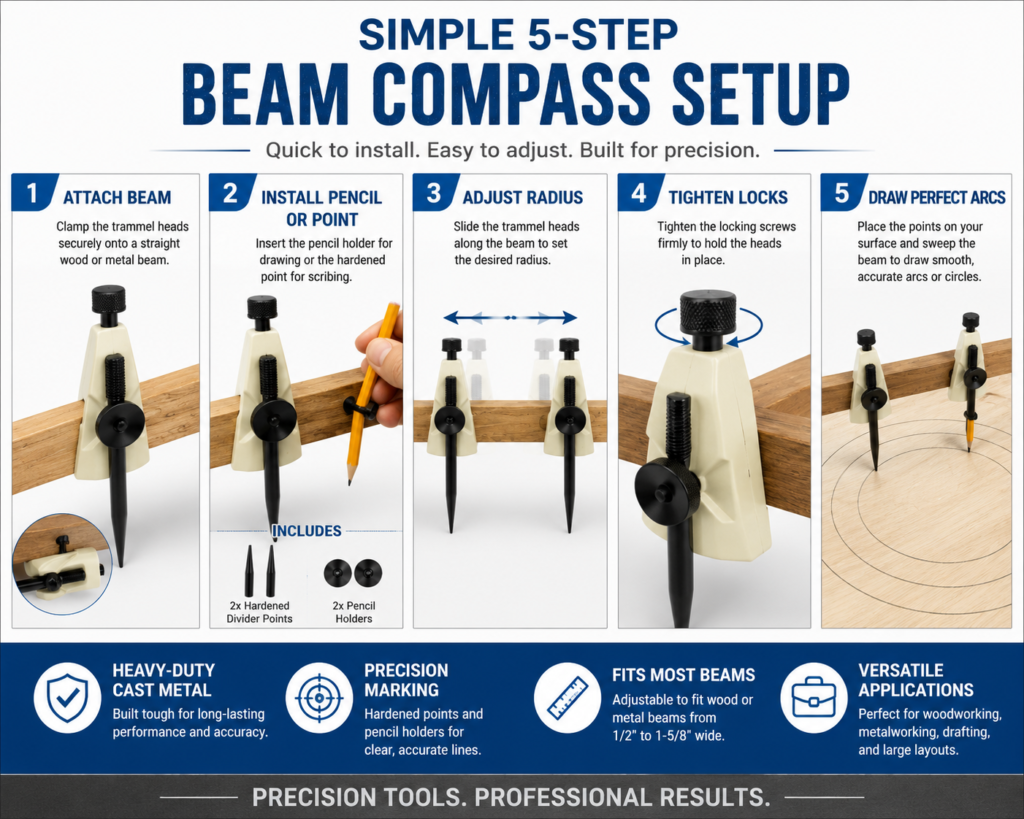

Step 1 – Select a Beam

Choose a straight wooden strip, ruler, or metal beam compatible with the trammel clamp size.

Step 2 – Install Marking Components

Attach the hardened steel point for scribing or install the pencil holder for visible marking lines.

Step 3 – Adjust the Radius

Slide the trammel heads along the beam according to the required circle diameter or arc size.

Step 4 – Tighten the Locking Screws

Secure both heads firmly to maintain accurate positioning during use.

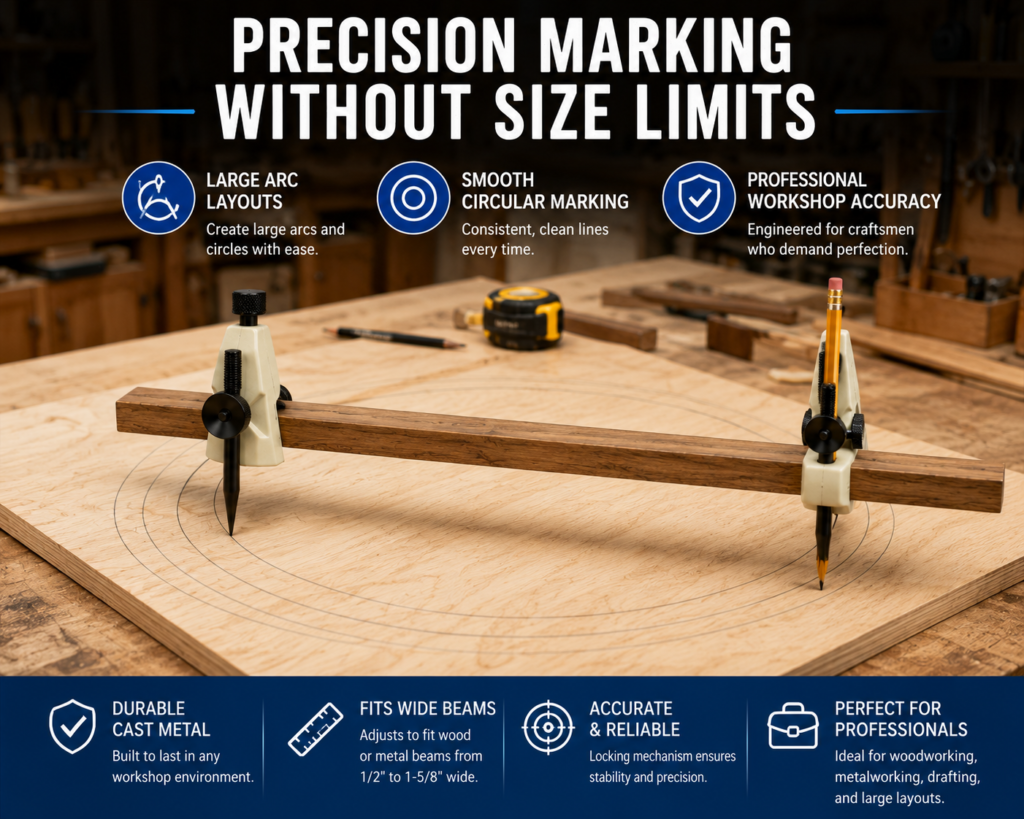

Step 5 – Draw Smooth Arcs

Place the center point and rotate the beam smoothly to create accurate circles or curved layouts.

Key Advantages of Adjustable Trammel Heads

Large Radius Capability

Create large circles and arcs beyond the limitations of ordinary compasses.

Accurate Repeatable Layouts

Secure locking screws maintain stable positioning for consistent results.

Multiple Marking Options

Switch between pencil holders and steel points depending on project requirements.

Portable Workshop Design

Compact trammel heads are easy to store and transport.

Conclusion

The SIMRAN TOOL Large Adjustable Trammel Head Set provides an accurate and reliable solution for large-radius marking, circle layouts, and precision workshop applications. Its durable cast metal construction, secure locking system, and adjustable beam compatibility make it an essential layout tool for professionals and serious DIY users alike.

Whether you’re working on woodworking projects, fabrication layouts, drafting, or curved panel designs, this beam compass system delivers smooth, repeatable, and highly accurate results every time.
