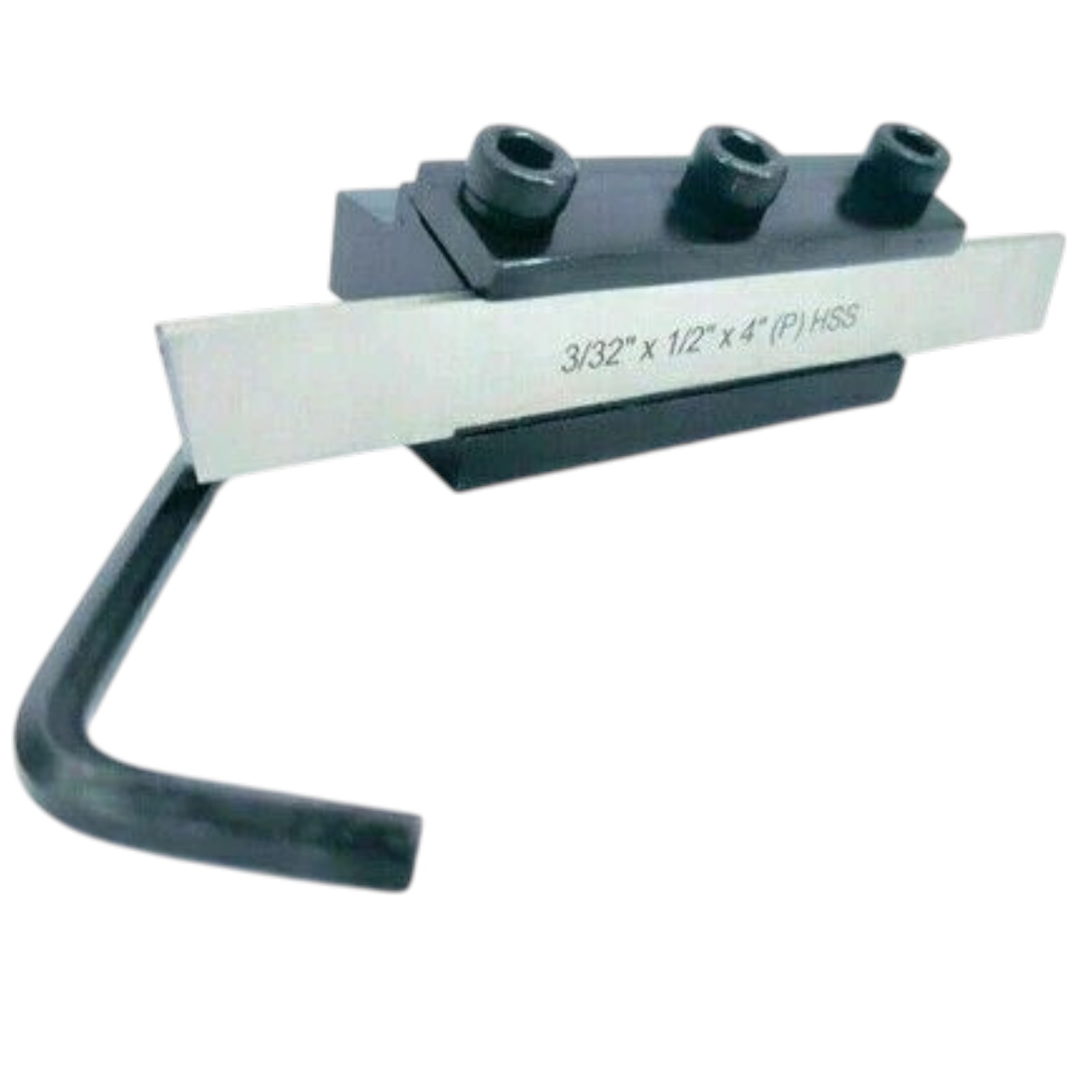

Parting Tool Holder – Clamp Type
|
Description
Description
Parting Tool Holders- Clamp Type
Parting( as the name suggests to cut-off something). Parting Tool Holder uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length.
- Â Normally used to remove the finished end of a workpiece from the bar stock that is clamped in the chuck
- Other uses include things such as cutting the head off a bolt
- Firm and positive clamping force by screws on top of mounting plate.
- Hardened Steel Construction.
| ITEM NO. | DIA. HEAD | DIA. SHANK | HOLDING SIZE OF BIT |
|---|---|---|---|
| SFT-0910 | 3/4" | 1/2" | 3/16" |
| SFT-0911 | 1-1/8" | 1/2" | 1/4" |
| SFT-0912 | 1-1/2" | 1/2" | 5/16" |
| SFT-0913 | 1-1/2" | 3/4" | 5/16" |
| SFT-0914 | 2" | 3/4" | 5/16" |
| SFT-0915 | 2-1/2" | 3/4" | 5/16" |
