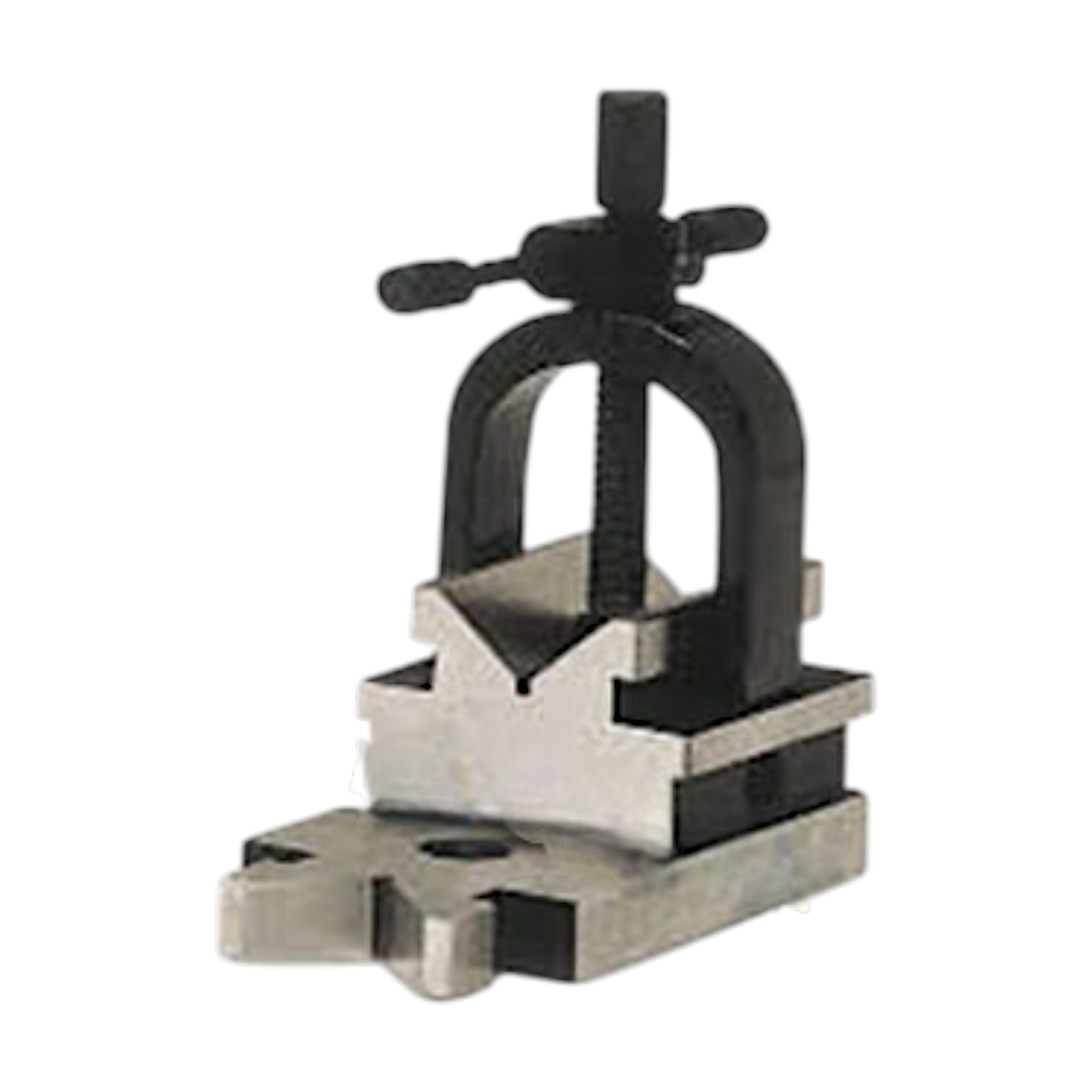

Precision V Block & Clamp (Ultimate) All Angles
Description
Description
- Ultimate V-Block for Grinding, Milling or Drilling work.
- Made of hardened and precision ground tool steel.
- The sides are parallel and vee is central and ground.
- Central Hole is provided for Drilling or removing Pins.
- Clamp is smaller than outside width of the V-Block and has adjustable side screw for support.
- V-Block has four 3-8/16 tapped holes two in the base and one on each side for angle iron clamping.
- Block is provided with black oxidized clamp.
- Holding Capacity 1-5/16″ (33 MM).
| ITEM NO. | LENGTH | HEIGHT | THICKNESS | TH OF VEE | ||||
|---|---|---|---|---|---|---|---|---|
| SBQ-1301 | 3-3/4" | 95 mm | 2-3./4" | 70 mm | 1-3/8" | 35 mm | 3/4"x1-3/16"x1-9/16"x2" | 20mm x 30mm x 40mm x 50mm |
| SBQ-1302 | 4" | 100 mm | 4" | 100 mm | 1-3/16" | 30 mm | 3/4"x1-3/16"x1-9/16"x2" | 20mm x 30mm x 40mm x 50mm |
| SBQ-1303 | 4-3/4" | 120 mm | 4-3/4" | 120 mm | 1-3/8" | 35 mm | 1-3/16"x1-9/16"x2"x2-3/8" | 30mm x 40mm x 50mm x 60mm |
| SBQ-1304 | 4-3/4" | 120 mm | 4-3/4" | 120 mm | 2-3/8" | 60 mm | 1-3/16"x1-9/16"x2"x2-3/8" | 30mm x 40mm x 50mm x 60mm |
| SBQ-1305 | 6" | 150 mm | 6" | 150 mm | 3" | 75 mm | 1-9/16"x2"x2-3/8"x2-3/4" | 40mm x 50mm x 60mm x 70mm |
| SBQ-1306 | 8" | 200 mm | 8" | 200 mm | 4" | 100 mm | 2-3/8"x2-3/4"x3-5/32"x4" | 60mm x 70mm x 80mm x 100mm |
