5″ Rotary Table Set
Description

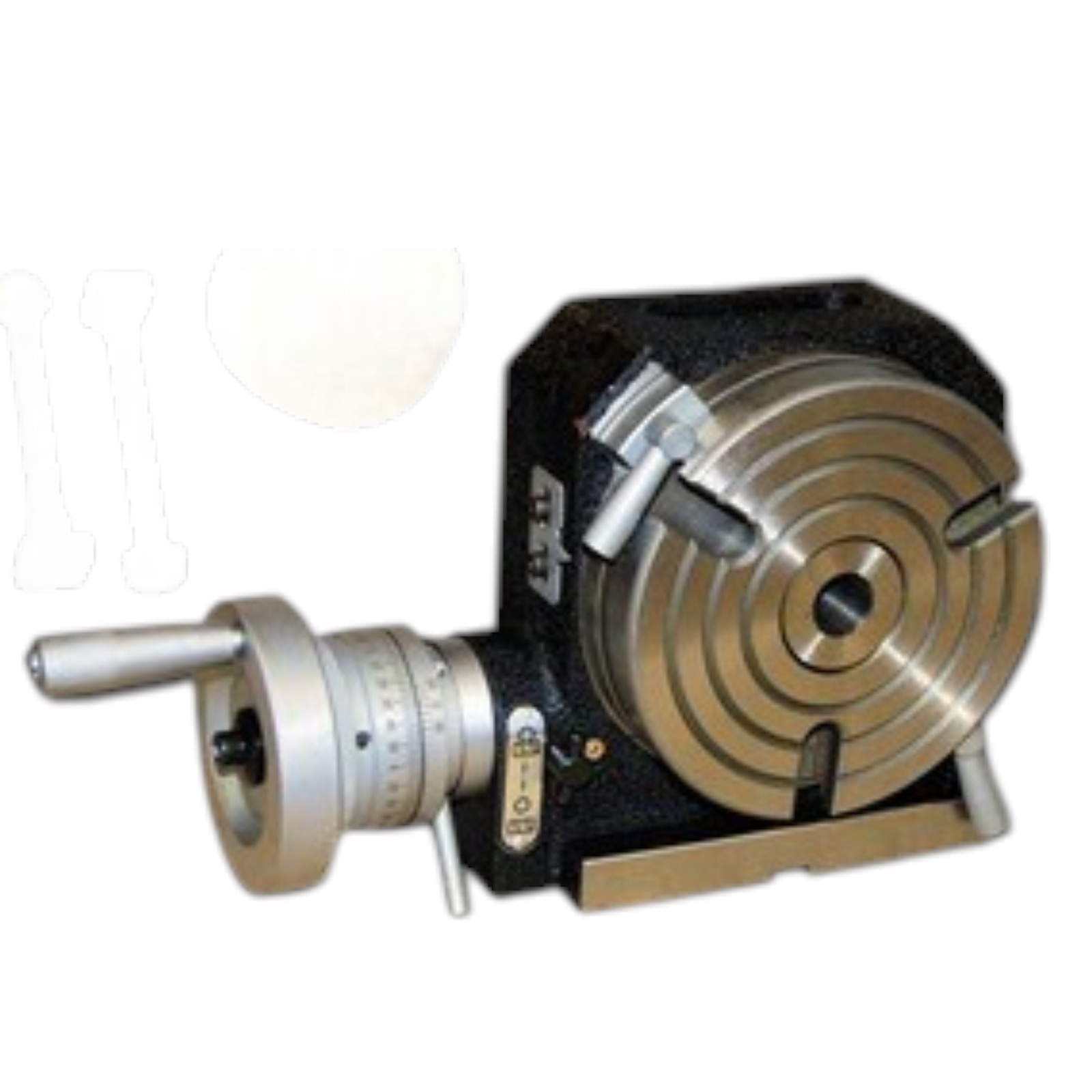

5″ Rotary Tables Set
- Table Diameter 5″ (127 mm)
- Overall Height in vertical position 90 mm
- Worm Gear Ratio 1:72 which means that the 1 handle rotation shall turn the table by 5 degrees
- T Slot width (Top of the table) : 12 mm
- Table Graduated 360 degree, Vernier Scale is caliberated to 10 seconds.
- Center Bore of the Table 2 MT
- Can be clamped in Horizontal as well as vertical.
Set consists of 3 Div Plates, Tail Stock and clamping kit

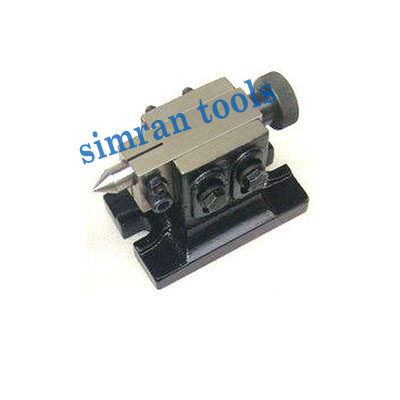

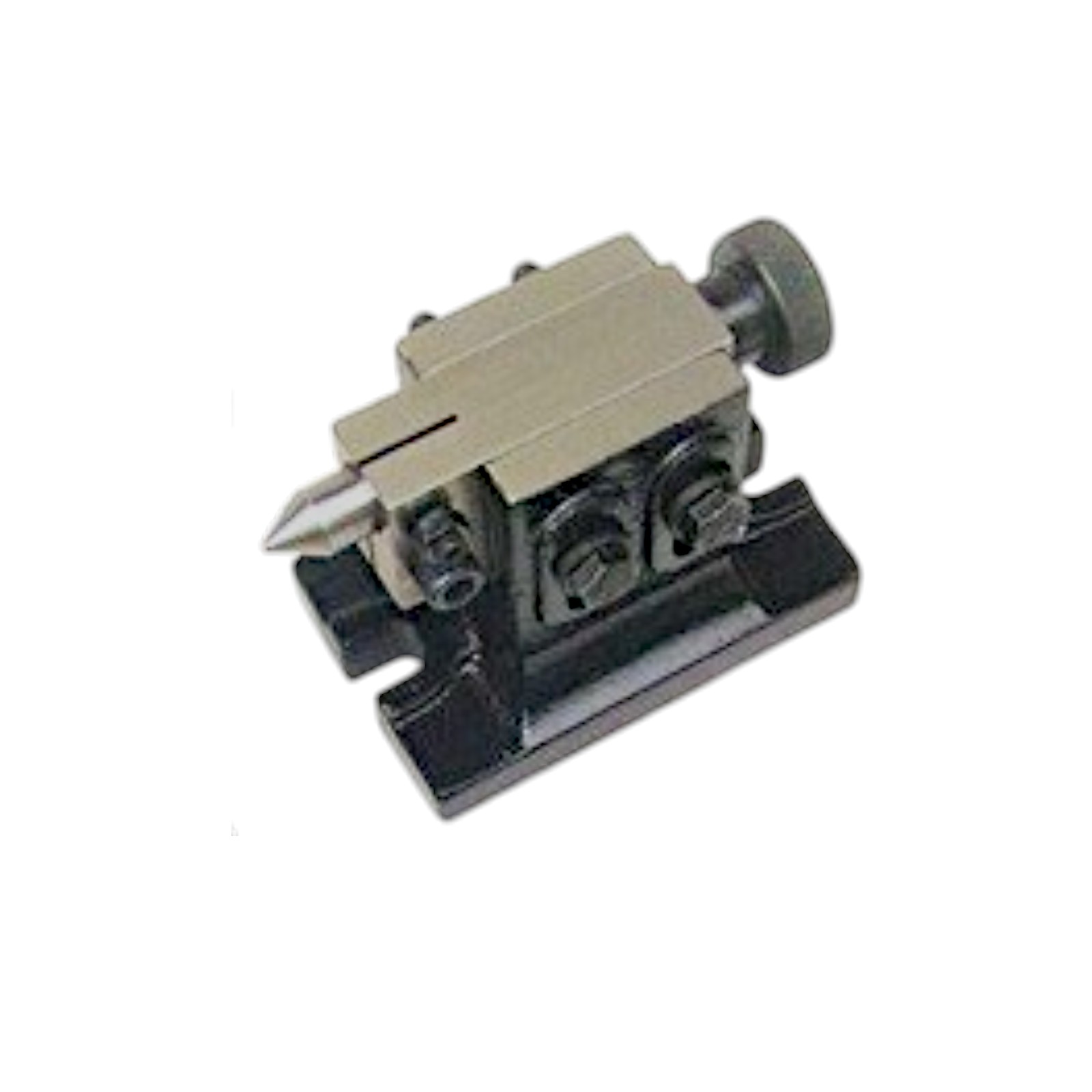

Tail Stock: Center Height form 80mm to 110mm
Clamping Kit
- This set include 4 x T Nuts with match 3″ Studs and Nuts
- 2 x 2″ Stepped Clamps
- 2- 1-3/4″ Slotted Step Clamps
