Backplate with T Nuts
Description

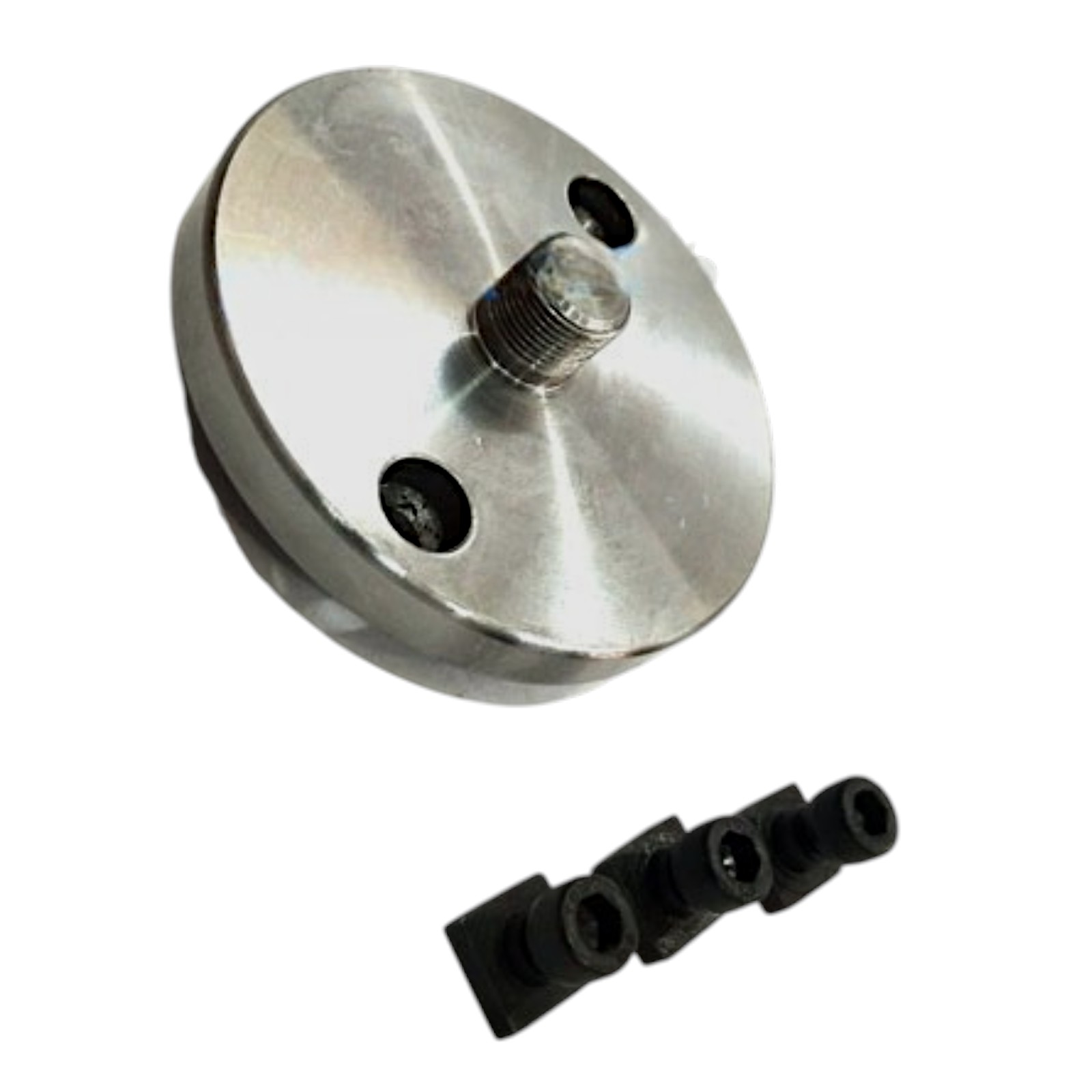

Back plates with T Nuts
- Excellent quality back plates to mount chucks on the Rotary tables.
- Manufactured from tool Steel & ground finished.
- Drilled in a manner that they fit both a 3 as well as 4 slot tables.
- In case of MT taper bore Rotary tables, the back plates are provided with an extension to fit to the centre bore so that the centre of the Table and back plate remains absolute co-centric.
- Precision Turned Backplates which allow Chuck to sit Precisely.
- Supplied with Suitable T Nuts & Washers.
ITEM
NO. | PLATE
SIZE | SUITABLE
ROTARY SIZE | EXT.
TAPER | THREAD RECESS FOR
CHUCK MOUNTING |
| 65mm | 75mm & 100mm | --- | Unimat Thread - 14 x 1 |
| 80mm | 100mm & 125mm | --- | No. Thread. Recess to Fit Chuck's recess |
| 100mm | HV4 | MT2 | No. Thread. Recess to Fit Chuck's recess |
| 125mm | HV4 / HV5 | MT2 | No. Thread. Recess to Fit Chuck's recess |
| 150mm | HV6 | MT2 | No. Thread. Recess to Fit Chuck's recess |
