Boring Tools
Description
Description
Boring tool use?
Boring tool is used for enlarging the drilling hole.
what is boring in machining?
In machining , it is the process of enlarging a hole that has already been drilled(or cast) by means of a single point cutting tool. further, reaming is a finishing operation performed with a multi-edge tool giving high-precision holes with great surface finish, superb hole quality.
Moreover, boring bar is used in metalworking and woodworking.In other words it is used to achieve greater accuracy of the diameter of a hole, and can be used to cut a tapered hole.
- made from High Speed Steel.

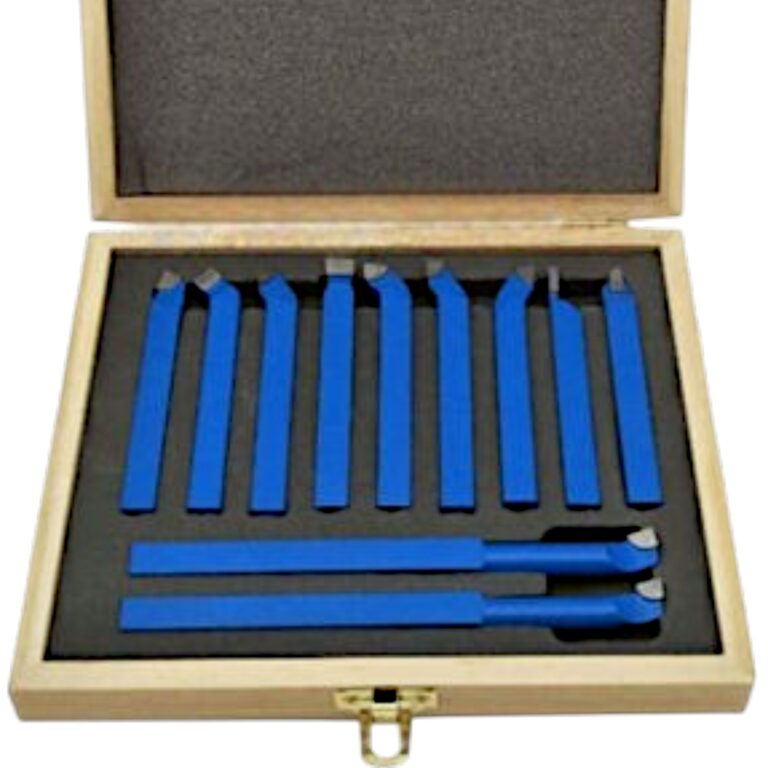

- Available in individual as well as set of 8 Pcs.,10 Pcs. & 14 Pcs.
| ITEM NO. | SHANK DIA | MINIMUM BORE | BORE DEPTH | OVERALL LENGTH |
|---|---|---|---|---|
| SBT-2341 | 3/8" | 3/16" | 9/16" | 1-13/16" |
| SBT-2342 | 3/8" | 3/16" | 15/16" | 2-3/16 |
| SBT-2343 | 3/8" | 1/4" | 3/4" | 2" |
| SBT-2344 | 3/8" | 1/4" | 1-1/4" | 2-1/2" |
| SBT-2345 | 3/8" | 5/16" | 15/16" | 2-3/16" |
| SBT-2346 | 3/8" | 5/16" | 1-9/16" | 2-3/16" |
| SBT-2347 | 3/8" | 3/8" | 1-1/8" | 2-3/8" |
| SBT-2348 | 3/8" | 3/8" | 1-7/8" | 3-1/8" |
| SBT-2349 | 1/2" | 1/4" | 3/4" | 2-1/8" |
| SBT-2350 | 1/2" | 1/4" | 1-1/4" | 2-5/8" |
| SBT-2351 | 1/2" | 5/16" | 15/16" | 2-5/16" |
| SBT-2352 | 1/2" | 5/16" | 1-9/16" | 2-15/16" |
| SBT-2353 | 1/2" | 3/8" | 1-1/8" | 2-1/2" |
| SBT-2354 | 1/2" | 3/8" | 1-7/8" | 3-1/4" |
| SBT-2355 | 1/2" | 7/16" | 1-5/16" | 2-11/16" |
| SBT-2356 | 1/2" | 7/16" | 2-3/16" | 3-9/16" |
| SBT-2357 | 1/2" | 1/2" | 1-1/2" | 2-7/8" |
| SBT-2358 | 1/2" | 1/2" | 2-1/2" | 3-7/8" |
| SBT-2359 | 5/8" | 3/8" | 1-1/8" | 2-5/8" |
| SBT-2360 | 5/8" | 3/8" | 1-7/8" | 3-3/8" |
| SBT-2361 | 5/8" | 7/16" | 1-5/16" | 2-13/16" |
| SBT-2362 | 5/8" | 7/16" | 2-3/16" | 3-11/16" |
| SBT-2363 | 5/8" | 1/2" | 1-1/2" | 3" |
| SBT-2364 | 5/8" | 1/2" | 2-1/2" | 4" |
| SBT-2365 | 5/8" | 9/16" | 1-11/16" | 3-3/16" |
| SBT-2366 | 5/8" | 9/16" | 2-13/16" | 4-5/16" |
| SBT-2367 | 5/8" | 5/8" | 1-7/8" | 3-3/8" |
| SBT-2368 | 5/8" | 5/8" | 3-1/8" | 4-5/8" |
| SBT-2369 | 3/4" | 3/8" | 1-1/8" | 2-7/8" |
| SBT-2370 | 3/4" | 3/8" | 1-7/8" | 3-5/8" |
| SBT-2371 | 3/4" | 7/16" | 1-5/16" | 3-1/16" |
| SBT-2372 | 3/4" | 7/16" | 2-3/16" | 3-15/16" |
| SBT-2373 | 3/4" | 1/2" | 1-1/2" | 3-1/4" |
| SBT-2374 | 3/4" | 1/2" | 2-1/2" | 4-1/4" |
| SBT-2375 | 3/4" | 9/16" | 1-11/16" | 3-7/16" |
| SBT-2376 | 3/4" | 9/16" | 2-13/16" | 4-9/16" |
| SBT-2377 | 3/4" | 5/8" | 1-7/8" | 3-5/8" |
| SBT-2378 | 3/4" | 5/8" | 3-1/8" | 4-7/8" |
| SBT-2379 | 3/4" | 11/16" | 2-1/16" | 3-13/16" |
| SBT-2380 | 3/4" | 11/16" | 3-7/16" | 5-3/16" |
| SBT-2381 | 3/4" | 3/4" | 2-1/4" | 4" |
| SBT-2382 | 3/4" | 3/4" | 3-3/4" | 5-1/2" |
