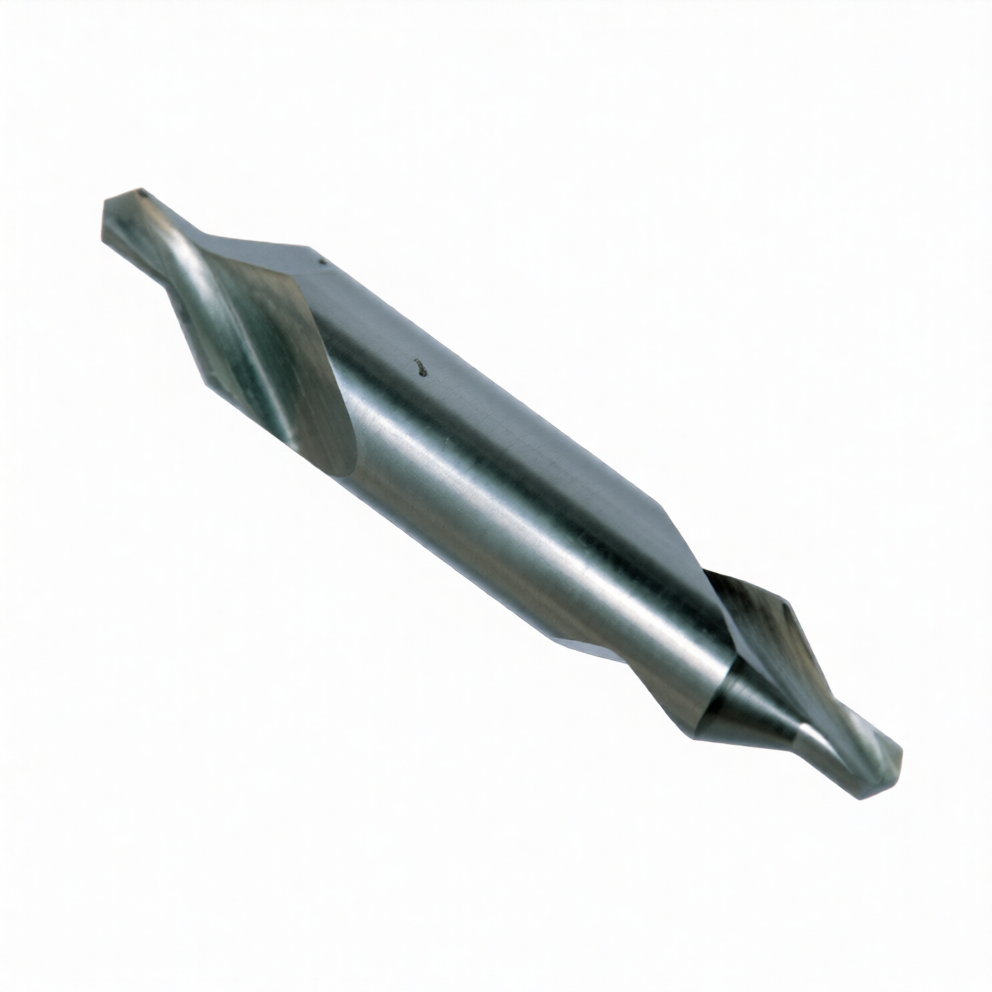

Center Drills (Combined Drills & Countersinks)
Description
Center drills are used to produce a centre hole on a workpiece for turning between centers .That is, they provide a location for a (live, dead, or driven) center to locate the part about an axis. In other words Combined drills and countersinks, commonly called centre drills.
Being a successful name in the industry( simrantools international) , we are engaged in offering a wide range of Center Drills that has gained wide acceptability by the clients across the market around the world . Using latest technology and advanced tools, our prestigious engineers manufacture these drills using high grade raw material.
Further, our team of experienced testers test these drill on various quality parameters. With this in mind , The prices of the offered drills are set according to the market standards.
Features:
- Compact design
- Durability
- Dimensional accuracy
- Made from High Speed Steel.
- Used for Producing Center holes in Components or Workpieces which require machining between centers.
- 60° Countersink Angle fits all Standard Centers.
- Plain Type available in 60°, 82° or 90° Angle, also available with Standard and Long Lengths.
| ITEM NO. | DIA. BODY | DIA. PILOT | TOTAL LENGTH |
|---|---|---|---|
| SCD-1961 | 1/8" | 3/64" | 1-1/4" |
| SCD-1962 | 3/16" | 5/64" | 1-7/8" |
| SCD-1963 | 1/4" | 7/64" | 2" |
| SCD-1964 | 5/16" | 1/8" | 2-1/8" |
| SCD-1965 | 3/8" | 9/64" | 2-1/2" |
| SCD-1966 | 7/16" | 3/16" | 2-3/4" |
| SCD-1967 | 1/2" | 7/32" | 3" |
| SCD-1968 | 5/8" | 1/4" | 3-1/4" |
| SCD-1969 | 3/4" | 5/16" | 3-1/2" |
| SCD-1970 | 7/8" | 11/32" | 3-5/8" |
| SCD-1971 | 1" | 3/8" | 3-3/4" |
H.S.S. STANDARD TYPE (M.M)
| ITEM NO. | DIA. BODY | DIA. PILOT | TOTAL LENGTH |
|---|---|---|---|
| SCD-1981 | 3.15 mm | 1.00 mm | 31.5 mm |
| SCD-1982 | 3.15 mm | 1.25 mm | 31.5 mm |
| SCD-1983 | 4.00 mm | 1.60 mm | 35.5 mm |
| SCD-1984 | 5.00 mm | 2.00 mm | 40.0 mm |
| SCD-1985 | 6.30 mm | 2.50 mm | 45.0 mm |
| SCD-1986 | 8.00 mm | 3.15 mm | 50.0 mm |
| SCD-1987 | 10.00 mm | 4.00 mm | 56.0 mm |
| SCD-1988 | 12.50 mm | 5.00 mm | 63.0 mm |
| SCD-1989 | 16.00 mm | 6.30 mm | 71.0 mm |
| SCD-1990 | 20.00 mm | 8.00 mm | 83.0 mm |
| SCD-1991 | 25.00 mm | 10.00 mm | 103.0 mm |
