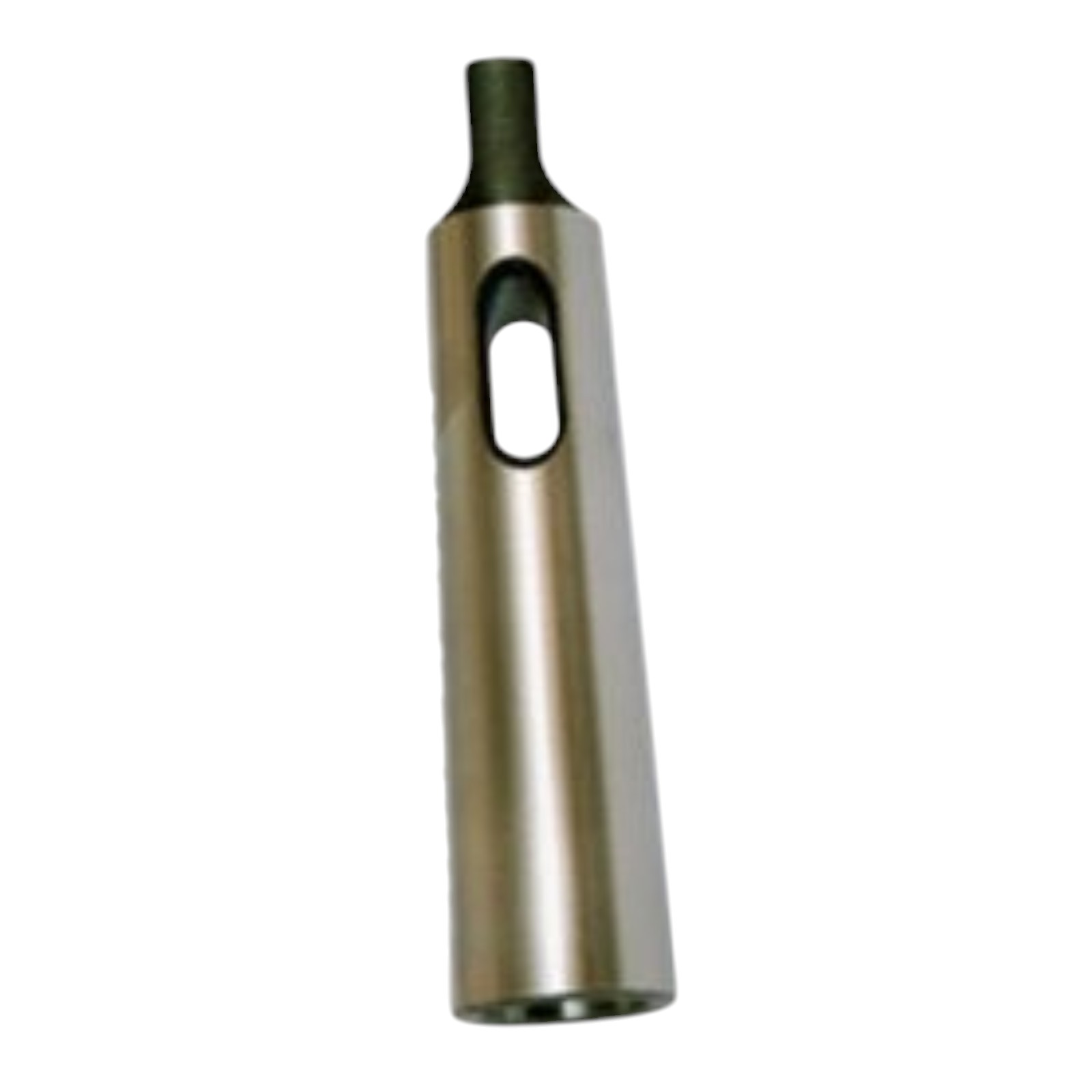

Drill Sleeves- Reduction sleeves
Description
Morse Taper Drill sleeves/ reduction sleeves used for holding tapered shank twist drills that are too small for the tapered hole in the spindle or the drilling machine.
The cocentricity and taper angles are precisely controlled which allows perfect locking and concentric movement to the tool held. These are available in two types: A Grade – (Hardened and Ground) & Workshop Grade.
Drill sleeves/ Reduction sleeves specification
- Available in both Soft and Hard type.
- Available in Workshop Grade & A Grade.
- A Grade Made of Carbon Steel Hardened and Ground Internally and Externally.
- Workshop Grade made from Carbon Steel, External Ground and Internal Reamed Carbon Steel.
- Adapts smaller morse taper shanks tool to larger machine spindles .
- also known as extension sockets.
| SOFT TYPE ITEM NO. | HARDENED TYPE ITEM NO. | MORSE TAPER HOLE | MORSE TAPER OUTSIDE |
|---|---|---|---|
| SDS-0245 | SDS-0257 | 1 | 2 |
| SDS-0246 | SDS-0258 | 1 | 3 |
| SDS-0247 | SDS-0259 | 1 | 4 |
| SDS-0248 | SDS-0260 | 1 | 5 |
| SDS-0249 | SDS-0261 | 2 | 3 |
| SDS-0250 | SDS-0262 | 2 | 4 |
| SDS-0251 | SDS-0263 | 2 | 5 |
| SDS-0252 | SDS-0264 | 3 | 4 |
| SDS-0253 | SDS-0265 | 3 | 5 |
| SDS-0254 | SDS-0266 | 4 | 5 |
| SDS-0255 | SDS-0267 | 4 | 6 |
| SDS-0256 | SDS-0268 | 5 | 6 |
