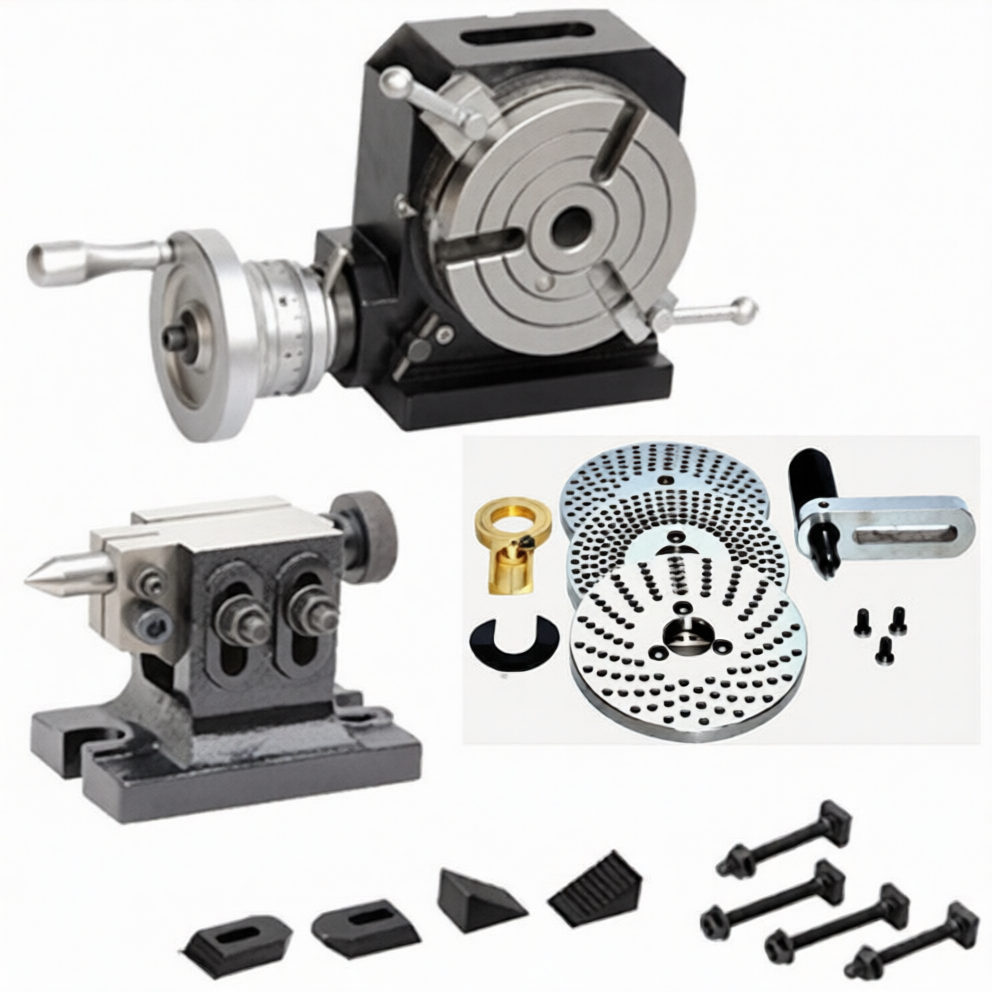

HV4 Rotary Table Set 4″ (110 mm)
Description

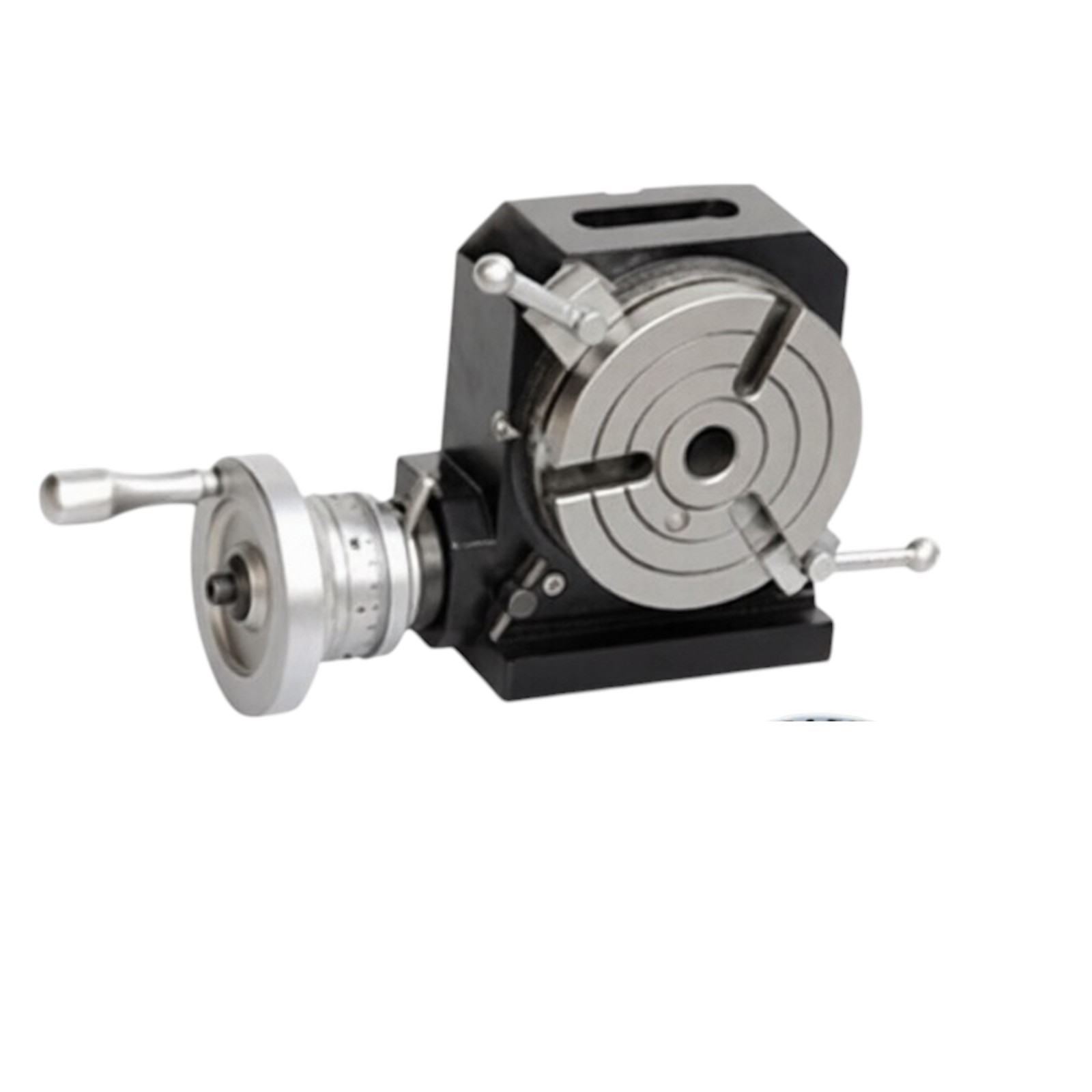

HV4 Rotary Tables Set 4″ (110 mm)
- This Rotary Table is manufactured from Close Grained Graded Cast Iron
- Table Diameter 4″ (110 mm)
- Rotary Table Can be used either Horizontally or Vertically.
- Table has a height of 3″ (75 mm)
- Center Bore MT-2
- Gear Ratio 90 : 1
- This Rotary Table has three 6 mm T- Slots
- These tables has a totally ground finish which provides high precision and smooth rotation.

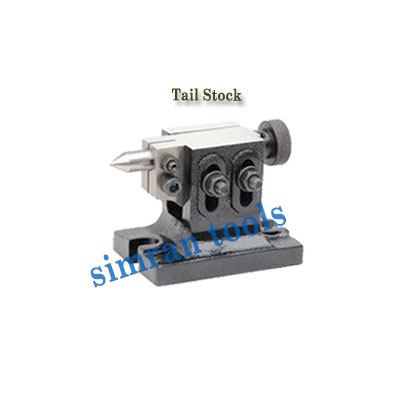

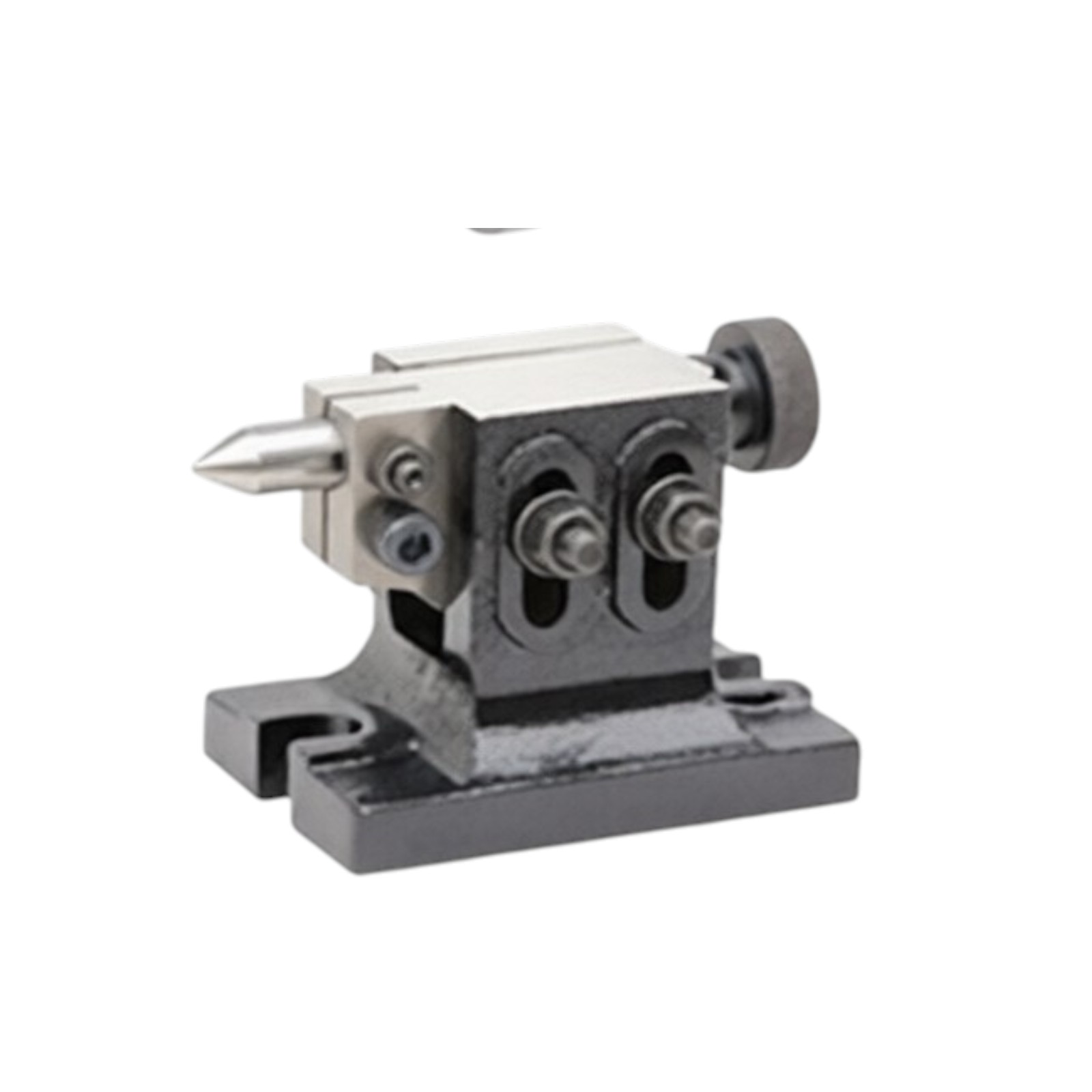

Tail Stock
- Center Height form 80 to 110mm
- Base Size 130 x 95 mm
- A substantially made Tailstock with center height adjustable over the range 80 to 110 mm.
- The base size is 130 x 95 mm and there are 15 mm wide slots at the two ends for securing it to the machine table.
Dividing Set
- This excellent dividing attachment can easily be fitted to the HV6 Rotary Table.
- A Plate 15, 16, 17, 18, 19, 20
- B Plate 21, 23, 27, 29, 31, 33
- C Plate 37, 39, 41, 43, 47, 49
Also included are all necessary screw, washers and handle etc.
Clamping Kit
- This set comprises 4 x T Nuts with matching 3″ Studs and Nuts
- 2 x 2″ Stepped Clamps
- 2 x 1-3/4″ Slotted Step Clamps
