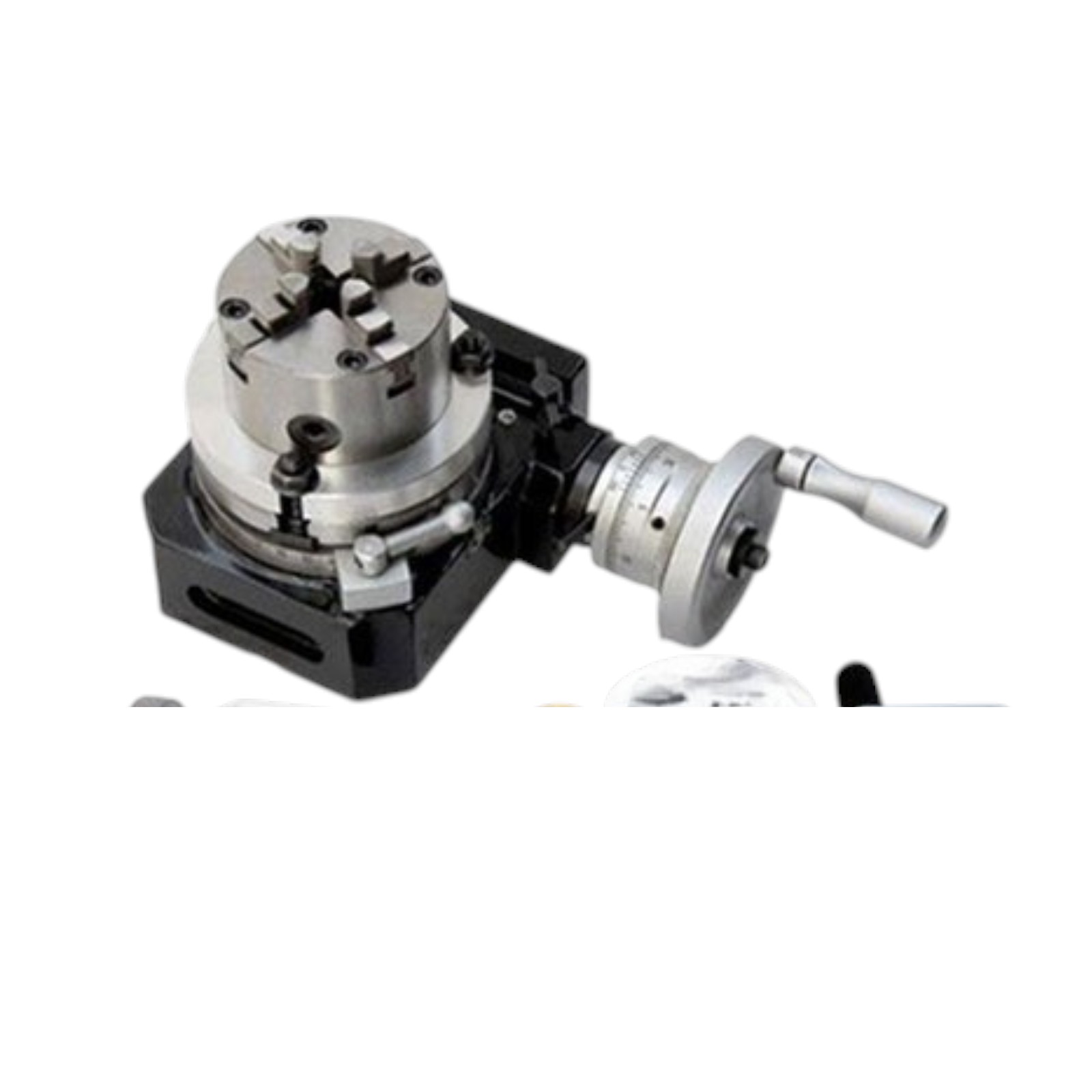

HV4 Rotary Table Set with Chuck

HV4 Rotary Tables Set with Chuck

• This Rotary Table is manufactured from Close Grained Graded Cast Iron
• Table Diameter 4″ (110 mm)
• Rotary Table Can be used either Horizontally or Vertically.
• Table has a height of 3″ (75 mm)
• Center Bore MT-2
• Gear Ratio 90 : 1
• This Rotary Table has three 6 mm T- Slots
• These tables has a totally ground finish which provides high precision and smooth rotation.

HV Rotary Table Set include:-

• 4 Jaws Independent Chuck 70 mm
• 4 Jaws independent chuck provided with backplate

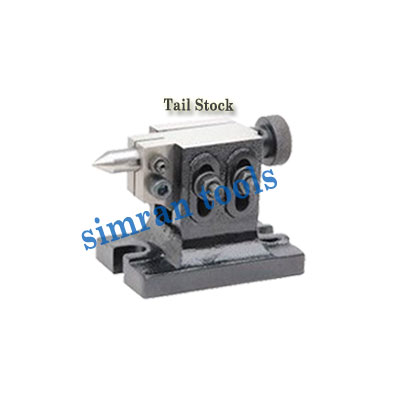

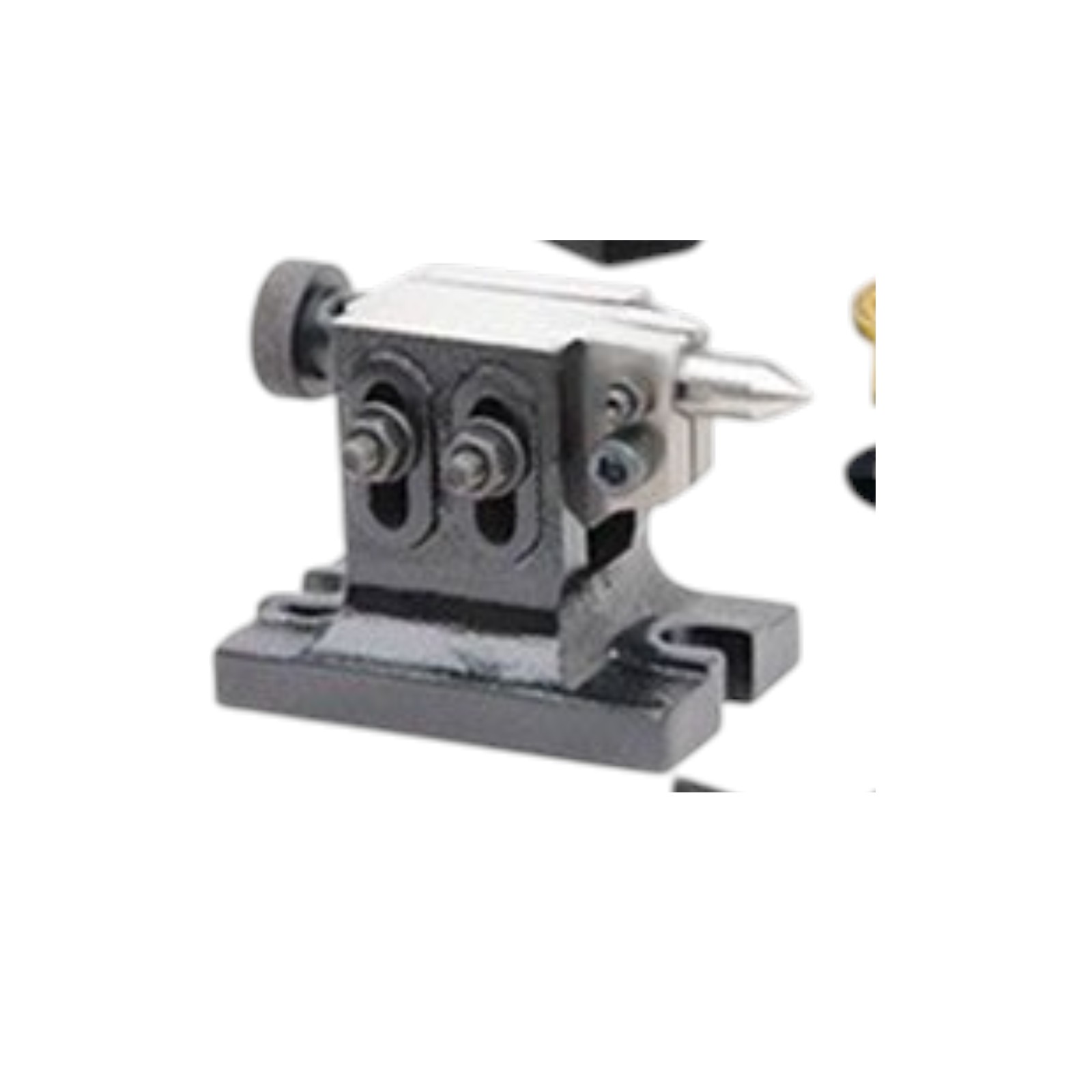

Tail Stock

• Center Height form 80 to 110mm
• Base Size 130 x 95 mm
• A substantially made Tailstock with center height adjustable over the range 80 to 110 mm.
• The base size is 130 x 95 mm and there are 15 mm wide slots at the two ends for securing it to the machine table.

Dividing Set

• This excellent dividing attachment can easily be fitted to the HV Rotary Table.
• A Plate 15, 16, 17, 18, 19, 20
• B Plate 21, 23, 27, 29, 31, 33
• C Plate 37, 39, 41, 43, 47, 49

Also included are all necessary screw, washers and handle etc.

Clamping Kit

• This set comprises 4 x T Nuts with matching 3″ Studs and Nuts
• 2 x 2″ Stepped Clamps
• 2 x 1-3/4″ Slotted Step Clamps
