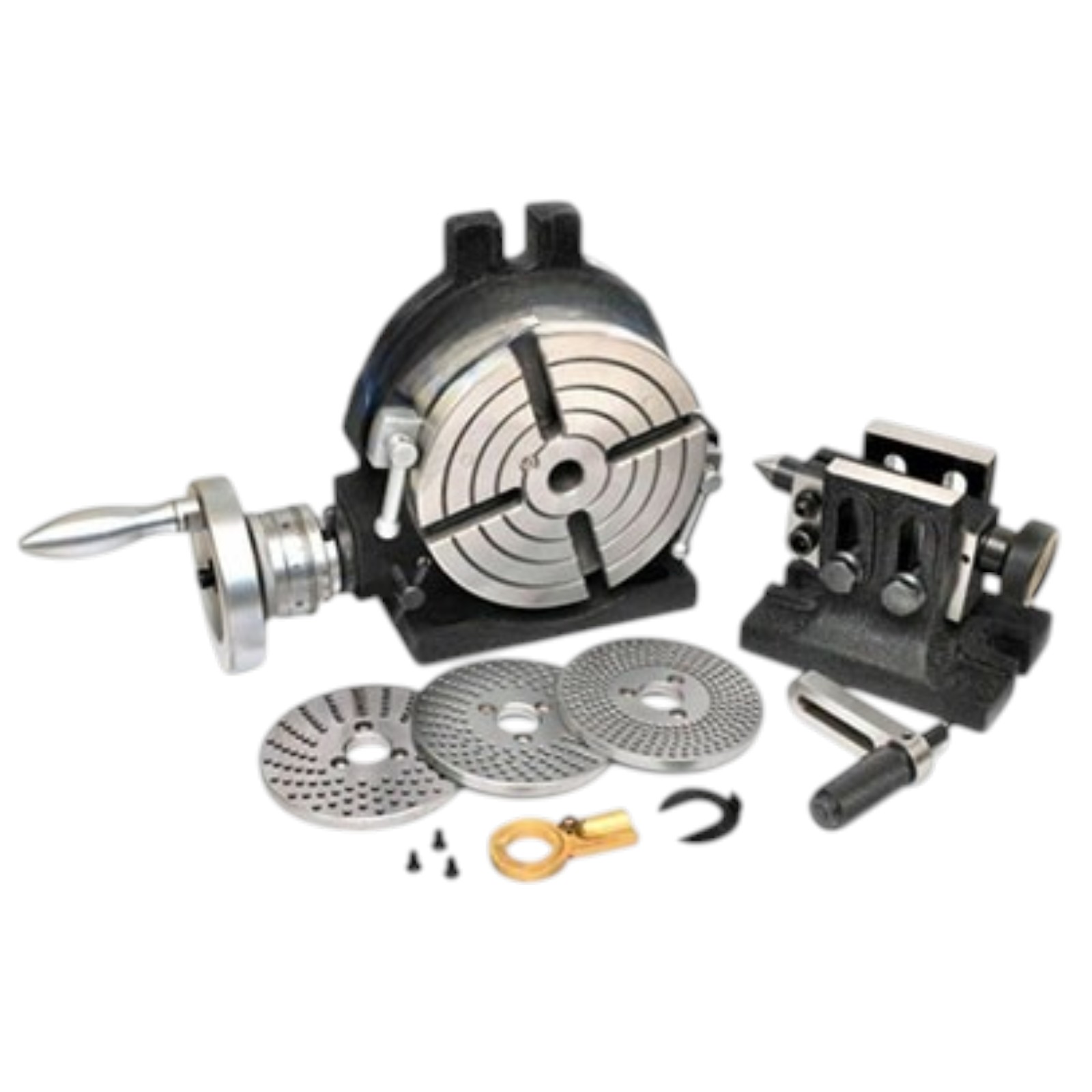

HV6 Rotary Table & Tailstock & Indexing Plates Set
Description

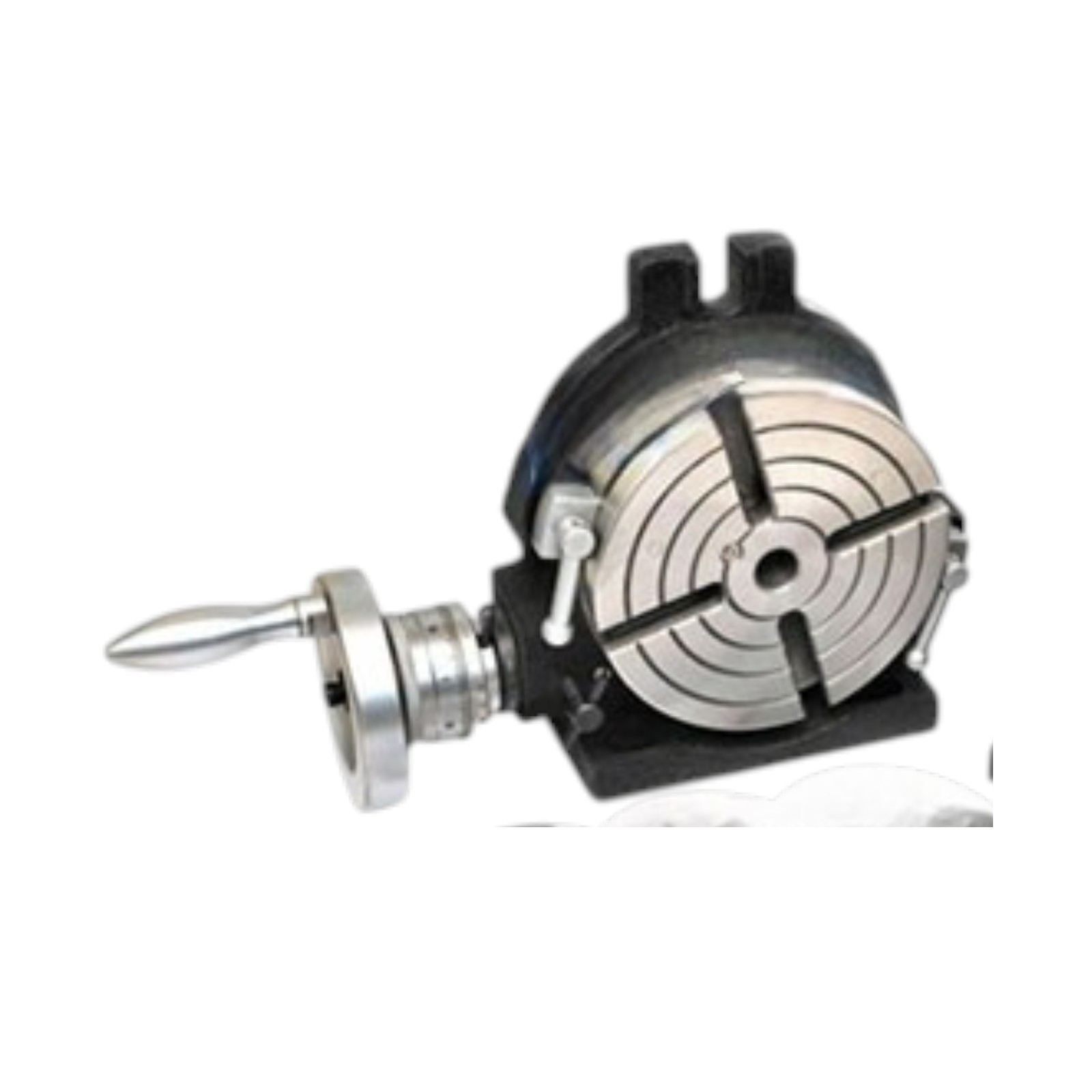

HV6 Rotary Tables & Tailstock & Indexing Plates Set
Manufactured from High Grade Seasoned Casting and Powder Coated wrinkled finish for smooth looks
- Table Diameter 6″ (150 mm)
- Overall Height 3-1/4″ (80 mm)
- Center Height in vertical position 105 mm
- Center Bore MT-2
- Gear Ratio 90 : 1
- T Slot 16mm
- Horizontal Height apporx. 80 mm from Base to Top surface of Chuck
- Chrome Dials Graduated 360 degree around its circumference.
- Also available in HV8 : 200 mm
Dividing Plate Set
- A Plate: 15, 16, 17, 18, 19, 20
- B Plate: 21, 23, 27, 29, 31, 33
- C Plate: 37, 39, 41, 43, 47, 49
- Comes complete with neccessary screw and washers and handles

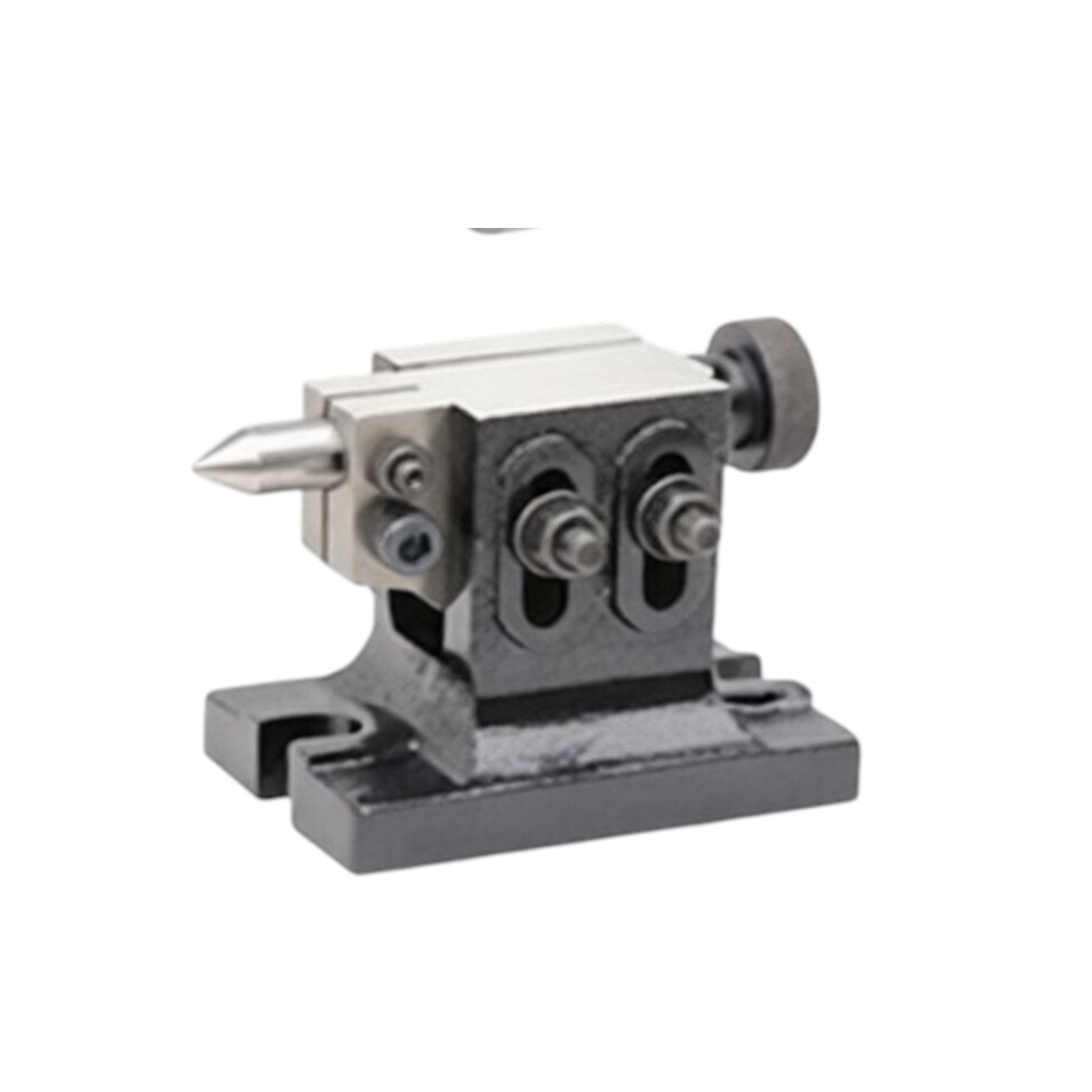

Tail Stock
- Heavy Duty & Manufactured form Closed Grained Cast Iron
- Center Height adjustable to 80 – 100mm
