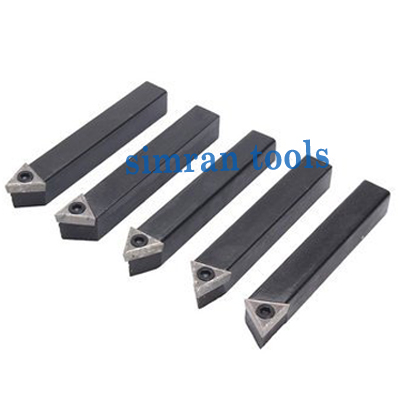

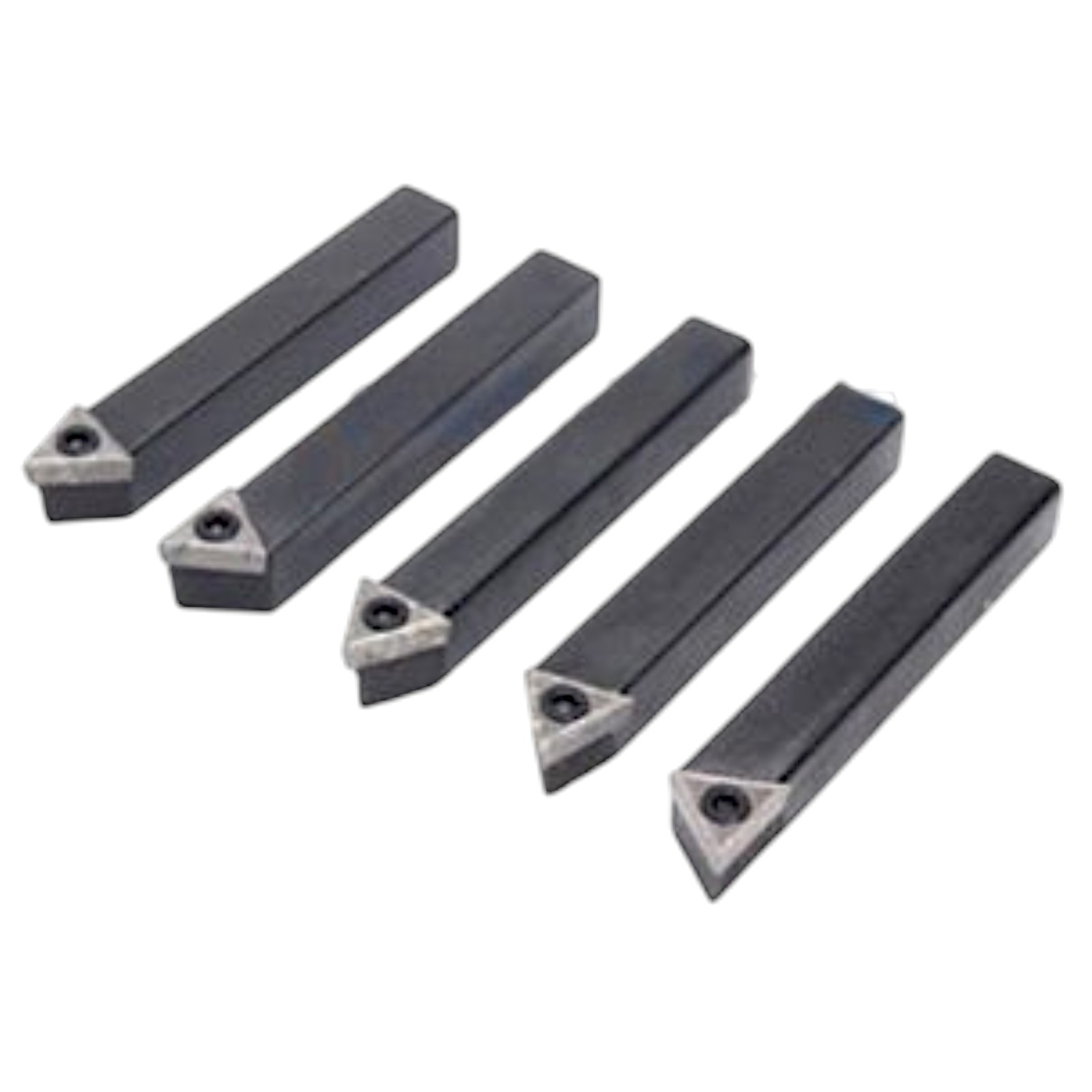

Indexable Carbide Turning Tool Holders
Description
STYLE
- Style TE: Neutral Threading Tool 60 degree included angle; used for universal threading,
V-grooving, Chamfering, turning, boring & faciing - Style TBL: Left Hand 15 degree lead angle for rough facing to center or where no shoulder is needed
- Style TAL: Left Hand suitable for facing to a square shoulder
- Style TBR: Right Hand 15 degree lead angle for rough turning where a square shoulder is not needed
- Versatility of cutting in any direction
- Built in chip breaker groove
- Heat treated and hardened shank
- No. grinding – no tool resetting
- Economical alternative to brazed tool tips
- Available with or without inserts.
| ITEM NO. | SHANK SIZE | INSERT I.C. | OVERALL LENGTH |
|---|---|---|---|
| SIC-0943 | 3/8" | 1/4" | 2-1/2" |
| SIC-0944 | 1/2" | 3/8" | 3-1/2" |
| SIC-0945 | 5/8" | 3/8" | 4" |
| SIC-0946 | 3/4" | 3/8" | 4-1/2" |
| SIC-0947 | 1" | 1/2" | 6" |
