Knurling wheels- Spare knurls
|
|
esp |
Moletas |
|
fr |
Molettes HSS |
|
de |
Knolen |
|
Description

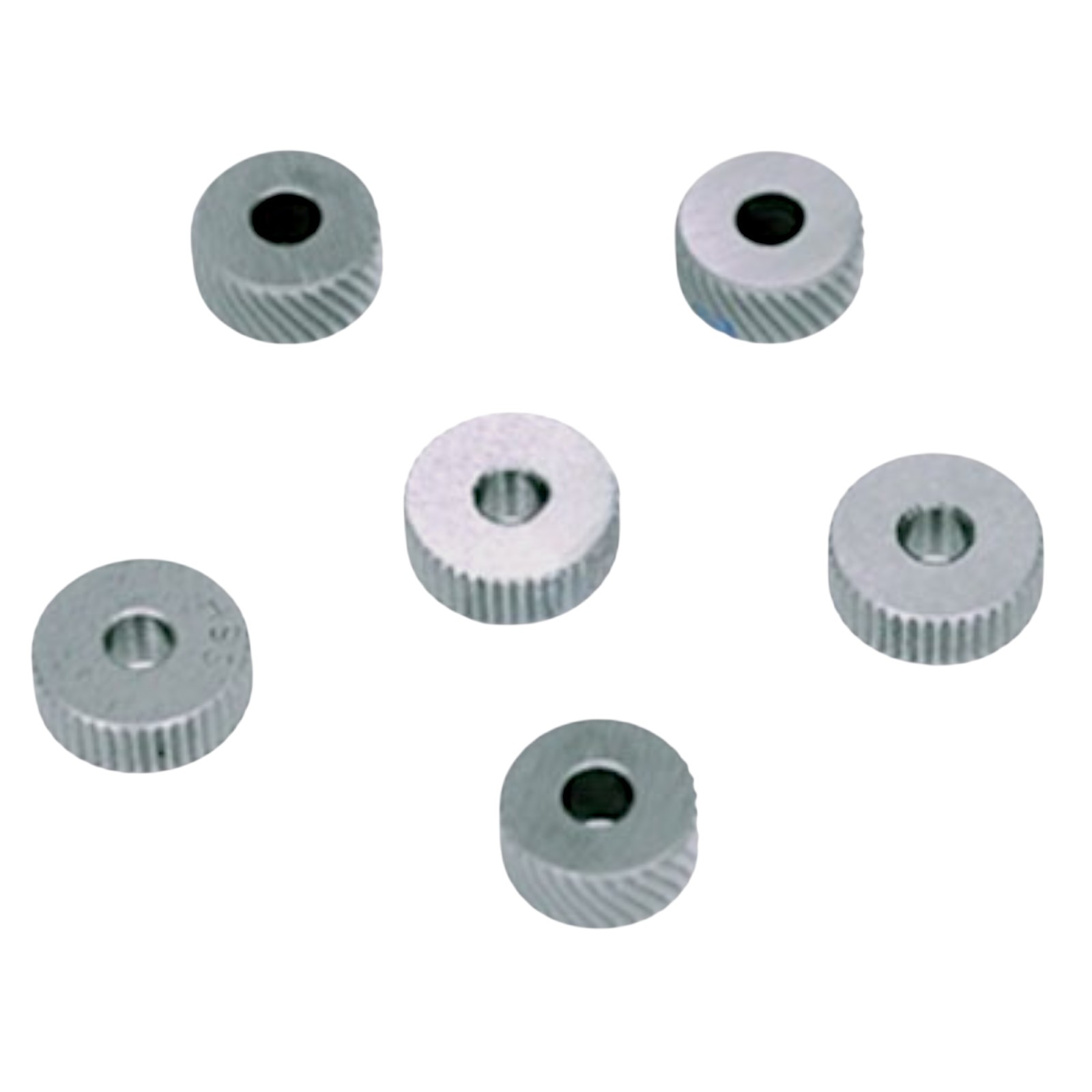

Knurling wheels( spare knurls) finished in pairs to fit all standard makes of knurling Tools. Knurling is a manufacturing process, typically conducted on a lathe
Knurls available with us in many shapes like Extra Fine, Medium, Coarse, Left, Right, Straight and Checkered. Diamond pattern knurls , provided as a set of right hand and Left Hand knurl.
- Made of High Speed Steel.
- Knurls , individually cut to obtain sharp, perfectly formed teeth.
- Heat treated, tempered and tested.
- Diamond Pattern Knurls , provided as a set of Right Hand and Left Hand Knurl.
DIAMOND PATTERN | STRAIGHT LINE PATTERN | KNURL DIMENSIONS |
ITEM NO. | ITEM NO. | DIA. | FULL FACE WIDTH | HOLES DIS. | PITCH |
SSK-820 | SSK-830 | 5/8" | 5/16" | 7/32" | 14 |
SSK-821 | SSK-831 | 5/8" | 5/16" | 7/32" | 21 |
SSK-822 | SSK-832 | 5/8" | 5/16" | 7/32" | 33 |
SSK-823 | SSK-833 | 3/4" | 3/8" | 1/4" | 14 |
SSK-824 | SSK-834 | 3/4" | 3/8" | 1/4" | 21 |
SSK-825 | SSK-835 | 3/4" | 3/8" | 1/4" | 33 |
SSK-826 | SSK-836 | 1" | 3/8" | 5/16" | 14 |
SSK-827 | SSK-837 | 1" | 3/8" | 5/16" | 21 |
SSK-828 | SSK-838 | 1" | 3/8" | 5/16" | 33 |
