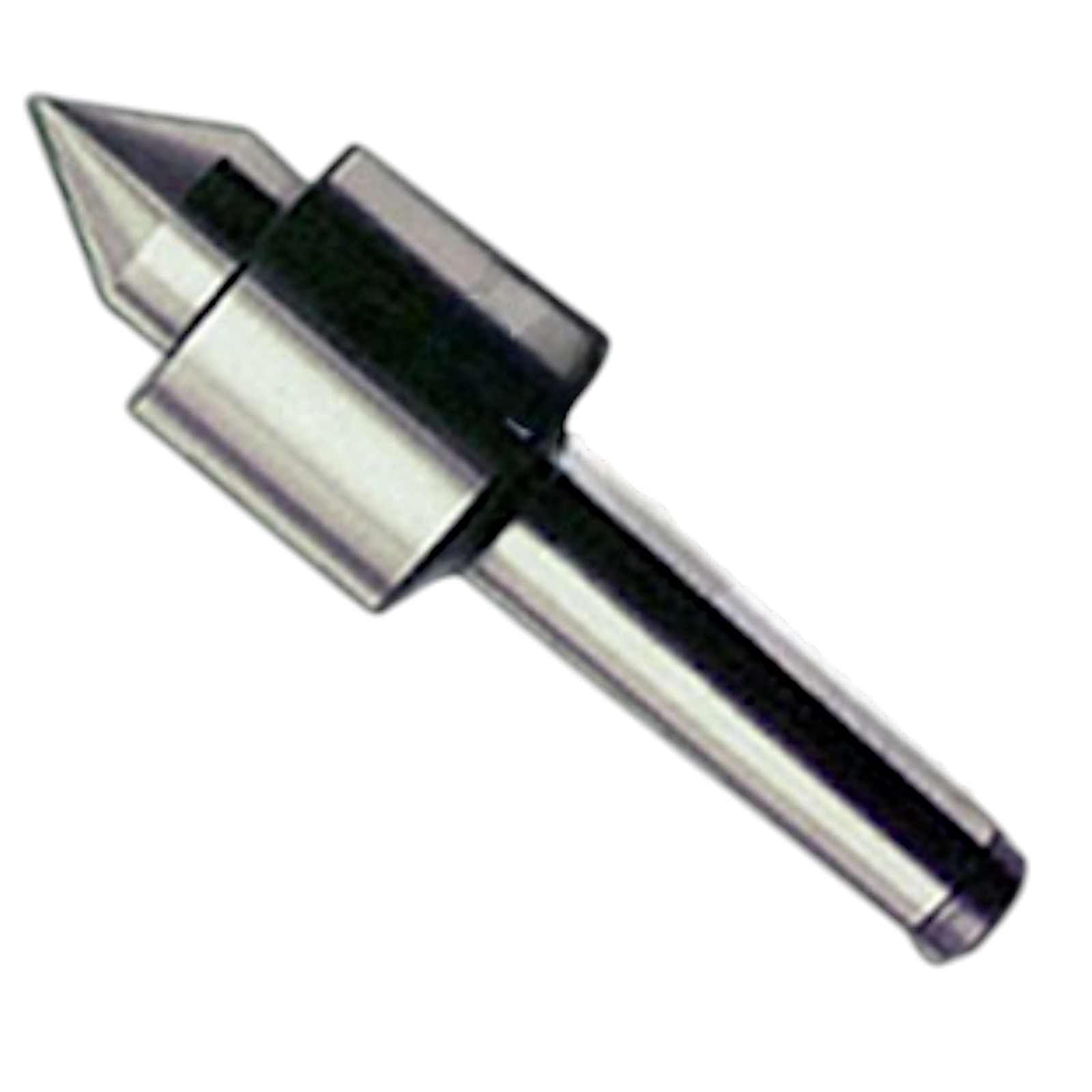

Live Center- Revolving Center
Description
Live center also known as revolving center , is constructed so that the 60° center runs in its own bearings and is used at the non-driven or tailstock end of a machine. It allows higher turning speeds without the need for separate lubrication, and also greater clamping pressures.
Live center has a 60 degree cone that spins smoothly. Cone is made with high quality precision bearings.
- Manufactured from high grade steel hardened point to impart extra strength.
- Hardened and ground with 600 point.
- Moreover, Speed capacity up to 2500 RPM.
- One double row Ball Bearing, one Thrust Bearing and one Needle Roller Bearing.
- Run out within .0002″ (.005 mm).
| ITEM NO. | MORSE TAPER | BODY DIA. | POINT DIA. | LENGTH OF POINT | |||
|---|---|---|---|---|---|---|---|
| SEC-0350 | MT 2 | 1-5/8" | 40 mm | 15/16" | 24 mm | 1-3/32" | 28 mm |
| SEC-0351 | MT 3 | 1-7/8" | 47 mm | 1-1/2" | 38 mm | 1-7/16" | 36 mm |
| SEC-0352 | MT 4 | 2-3/16" | 55 mm | 1-11/16" | 44 mm | 1-11/16" | 43 mm |
| SEC-0353 | MT 5 | 2-3/4" | 70 mm | 2-1/8" | 55 mm | 2" | 51 mm |
