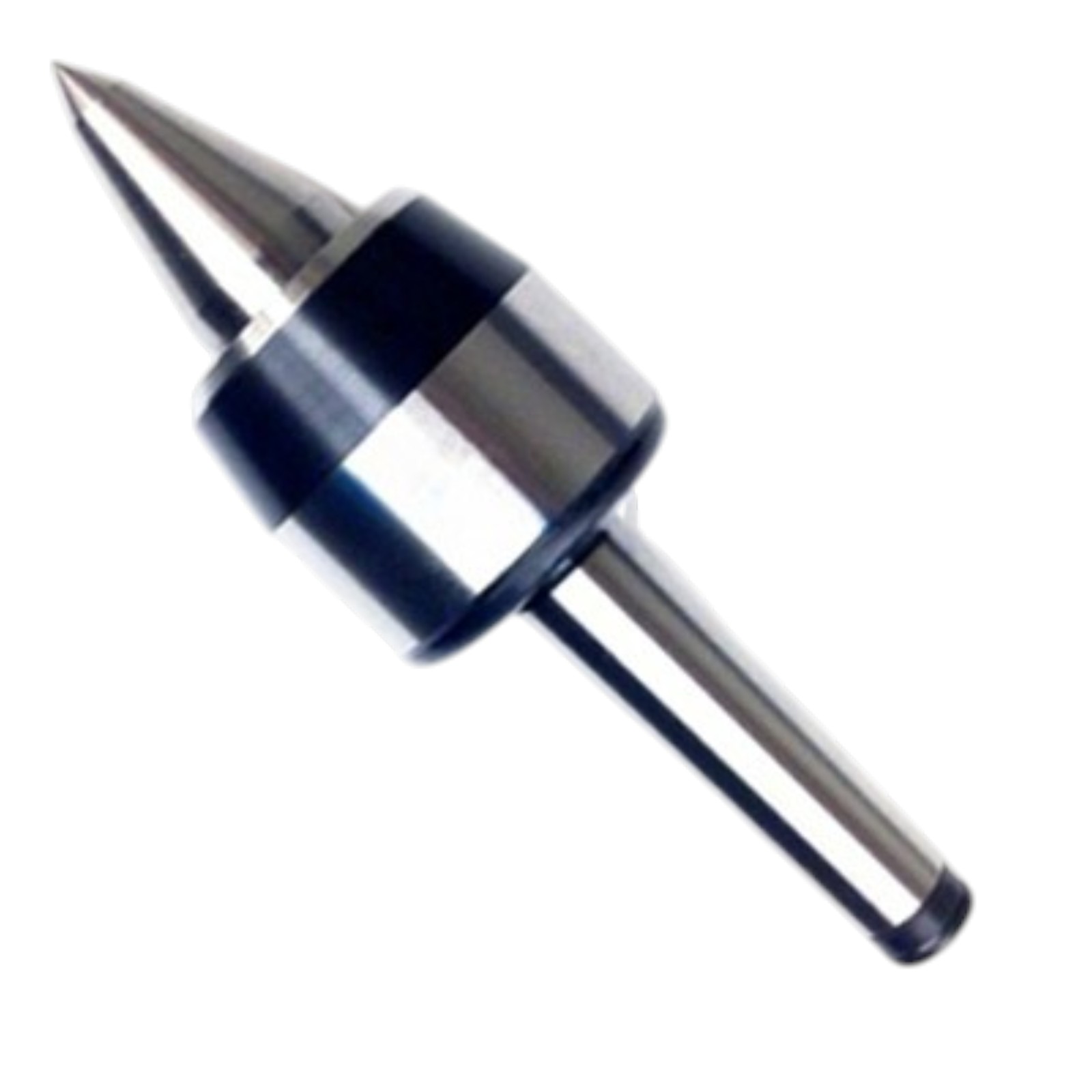

Live Center / Revolving Center – High Precision with Extended Nozzle
Description
Live Center / Revolving Center – High Precision with Extended Nozzle
- Available in Plain & Carbide Nozzle
- Extended points gives extra tool clearance for safe approach of the tool holder.
- Made of Hardened & Ground High Carbon Steel.
- Used on CNC Lathes.
- Eccentricity Between .005 – .010
- Consists of Triple Bearing
- Double angular contact bearing, Thrust bearing & Needle roller bearing.
PLAIN NOZZLE
ITEM NO.
| CARBIDE NOZZLE
ITEM NO. | MORSE
TAPER | TIP
DIA. | BODY
DIA. | OVERALL
LENGTH | MAX.
RPM |
SLC-5635 | SLC-5645 | 2 | 18 | 44 | 146 | 3500 |
SLC-5636 | SLC-5646 | 3 | 23 | 61 | 181 | 3500 |
SLC-5637 | SLC-5647 | 4 | 28 | 70 | 217 | 3500 |
SLC-5638 | SLC-5648 | 5 | 34 | 88 | 258 | 2500 |
