Live Center / Revolving Center – High Precision with Standard Nozzle
Description

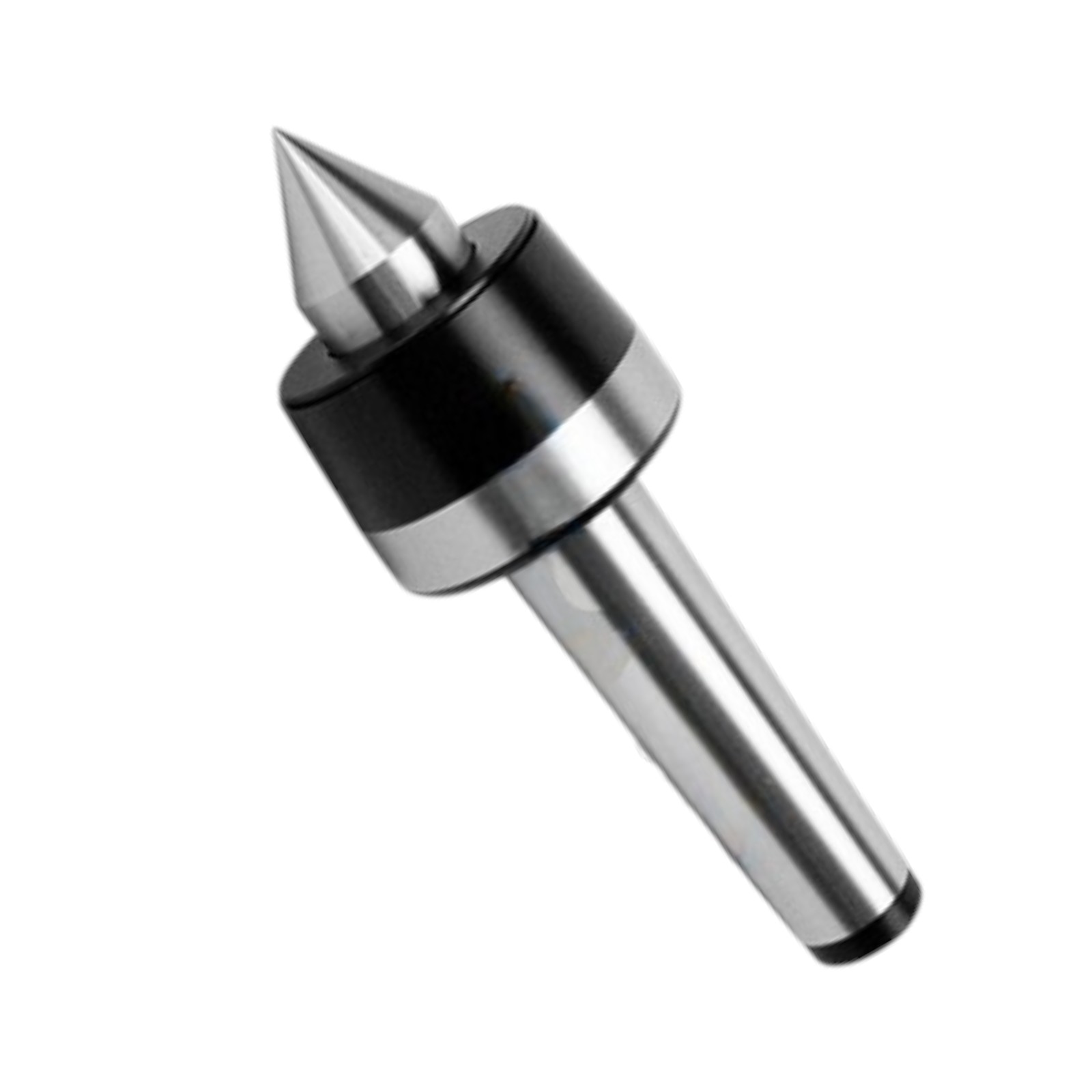

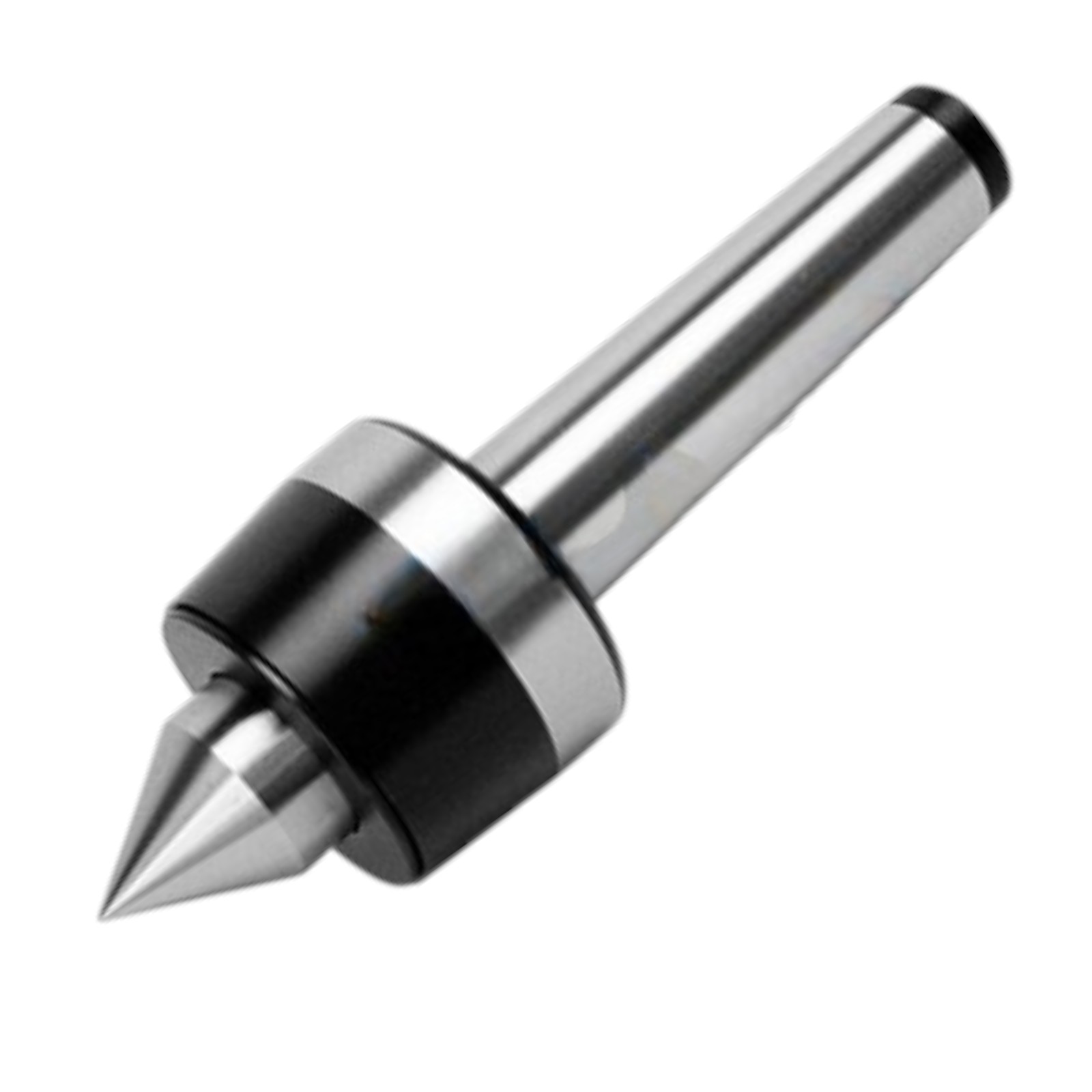

Live Center / Revolving Center – High Precision with Standard Nozzle .
- Available in Plain & Carbide Nozzle
- Made of Hardened & Ground High Carbon Steel.
- Used on CNC Lathes.
- Eccentricity Between .005 – .010
- Consists of Triple Bearing
- Double angular contact bearing, Thrust bearing & Needle roller bearing.
| PLAIN NOZZLE ITEM NO. | CARBIDE NOZZLE ITEM NO. | MORSE TAPER | TIP DIA. | BODY DIA. | OVERALL LENGTH | MAX. RPM |
|---|---|---|---|---|---|---|
| SLC-5615 | SLC-5625 | 2 | 18 | 44 | 138 | 3500 |
| SLC-5616 | SLC-5626 | 3 | 23 | 61 | 169 | 3500 |
| SLC-5617 | SLC-5627 | 4 | 28 | 70 | 205 | 3500 |
| SLC-5618 | SLC-5628 | 5 | 34 | 88 | 242 | 2500 |
