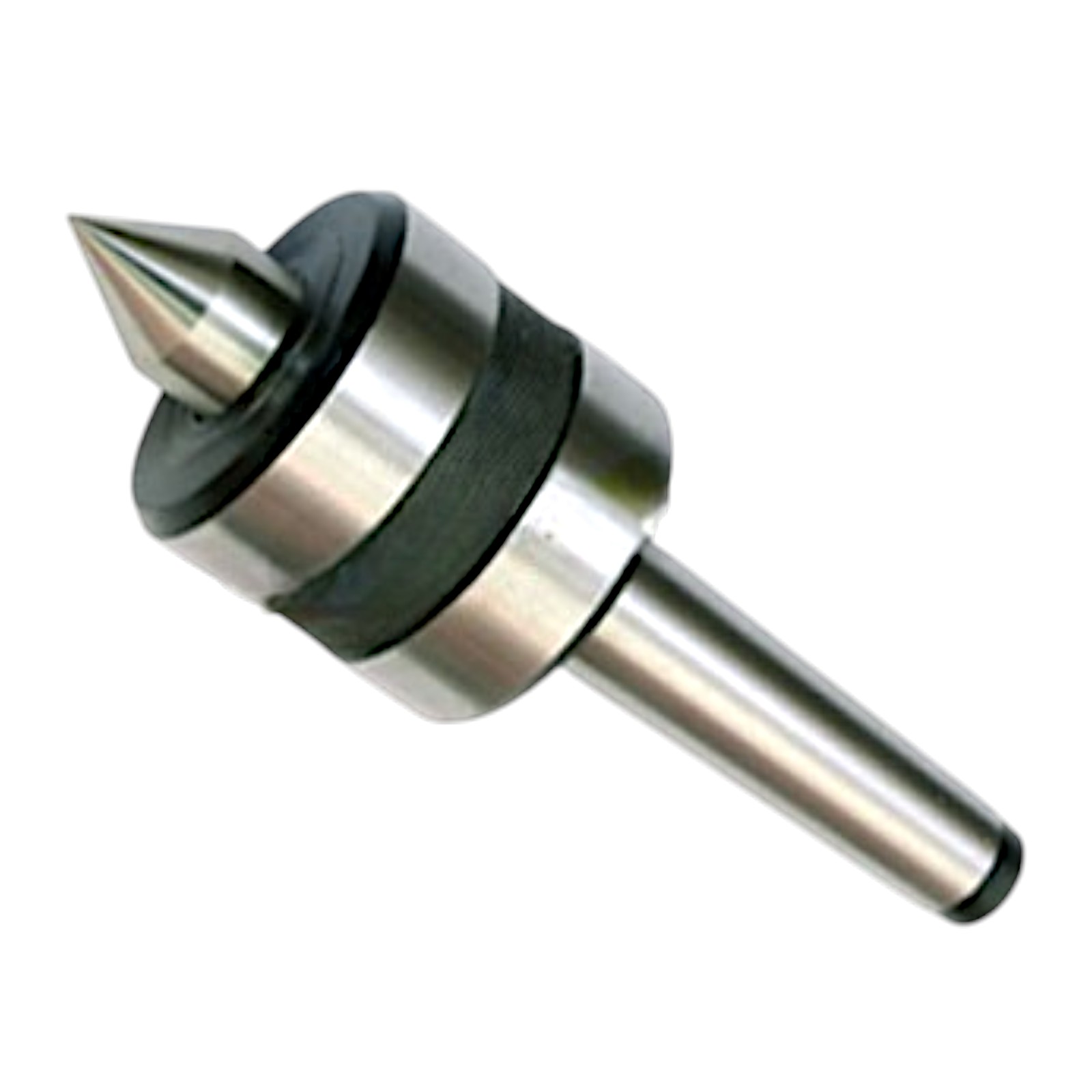

Live Center / Revolving Center (Triple Bearing)
Description
Features:
-Mainly for processing lathe shaft parts.
-With the center hole positioning, so that be processed parts to get a high dimensional accuracy.
-As the product of high precision, mainly for processing shaft parts,
-With the help of the top hole positioning, the processing of parts to obtain a higher accuracy.
-High quality triple bearing design (bearings are immersed & sealed).
- Consists of Three anti-friction Steel bearings.
One needle roller bearing, one thrust ball bearing
and one deep groove ball bearing. - Well lubricated to protect against contaminants and coolants.
- Hardened and Ground (60-62 HRC) Steel with 60° tip angle.
- Run out within .0002″ (.005 mm).
- Bearings are Pre- loaded and pressed to avoid starting loads.
| ITEM NO. | MORSE TAPER | POINT DIA. | BODY DIA. | OVERALL LENGTH | |||
|---|---|---|---|---|---|---|---|
| SRC-0321 | MT 2 | 27/32" | 21 mm | 2 | 50 mm | 6 | 150 mm |
| SRC-0322 | MT 3 | 15/16" | 24 mm | 2-3/8 | 60 mm | 7-1/4 | 185 mm |
| SRC-0323 | MT 4 | 1-1/8" | 28 mm | 2-1/2 | 62 mm | 8-5/8 | 220 mm |
| SRC-0324 | MT 5 | 1-1/2" | 36 mm | 3 | 75 mm | 10-1/4 | 260 mm |
| SRC-0325 | MT 6 | 2-1/4" | 56 mm | 4 | 100 mm | 14 | 355 mm |
