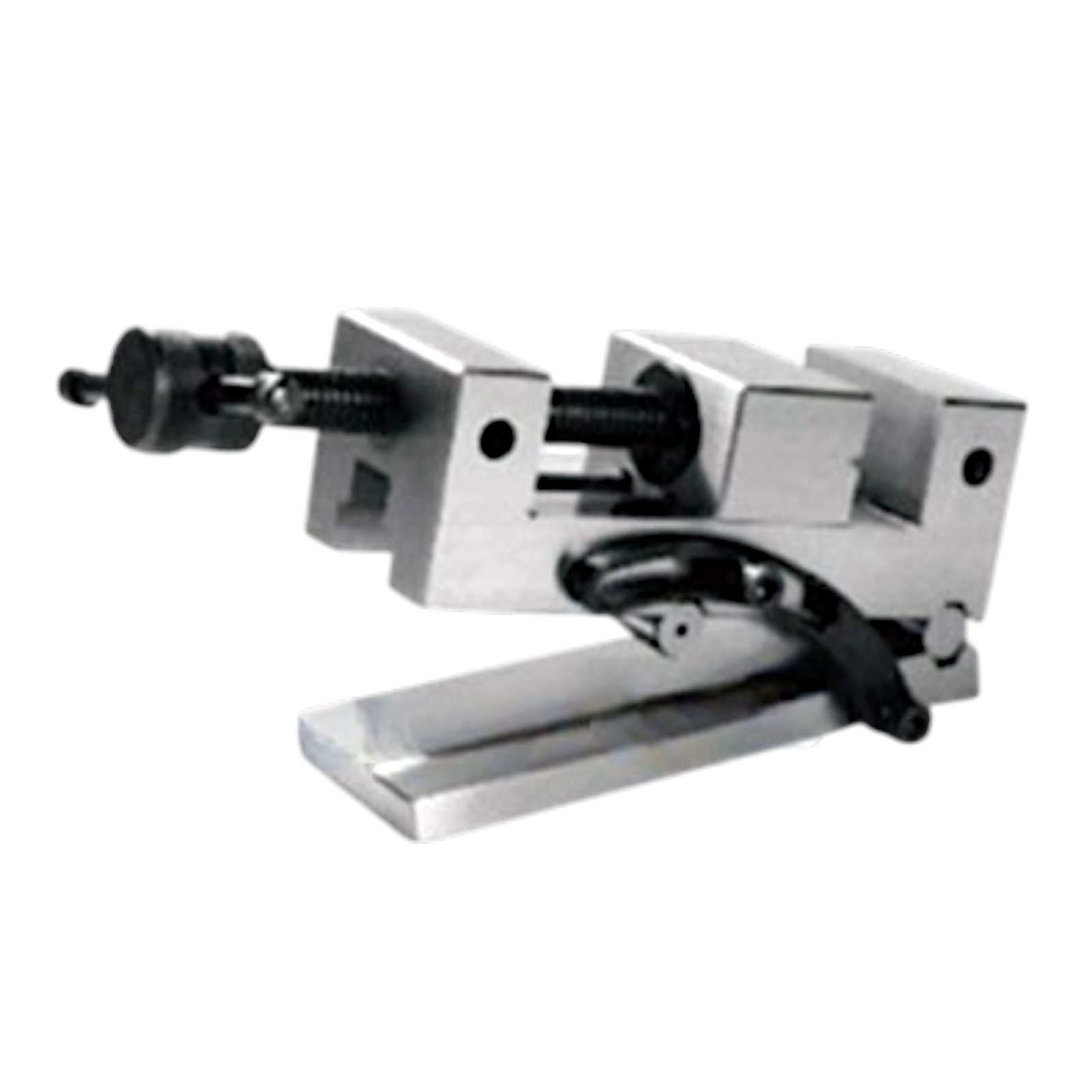

Precision Sine Vices – Lead Screw Type
Description
- Hardened & Tempered to 52 -56 HRC
- Angle setting accuracy within ± 5 seconds.
- All side Parallelism and Squareness within ± 0.015 mm.
- Center distance of rollers within ±0.005 mm.
- A recess of exactly 2mm depth is provided on rest plate for setting up of very small angles with standard gauge blocks
ITEM
NO. | OVERALL
LENGTH | OVERALL
HEIGHT | OVERALL
WIDTH | JAW
DEPTH | MAX.
JAW OPENING | C.D.
OF ROLLERS |
SPS-3048 | 205 | 100 | 73 | 40 | 85 | 150 |
