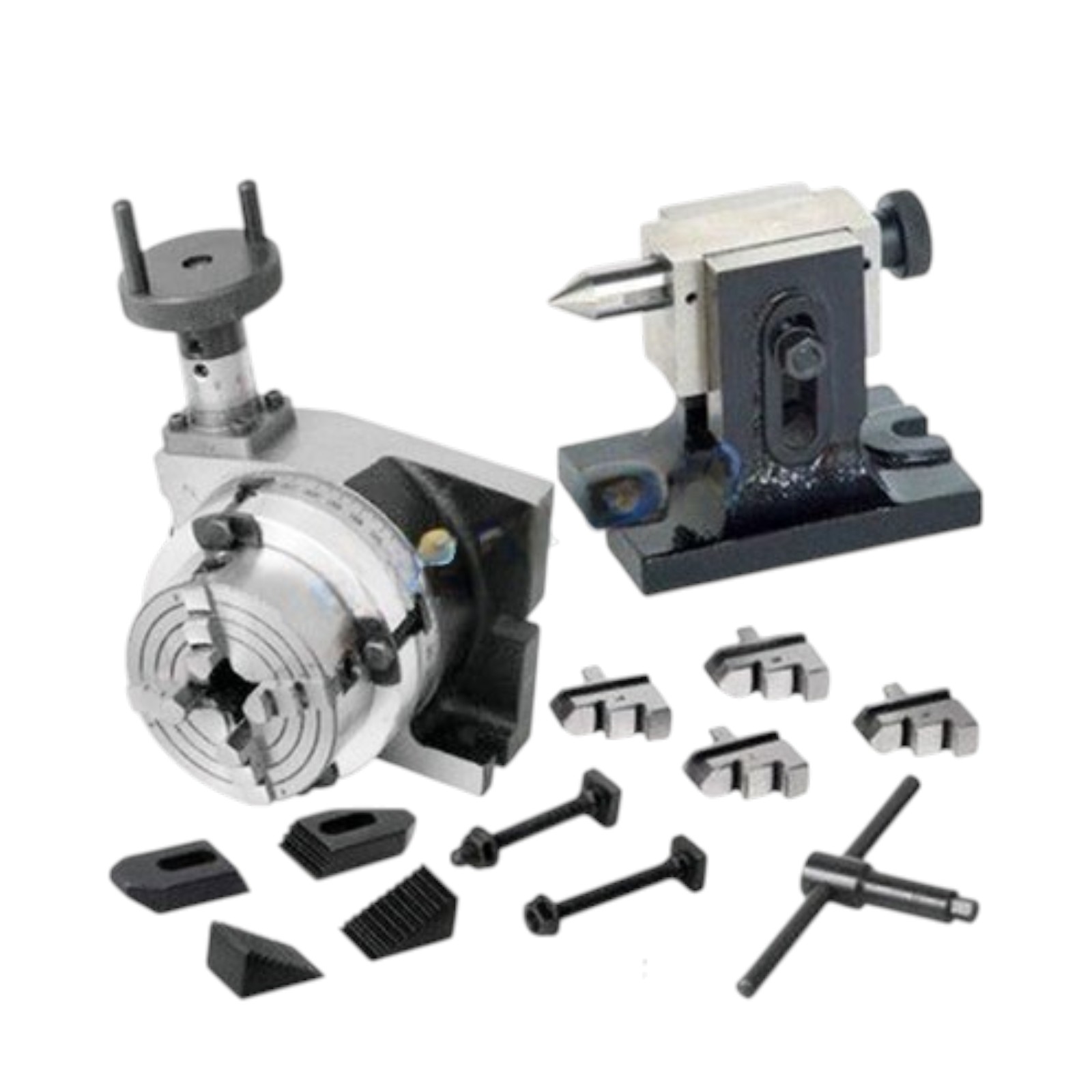

Rotary Table 4″ (100 mm) with Tailstock, Clamping Kit & Chuck
Description
Rotary Tables 4″ (100 mm) with Tailstock, Clamping Kit & Chuck
- Chuck Diameter 4″ (100 mm)
- Vertical Center Height 2-1/16″ (Approx. 51 mm)
- Hand Wheel can be set to zero
- Hand Wheel graduated in 10 min divisions
- Caliberated in 5 min increment around the rim
- 36 : 1 ratio
- Can be used both Horizontally & Vertically.
4 Jaws (70 mm) Independent Chuck
- Mounts smoothly over the backplate (provided)

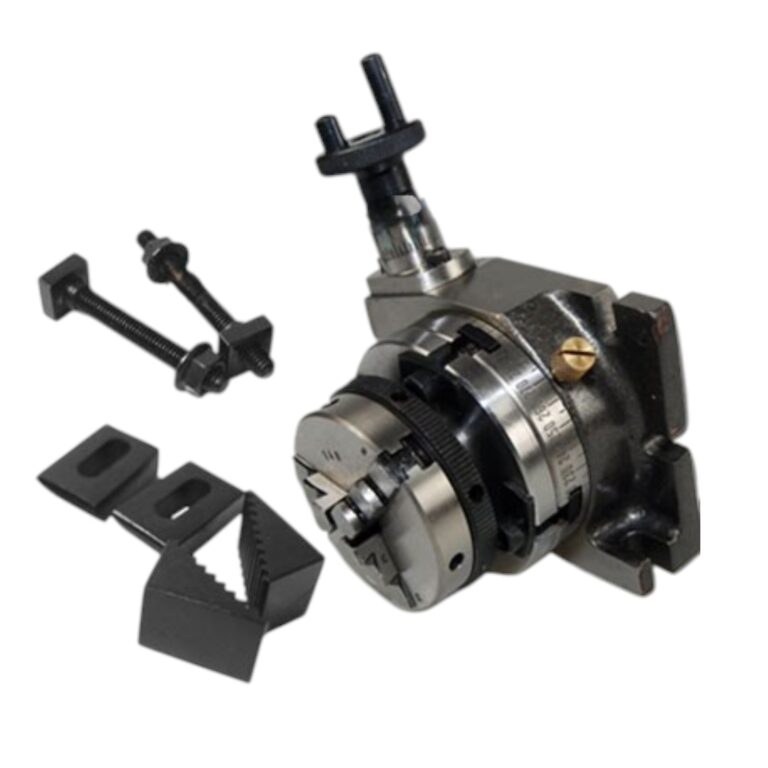

Clamping Kit (M6)
- set of suitable T Nuts, Studs and Clamps
- 2 x Slotted Clamps (40 mm x 20 mm)
- 2 x 6 mm Studs 50 mm long with nuts
- 2 x Step Clamps 25 x 15 mm

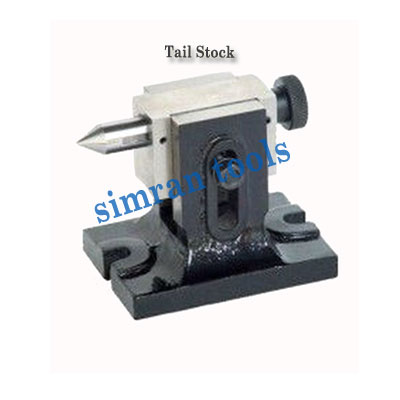

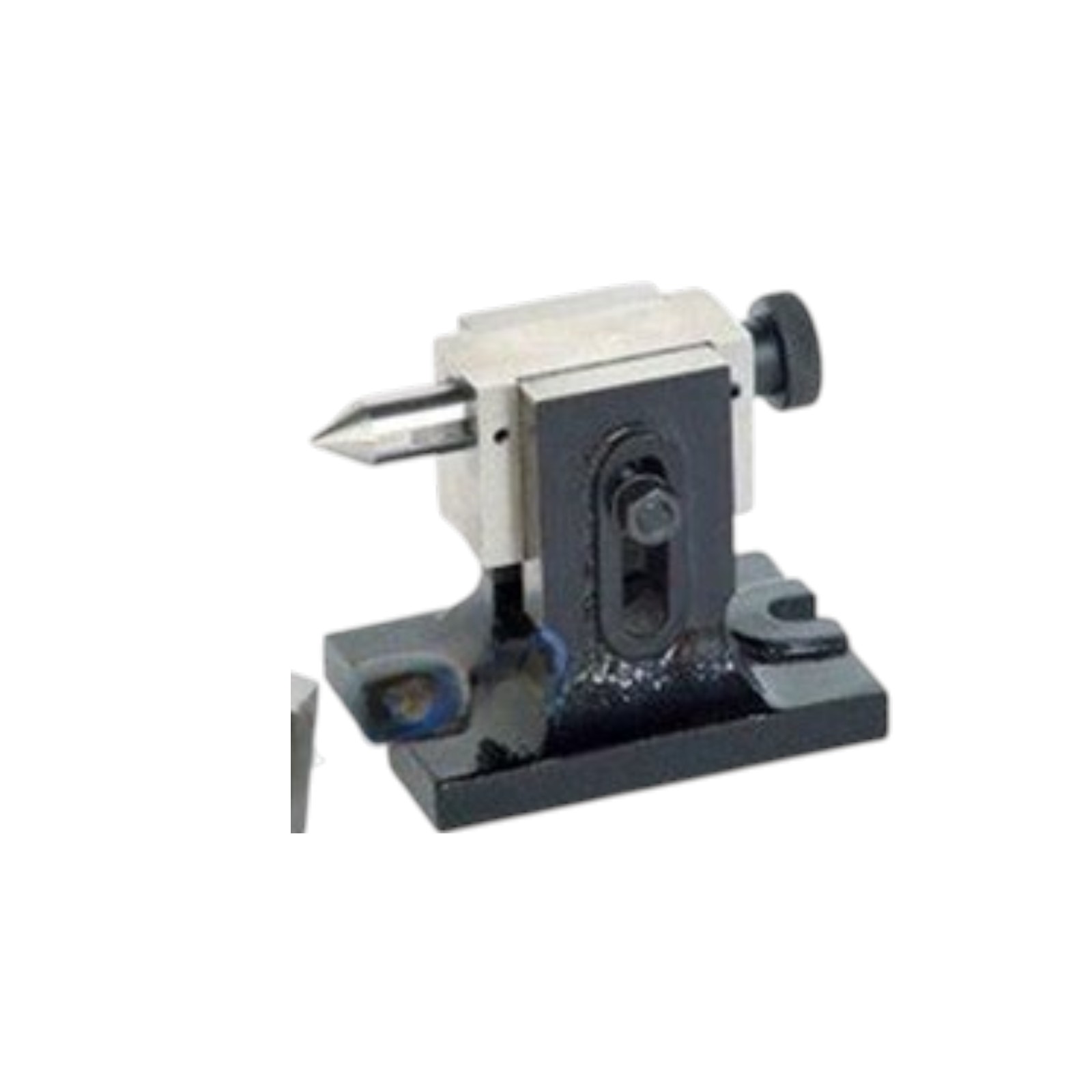

Tailstock
- This adjustable Tail Stock is suitable for all the 4″ (100 mm) Rotary Tables
- Fully adjustable from 2-1/4″ – 3-1/2″
