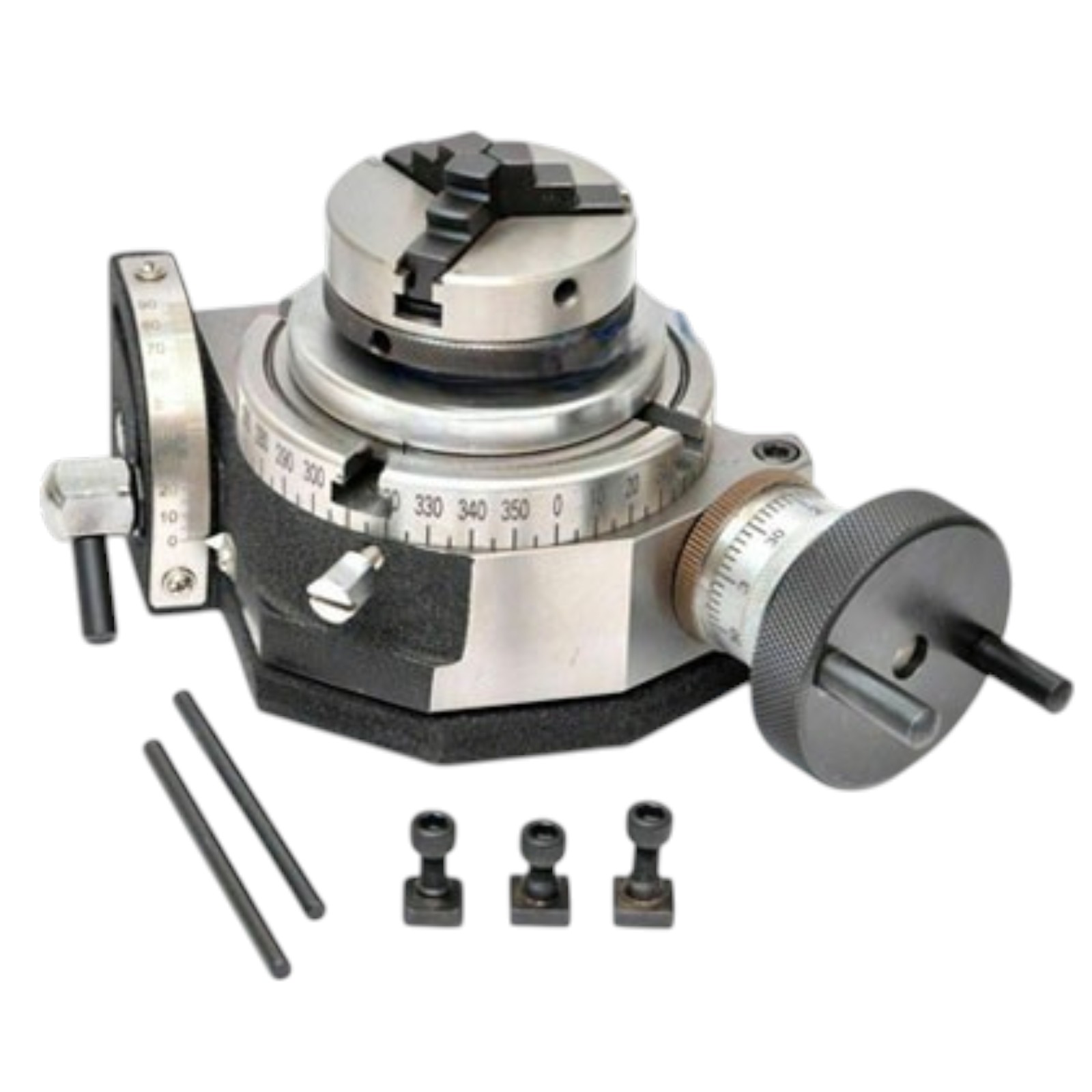

Rotary Table 4″ (100mm) Tilting with 65mm Lathe Chuck
Description
Rotary Tables 4″ (100mm) Tilting with (65mm) 3 Jaws Lathe Chuck
- Table Height 66 mm in flat position
- Table graduated 360º degrees in 5 degree divisions
- Base is 145 mm x 126 mm with two 10 mm mounting holes separated by 110 mm
- The table tilts upto 90º and can be used anywhere
- Chuck Diameter 65 mm
- Vertical Center Height 2-1/16″
- Hand Wheel can be set to Zero (approx 51 mm)
- Hand Wheel Graduate in 10 min divisions
- Calibrated in 5 min increment around the rim
- 36 : 1 ratio
- Can be used Horizontally & Vertically
Self Centering 3 Jaws (65mm) Lathe Chuck (Provided) with backplate and T Nuts.
