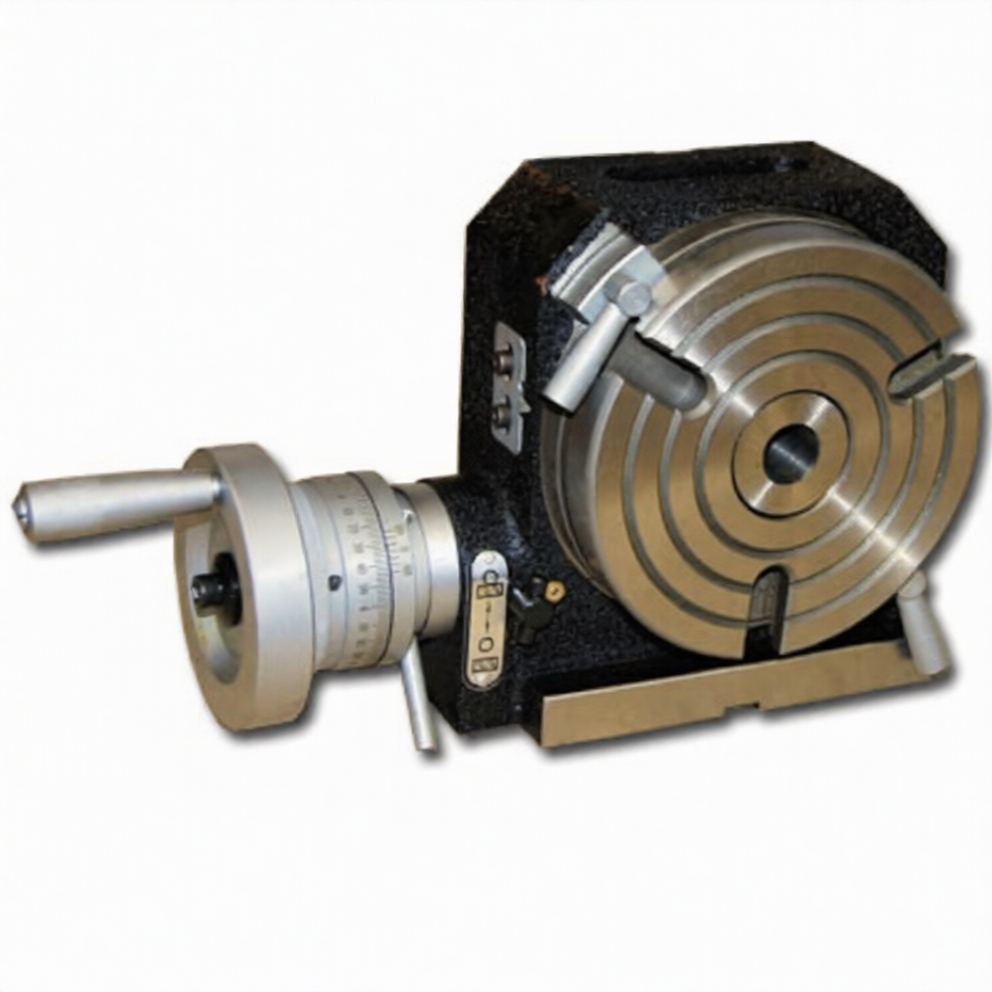

Rotary Table 5″/ 125 mm (Vertical & Horizontal)
Description
Rotary Tables 5″ / 125 mm ( Vertical & Horizontal)
- Table Diameter 5″ (127 mm)
- Overall Height in vertical position 90 mm
- Worm Gear Ratio 1:72 which means that the 1 handle rotation shall turn the table by 5º
- T Stot width (Top of the table) : 12 mm
- Table Graduated 360º, Vernier Scale is calibrated to 10 seconds.
- Center Bore of the Table 2 MT
- Can be clamped in Horizontal as well as vertical.
