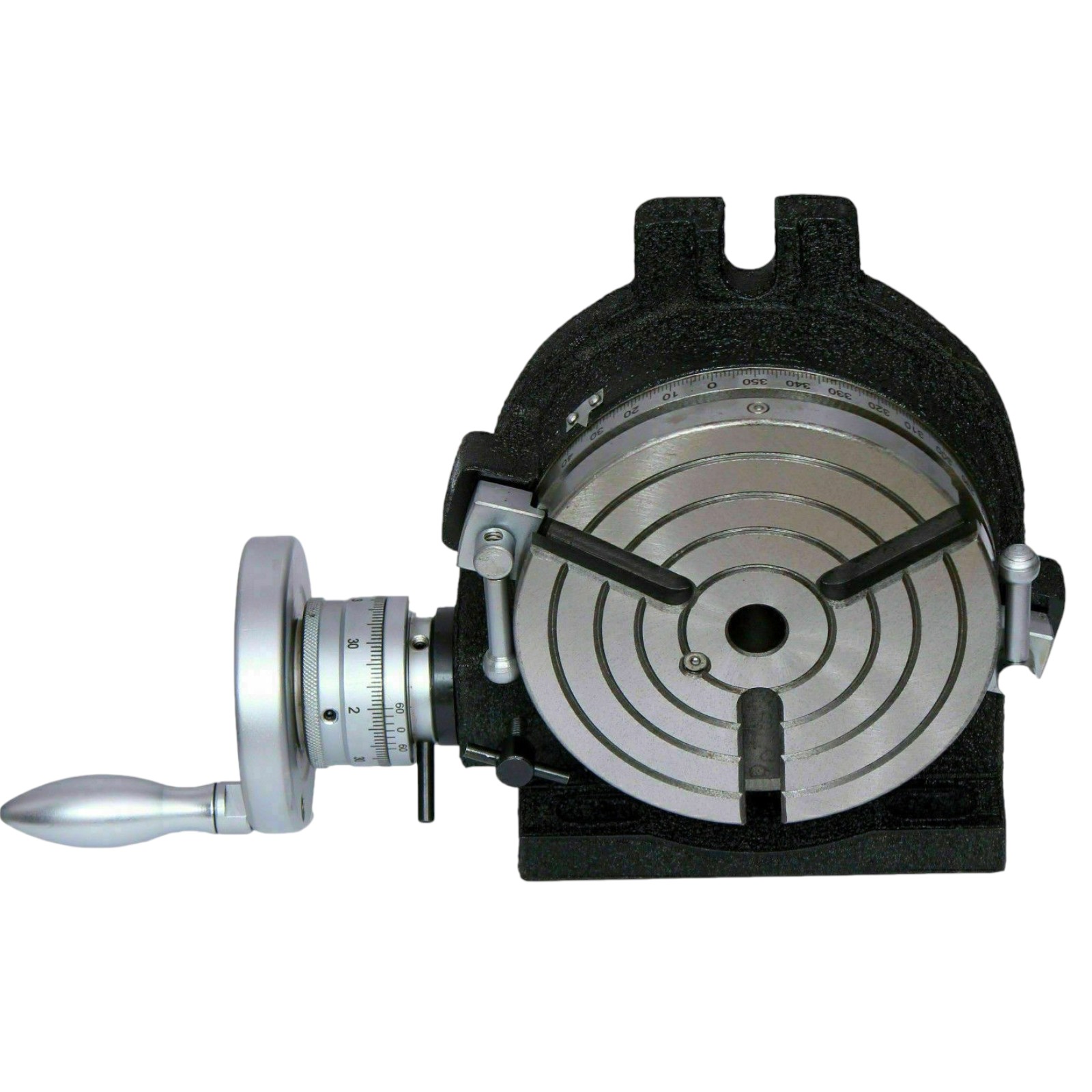

Rotary Table (HV6 Type)

Rotary Tables HV6 Type

• Table Diameter 6″ (150 mm)
• Overall Height 3-1/4″ (80 mm)
• Center Height in vertical position 105 mm
• Center Bore MT-2
• Gear Ratio 90 : 1
• T Slot 16mm
• Horizontal Height apporx. 80 mm from Base to Top surface of Chuck
• Chrome Dials Graduated 360º around its circumference.
• Also available in HV8 : 200 mm
