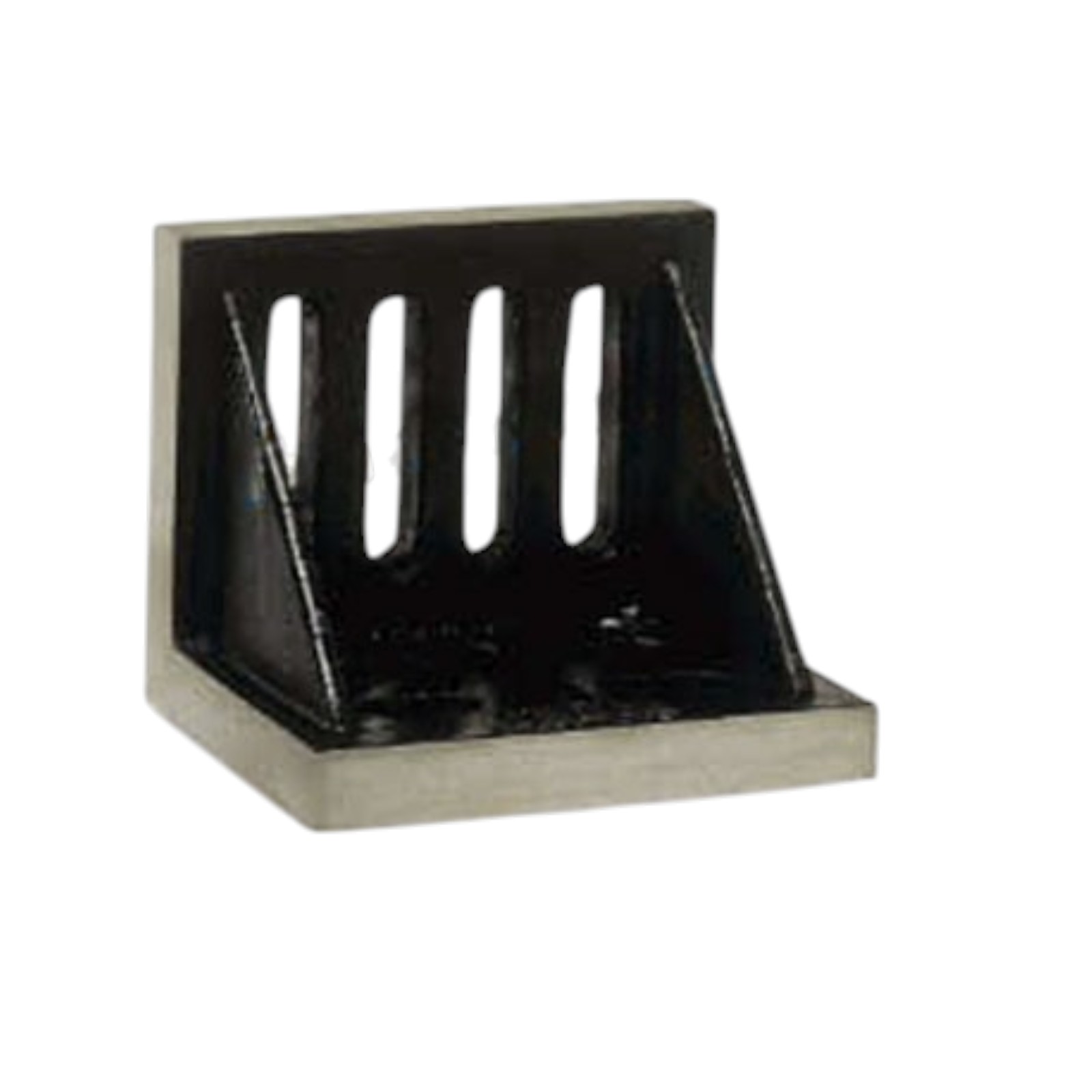

Slotted Angle Plates
Description
- Made of high Quality Seasoned Castings.
- Precision ground sides & ends.
- Available both in open End and Webbed End Styles.
| WEBBED END ITEM CODE NO. | OPEN END ITEM CODE NO. | LENGHT | WIDTH | HEIGHT | |||
|---|---|---|---|---|---|---|---|
| SSA-1561 | --- | 3" | 75 mm | 2-1/2" | 63 mm | 2" | 50 mm |
| SSA-1562 | --- | 3-1/2" | 90 mm | 3 | 75 mm | 2-1/2" | 63 mm |
| SSA-1563 | SSA-1573 | 4-1/2" | 115 mm | 3-1/2" | 90 mm | 3" | 75 mm |
| SSA-1564 | SSA-1574 | 6" | 150 mm | 5" | 125 mm | 4-1/2" | 115 mm |
| SSA-1565 | SSA-1575 | 7" | 175 mm | 5-1/2" | 140 mm | 4-1/2" | 115 mm |
| SSA-1566 | SSA-1576 | 8" | 200 mm | 6" | 150 mm | 5" | 125 mm |
| SSA-1567 | SSA-1577 | 9" | 225 mm | 7" | 175 mm | 6" | 150 mm |
| SSA-1568 | SSA-1578 | 10" | 250 mm | 8" | 200 mm | 6" | 150 mm |
| SSA-1569 | SSA-1579 | 12" | 300 mm | 9" | 225 mm | 8" | 200 mm |
