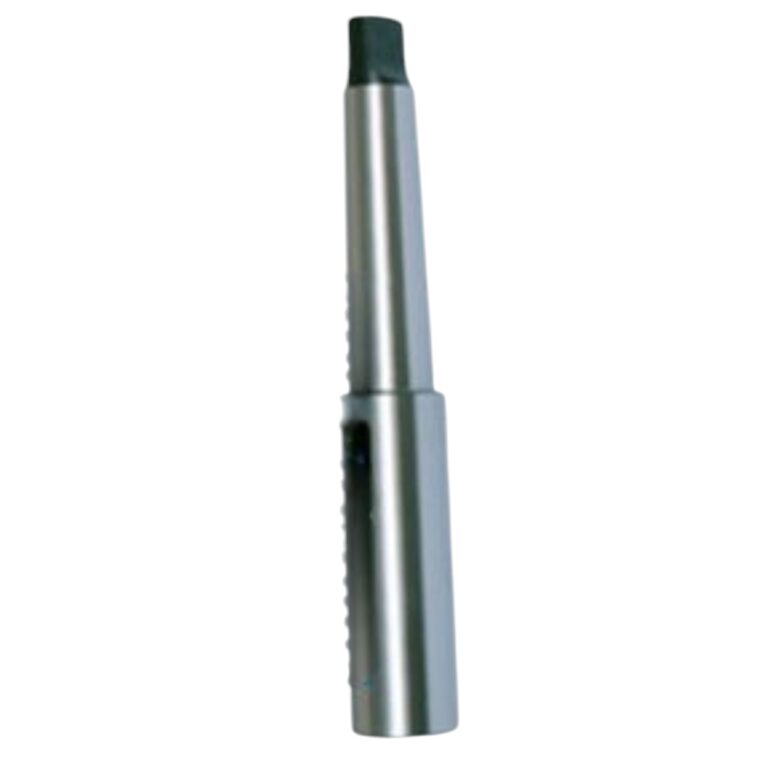

Extension Drill Sleeve- Extension Sockets
May 1, 2019
Live Center / Revolving Center (Triple Bearing)
May 1, 2019

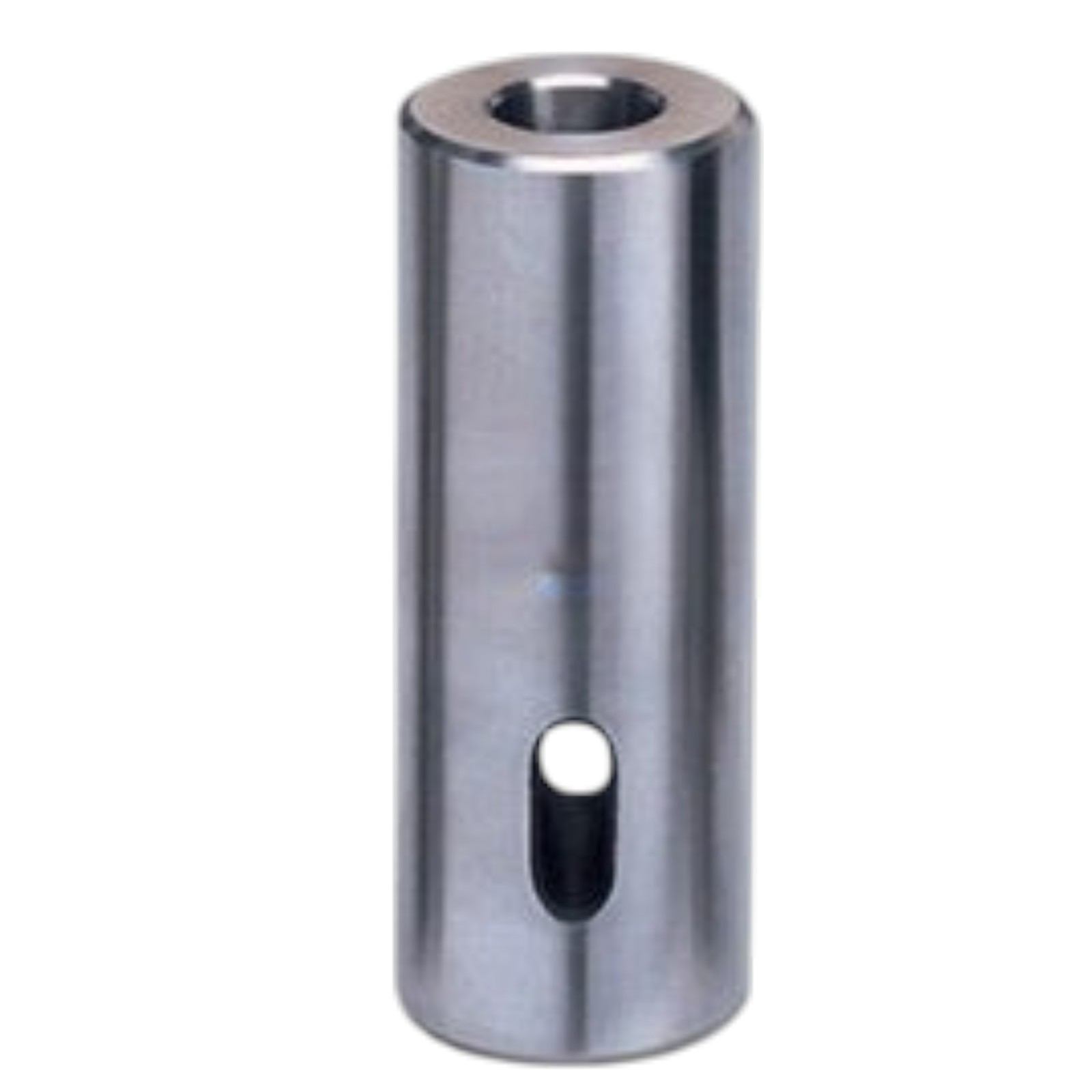

Solid Sockets- Turret Sockets
Description
Solid sockets / turret sockets allows tools with morse taper shank to be held in a chuck, tailstock turret, etc. Heat treated.With Morse Taper Hole and round exterior.
- Straight shank with morse taper hole.
- As well as Hardened & ground.
- likewise, for holding MT shank tools in turrets & automatic lathes.
| ITEM NO. | MORSE TAPER INSIDE HOLE | SHANK DIA. | SHANK LENGTH | ||
|---|---|---|---|---|---|
| STS-0280 | MT 1 | 1" | 25 mm | 3-1/2" | 88 mm |
| STS-0281 | MT 1 | 1-1/4" | 32 mm | 3-1/2" | 88 mm |
| STS-0282 | MT 1 | 1-1/2" | 38 mm | 3-1/2" | 88 mm |
| STS-0283 | MT 2 | 1" | 25 mm | 4" | 100 mm |
| STS-0284 | MT 2 | 1-1/4" | 32 mm | 4" | 100 mm |
| STS-0285 | MT 2 | 1-1/2" | 38 mm | 4" | 100 mm |
| STS-0286 | MT 2 | 1-3/4" | 44 mm | 4" | 100 mm |
| STS-0287 | MT 2 | 2" | 50 mm | 4" | 100 mm |
| STS-0288 | MT 3 | 1-1/4" | 32 mm | 4-3/4" | 120 mm |
| STS-0289 | MT 3 | 1-1/2" | 38 mm | 4-3/4" | 120 mm |
| STS-0290 | MT 3 | 1-3/4" | 44 mm | 4-3/4" | 120 mm |
| STS-0291 | MT 3 | 2" | 50 mm | 4-3/4" | 120 mm |
| STS-0292 | MT 4 | 1-1/2" | 38 mm | 6" | 150 mm |
| STS-0293 | MT 4 | 1-3/4" | 44 mm | 6" | 150 mm |
