Parting Tool Holders- cut off tool holders
|
|
esp |
Porta Herramientas |
|
fr |
Porte – Outils |
|
de |
Werkzeughalter |
|
Description

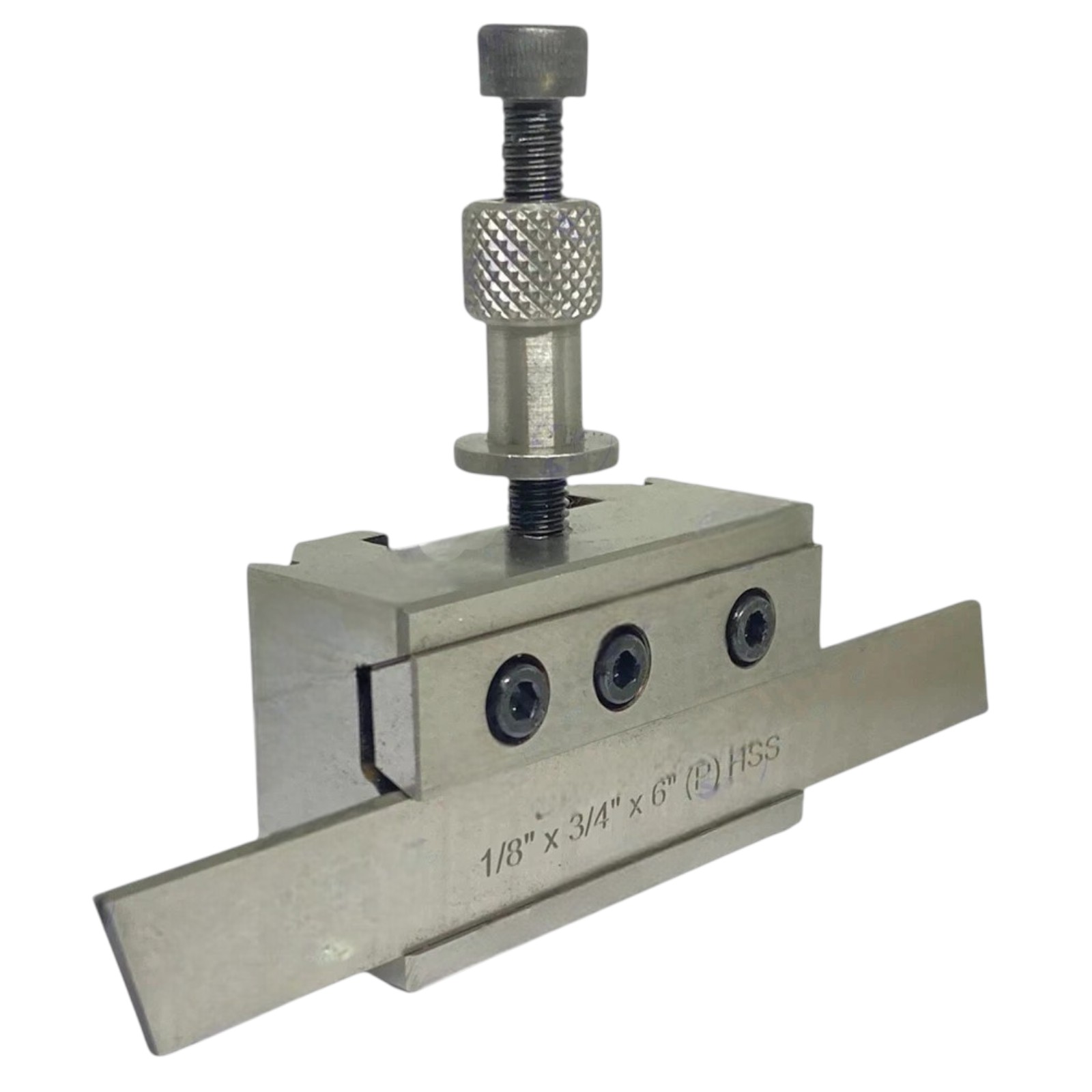

Parting( as the name suggests to cut-off something). Parting Tool Holders uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length.
- One-piece construction with 100% clamping power.
- Can be used on both front and rear tool post of the cross line.
- Holds and guides the bevelled blade in a way that it ensures equal clearance on both sides.
- Moreover, Supplied without blade.
ITEM NO. | BLADE SIZE | LENGTH | HEIGHT | WIDTH | DEPTH |
SPT-0840 | 1/2" x 3/32" | 2-3/4" | 13/16" | 1/2" | 1/2" |
SPT-0841 | 5/8" x 3/32" | 2-3/4" | 13/16" | 1/2" | 9/16" |
SPT-0842 | 3/4" x 1/8" | 2-3/4" | 13/16" | 19/32" | 11/16" |
