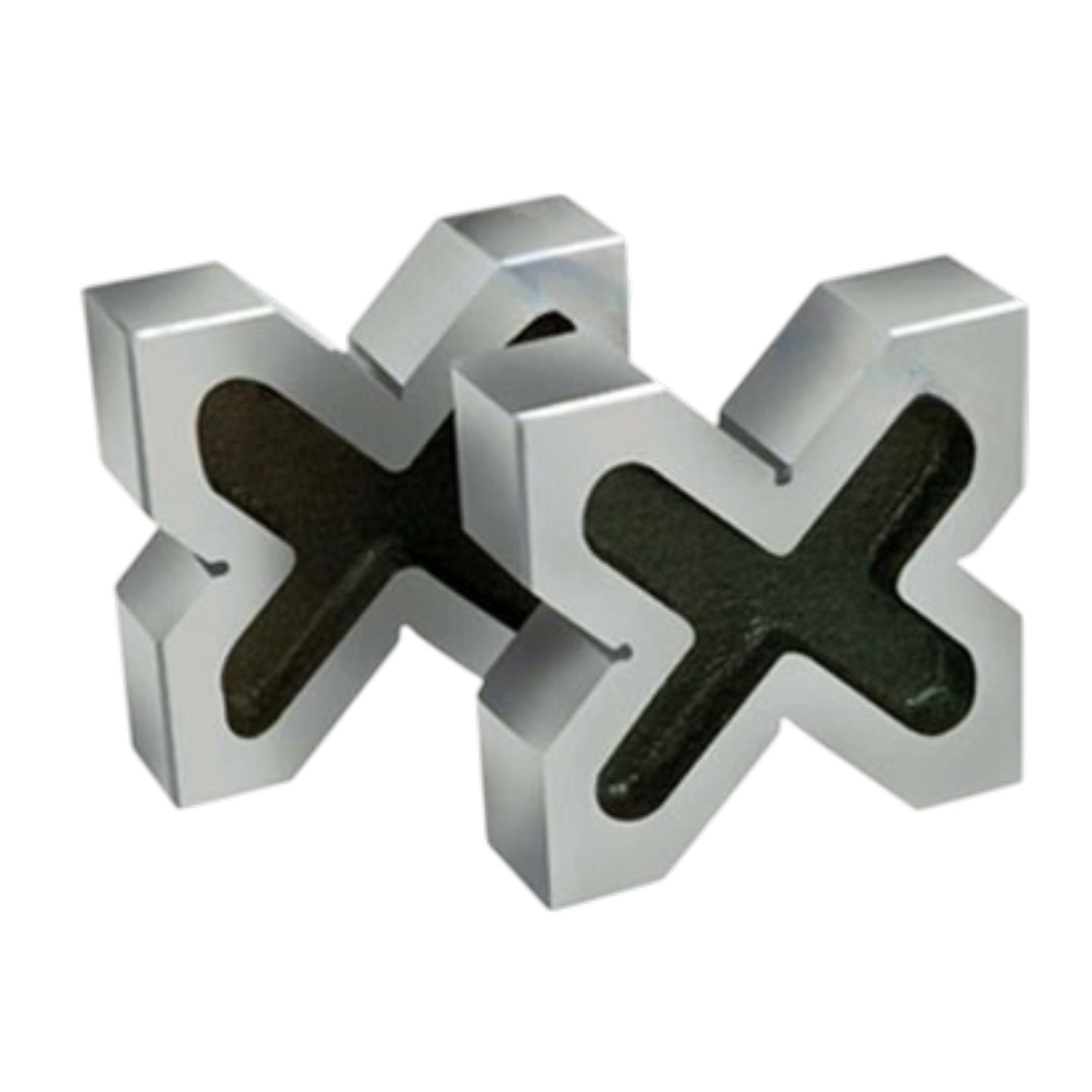

V Blocks Quadruple
Description
- Made from seasoned closed grained cast Iron.
- Universal V-Block consisting of four different size grooves.
- Supplied in Pairs.
| ITEM NO. | LENGTH | HEIGHT | THICKNESS | TH OF VEE | ||||
|---|---|---|---|---|---|---|---|---|
| SBQ-1301 | 3-3/4" | 95 mm | 2-3./4" | 70 mm | 1-3/8" | 35 mm | 3/4"x1-3/16"x1-9/16"x2" | 20mm x 30mm x 40mm x 50mm |
| SBQ-1302 | 4" | 100 mm | 4" | 100 mm | 1-3/16" | 30 mm | 3/4"x1-3/16"x1-9/16"x2" | 20mm x 30mm x 40mm x 50mm |
| SBQ-1303 | 4-3/4" | 120 mm | 4-3/4" | 120 mm | 1-3/8" | 35 mm | 1-3/16"x1-9/16"x2"x2-3/8" | 30mm x 40mm x 50mm x 60mm |
| SBQ-1304 | 4-3/4" | 120 mm | 4-3/4" | 120 mm | 2-3/8" | 60 mm | 1-3/16"x1-9/16"x2"x2-3/8" | 30mm x 40mm x 50mm x 60mm |
| SBQ-1305 | 6" | 150 mm | 6" | 150 mm | 3" | 75 mm | 1-9/16"x2"x2-3/8"x2-3/4" | 40mm x 50mm x 60mm x 70mm |
| SBQ-1306 | 8" | 200 mm | 8" | 200 mm | 4" | 100 mm | 2-3/8"x2-3/4"x3-5/32"x4" | 60mm x 70mm x 80mm x 100mm |
