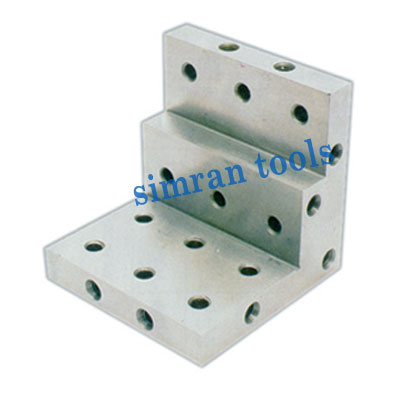

Stepped Angle Plates
October 31, 2019

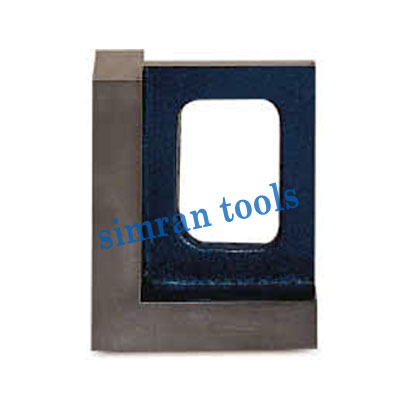

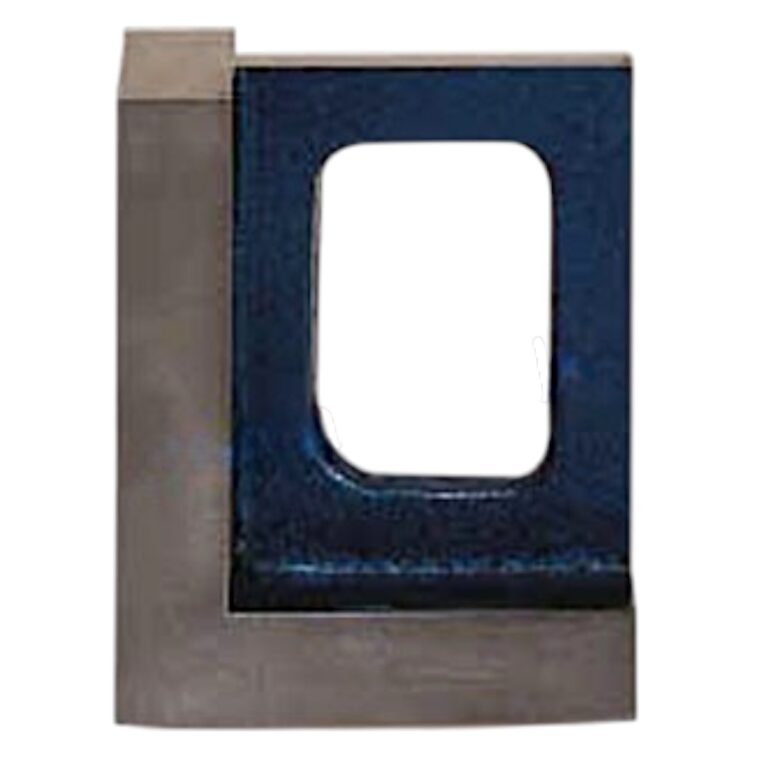

Right Angle Plates
October 31, 2019

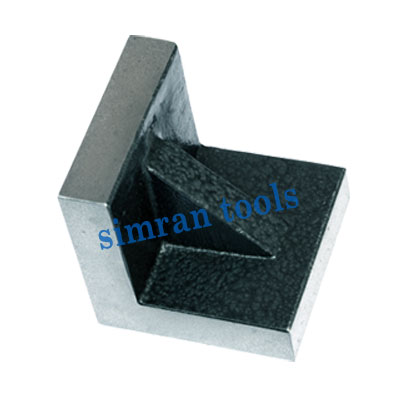

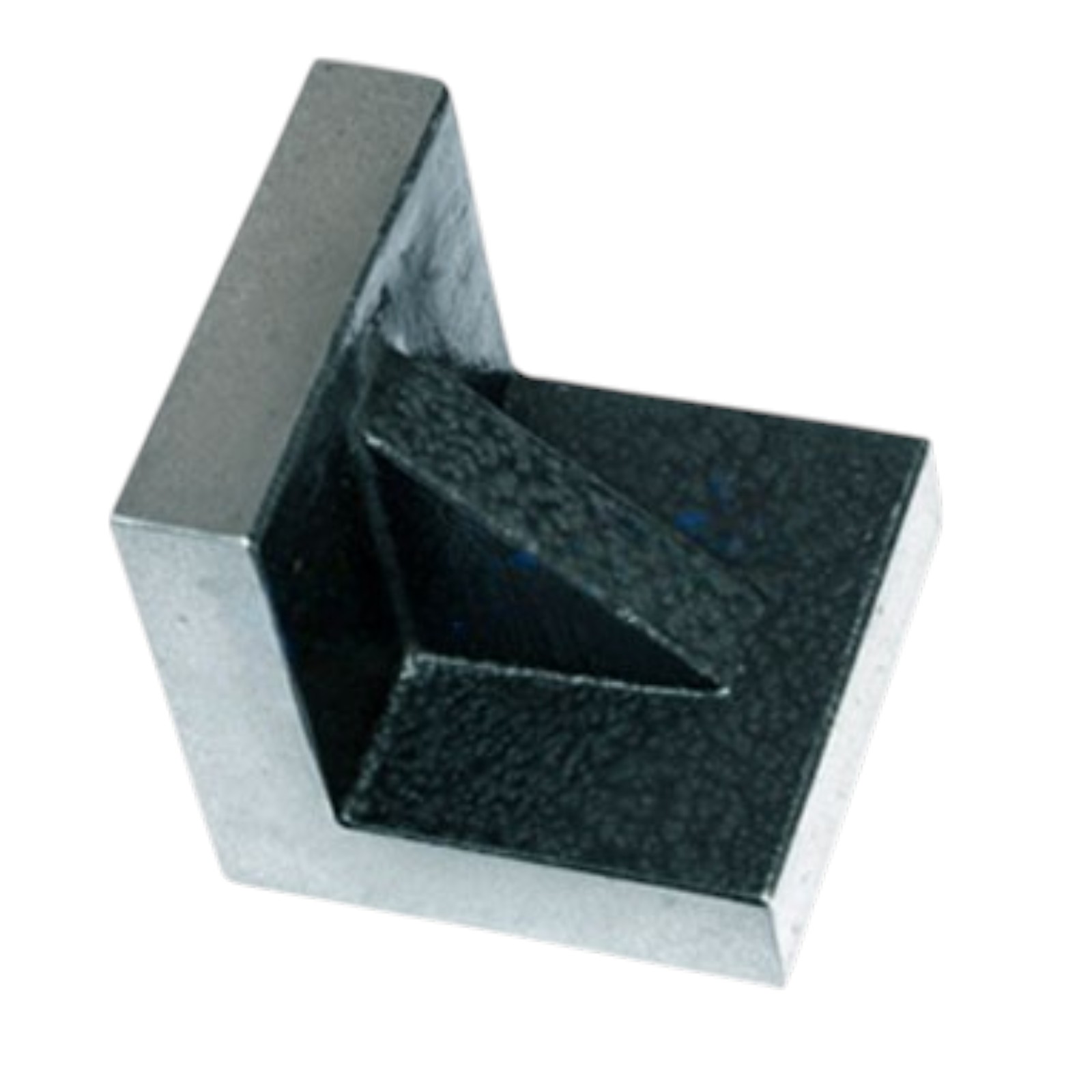

Solid Angle Plates
Description
- Made from High quality Casting.
- Castings are properly seasoned to avoid distortion.
- Precision ground sides and Ends.
- Flatness and Squareness within .002″ Per 6″ for Machined finish and .001″ per 6″ for Ground finish.
| MACHINED FINISH ITEM CODE NO. | PRECISION GROUND FINISH ITEM CODE NO. | NO. ITEM CODE NO.OF RIBS | SIZE | |
| SAG-1601 | SAG-1611 | 0 | 1" x 1" x 1" | 25 mm x 25 mm x 25 mm |
| SAG-1602 | SAG-1612 | 1 | 2" x 2" x 2" | 50 mm x 50 mm x 50 mm |
| SAG-1603 | SAG-1613 | 1 | 3" x 3" x 3" | 75 mm x 75 mm x 75 mm |
| SAG-1604 | SAG-1614 | 1 | 4" x 4" x 4" | 100 mm x 100 mm x 100 mm |
| SAG-1605 | SAG-1615 | 1 | 5" x 5" x 5" | 125 mm x 125 mm x 125 mm |
| SAG-1606 | SAG-1616 | 1 | 6" x 6" x 6" | 150 mm x 150 mm x 150 mm |
| SAG-1607 | SAG-1617 | 2 | 8" x 8" x 8" | 200 mm x 200 mm x 200 mm |
| SAG-1608 | SAG-1618 | 2 | 10" x 10" x 10" | 250 mm x 250 mm x 250 mm |
| SAG-1609 | SAG-1619 | 2 | 12" x 12" x 12" | 300 mm x 300 mm x 300 mm |
